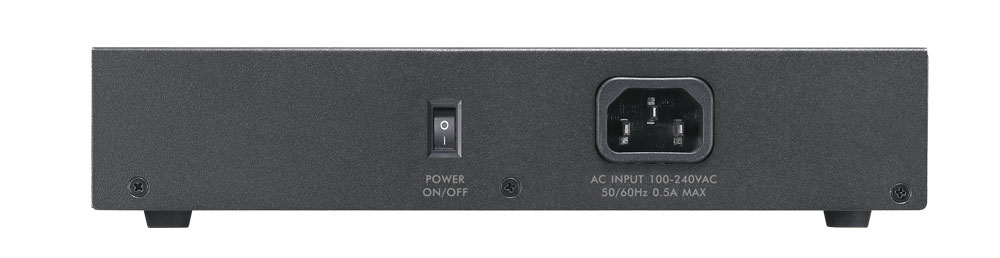

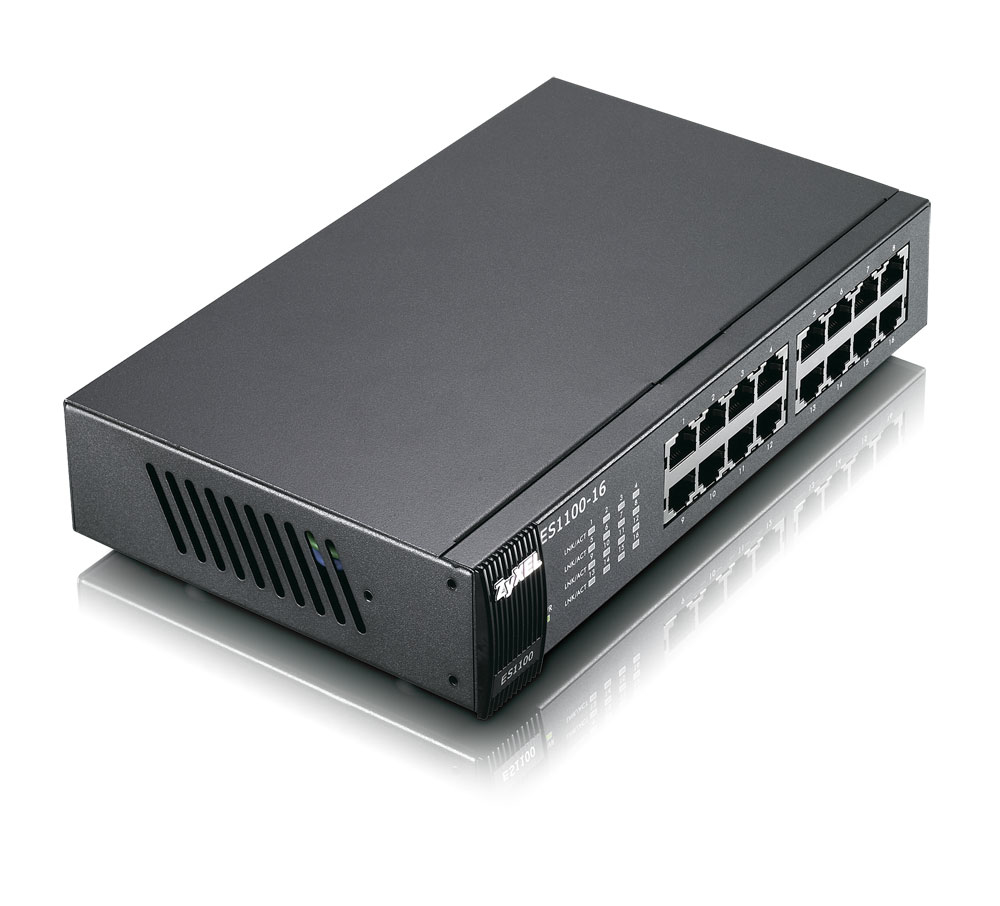

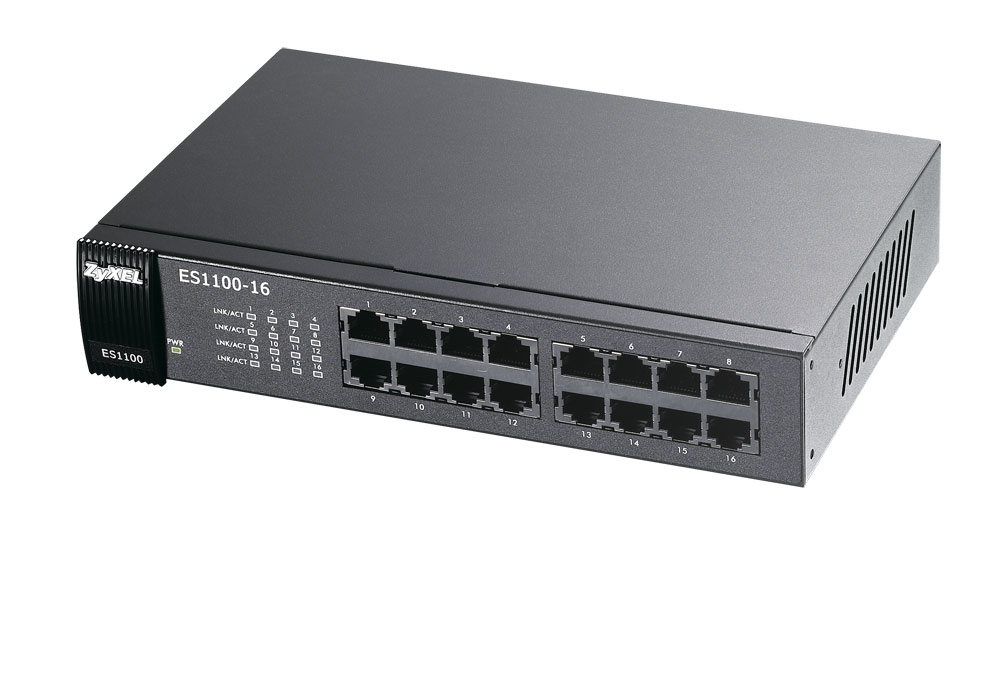

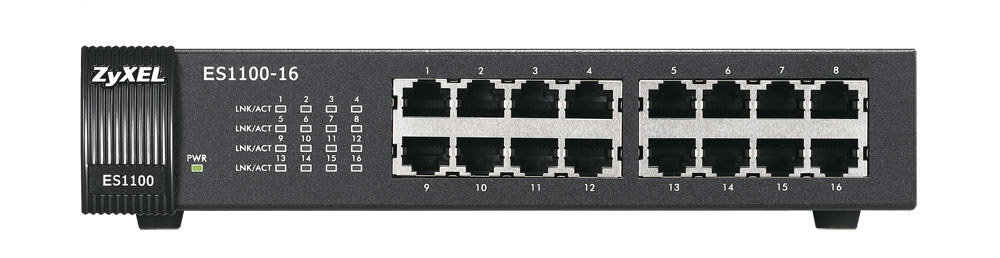

Zyxel ES1100-16 Unmanaged Black
Model ES1100-16EAN 7605591193488
34 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight770 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 770 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES1100-16
- Part numbers
- ES1100-16, ES1100-16-EU01F, ES1100-16-GB01F
- EAN / UPC
- 7605591193488, 4718937562237, 5052916480815, 320127538232 +3 more
- Also known as
- Zyxel ES1100-16 Unmanaged Black
Specifications
34 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-T, 10BASE-T |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 3.2 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.256 MB |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Safety | EN 60950-1, IEC 60950-1, RoHS |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 216 x 133 x 42 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Dimensions (W x D x H) (imperial) | 215.9 x 133.1 x 41.9 mm (8.5 x 5.24 x 1.65") |
| Weight (imperial) | 0.771 kg (1.7 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 32 - 122 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 770 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 325 x 227 x 71 mm |
| Package weight | 1.59 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part15 (Class A), CE EMC (Class A) |
