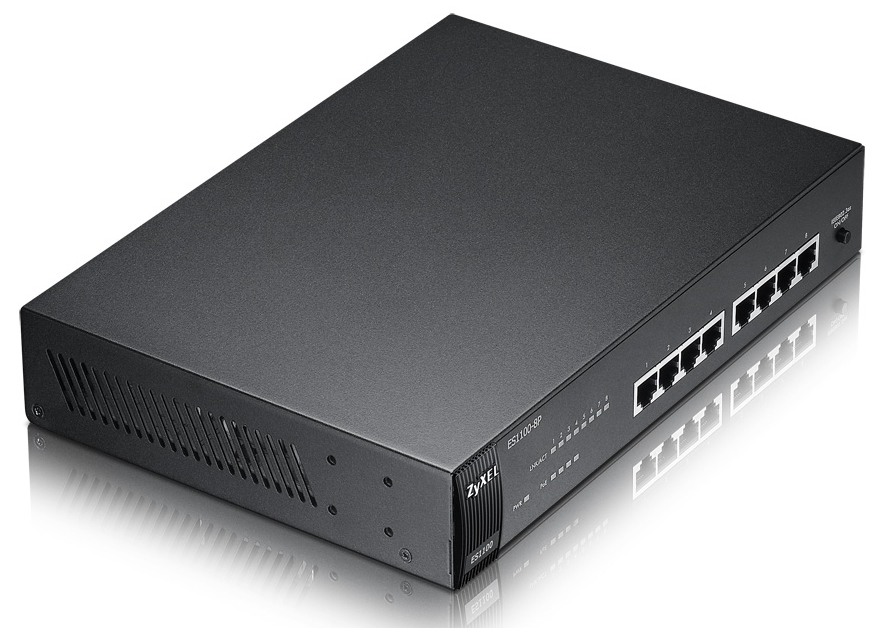

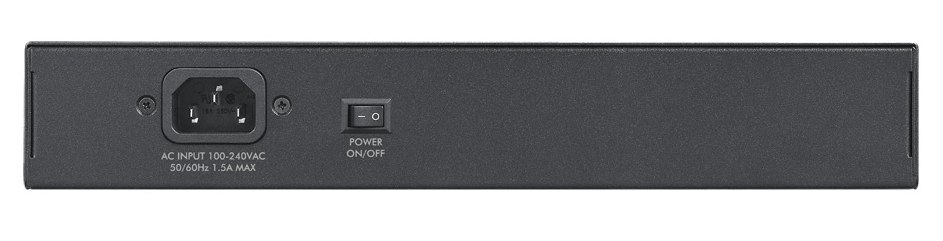

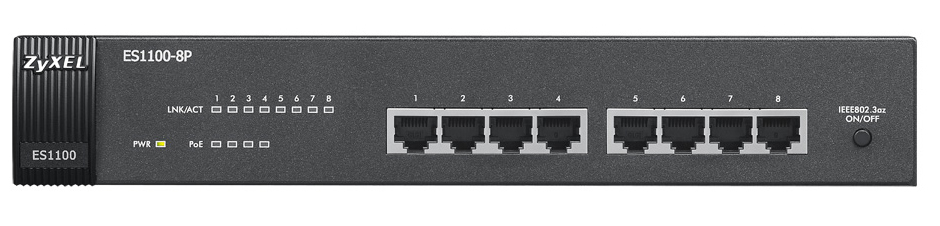

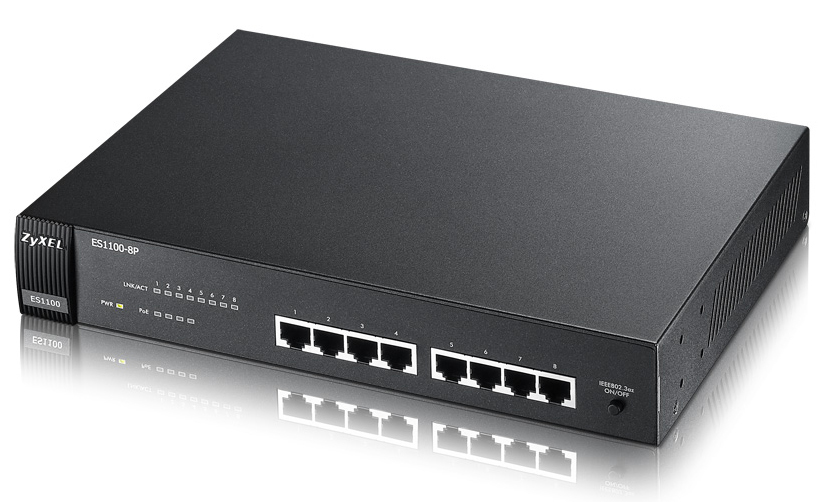

Zyxel ES1100 Unmanaged Power over Ethernet (PoE) 1U Black
Model ES1100Part no. ES1100-8P-EU0102FEAN 5054629036198
55 specifications
- ConnectivityWired
- Type1U
- Weight2.2 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Connectivity
- Wired
- Type
- 1U
- Weight
- 2.2 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES1100
- Part number
- ES1100-8P-EU0102F
- EAN / UPC
- 5054629036198, 132018280393, 168141533204, 172302746365 +7 more
- Also known as
- Zyxel ES1100 Unmanaged Power over Ethernet (PoE) 1U Black
Specifications
55 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Fast Ethernet (copper) ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 0 |
| SFP/SFP+ slots quantity | 0 |
| Fiber ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| ExpressCard slot | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Link budget | 40 dB |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Supported data transfer rates | 10, 100 |
| Switching capacity | 1.6 Gbit/s |
| Jumbo frames support | No |
| Packet buffer memory | 0.096 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | LAN, PoE, Power |
| Safety | RoHS |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 4 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 64 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 262 x 184 x 41 mm |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Fan | 0 |
| Power LED | Yes |
| Wi-Fi | No |
| Connectivity LEDs | 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 32 - 122 °F |
| Relative humidity | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 262 mm |
| Depth | 184 mm |
| Height | 41 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Certificates
| Specification | Value |
|---|---|
| Certification | Safety - EN 60950-1 - IEC 60950-1 - EU RoHS compliant Emission (EMC) - FCC Part 15 (Class A) - CE EMC (Class A) |
