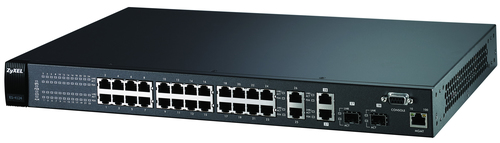

Zyxel ES-4124 Managed L3+ Black
Model ES-4124Part no. ZYXES-4124
39 specifications
- Speed1 Gbit/s
- Weight4 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Port mirroringYes
Overview
- Speed
- 1 Gbit/s
- Weight
- 4 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Port mirroring
- Yes
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES-4124
- Part number
- ZYXES-4124
- Also known as
- Zyxel ES-4124 Managed L3+ Black
Specifications
39 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 12.8 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP |
| Supported network protocols | RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, OSPFv2, static IP routing |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | Telnet CLI, SNMP v1, v2, v3 |
| Dimensions (WxDxH) | 438 x 270 x 44.45 mm |
| Packet transfer speed | 1488000pps |
| Power requirements | 100-240VAC, 50/60Hz |
| I/O ports | 2 x 1000Base-T, RJ-45 2 x dual personality GbE(RJ-45 or SFP open slots) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4 kg |
