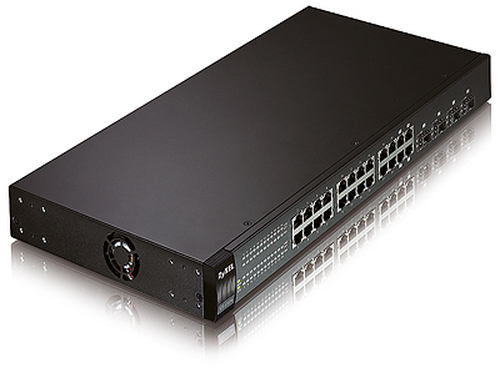

Zyxel ES-4024 network switch Managed L3 Black

Zyxel ES-4024 network switch Managed L3 Black

Model ES-4024EAN 4718937000760

43 specifications
  • Speed0.1 Gbit/s
  • ConnectivityWired
  • Weight5.4 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
See all specifications

Overview

Speed
0.1 Gbit/s
Connectivity
Wired
Weight
5.4 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Brand
Zyxel
Model
ES-4024
Part number
ES-4024
EAN / UPC
4718937000760
Also known as
Zyxel ES-4024 network switch Managed L3 Black

Specifications

43 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Console portRS-232
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Number of VLANs4095

Data transmission

MAC address table16000 entries
Supported data transfer rates10/100 Mbps
Switching capacity12.8 Gbit/s
Maximum data transfer rate0.1 Gbit/s

Security

DHCP featuresDHCP server
IGMP snoopingYes
MAC address filteringYes

Multicast features

Multicast supportYes

Protocols

Management protocolsTelnet, HTTP, SNMP. FTP
Supported network protocolsTCP, UDP

Design

StackableYes
Product colourBlack
SafetyUL 60950, CSA C22.2 No. 60950 (Canada), EN60950

Performance

Firmware upgradeableYes

Power

Power consumption (typical)60 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Dimensions (WxDxH)440 x 300 x 44.5 mm
Connectivity technologyWired
Networking featuresEthernet, Fast Ethernet
Power requirementsAC 100 - 240V 50/60Hz
Wi-FiNo
Connectivity LEDsYes
Electromagnetic emissionsFCC Part 15 Class A, EN55022 Class A, CE

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Weight5.4 kg
