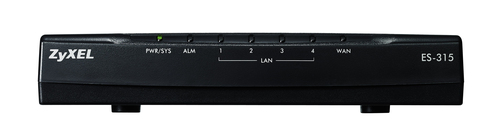

Zyxel ES-315 Managed L2

Zyxel ES-315 Managed L2

Model ES-315Part no. 91-010-154001BEAN 4718937506033

28 specifications
  • Speed0.1 Gbit/s
  • ConnectivityWired
  • Weight227 g
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity5
  • 10G supportNo
See all specifications

Overview

Speed
0.1 Gbit/s
Connectivity
Wired
Weight
227 g
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
5
10G support
No
Brand
Zyxel
Model
ES-315
Part number
91-010-154001B
EAN / UPC
4718937506033
Also known as
Zyxel ES-315 Managed L2

Specifications

28 specifications in 11 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportRFC1213, RFC1493, RFC1155 SMI, RFC2647

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5

Network

Networking standardsIEEE 802.1d, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
Rate limitingYes
Spanning tree protocolYes

Data transmission

MAC address table1000 entries
Supported data transfer rates10/100 Mbps
Maximum data transfer rate0.1 Gbit/s

Security

MAC address filteringYes

Design

StackableYes

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Management platformtelnet, SNMP v2c, ICMP, SSH/SSL
Dimensions (WxDxH)181.2 x 126.7 x 33.2 mm
Connectivity technologyWired

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 85%

Weight & dimensions

Weight227 g

Certificates

CertificationUL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1, FCC Part15 (Class B), CE EMC
