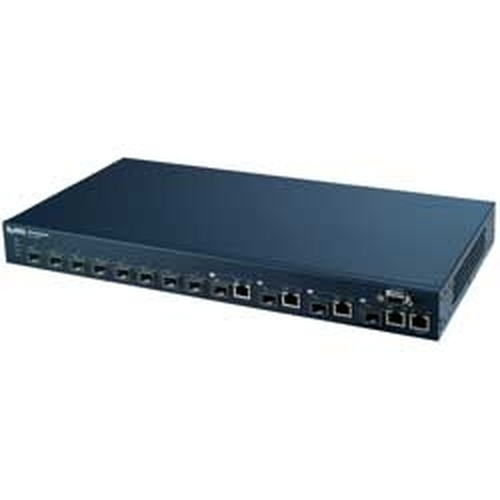

Zyxel ES-3124PWR Managed L2+ Power over Ethernet (PoE) Black

Zyxel ES-3124PWR Managed L2+ Power over Ethernet (PoE) Black

Model ES-3124PWRPart no. ZYXES-3124PWR

39 specifications
  • Speed1 Gbit/s
  • Weight6.8 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • Port mirroringYes
See all specifications

Overview

Speed
1 Gbit/s
Weight
6.8 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Port mirroring
Yes
Brand
Zyxel
Model
ES-3124PWR
Part numbers
ZYXES-3124PWR, ES-3124PWR, 3049, ZY-ES3124PWR
Also known as
Zyxel ES-3124PWR Managed L2+ Power over Ethernet (PoE) Black

Specifications

39 specifications in 11 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Gigabit Ethernet (copper) ports quantity2

Network

Networking standardsIEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af
Port mirroringYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
Number of VLANs256

Data transmission

MAC address table16000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity12.8 Gbit/s
Maximum data transfer rate1 Gbit/s

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Security algorithmsSSL/TLS

Design

StackableYes
Product colourBlack

Power

Power consumption (typical)600 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Other features

Management platformTelnet CLI, SNMP v1, v2c, v3
Dimensions (WxDxH)438 x 420 x 44.45 mm
Networking featuresFast Ethernet, Gigabit Ethernet
Packet transfer speed1488000pps
Power requirements100-240 V AC, 50/60Hz
I/O ports2 x 1000BASE-T RJ-45 2 x dual-personality GbE 1 x 9 pin D-Sub (DB-9)

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Weight6.8 kg
