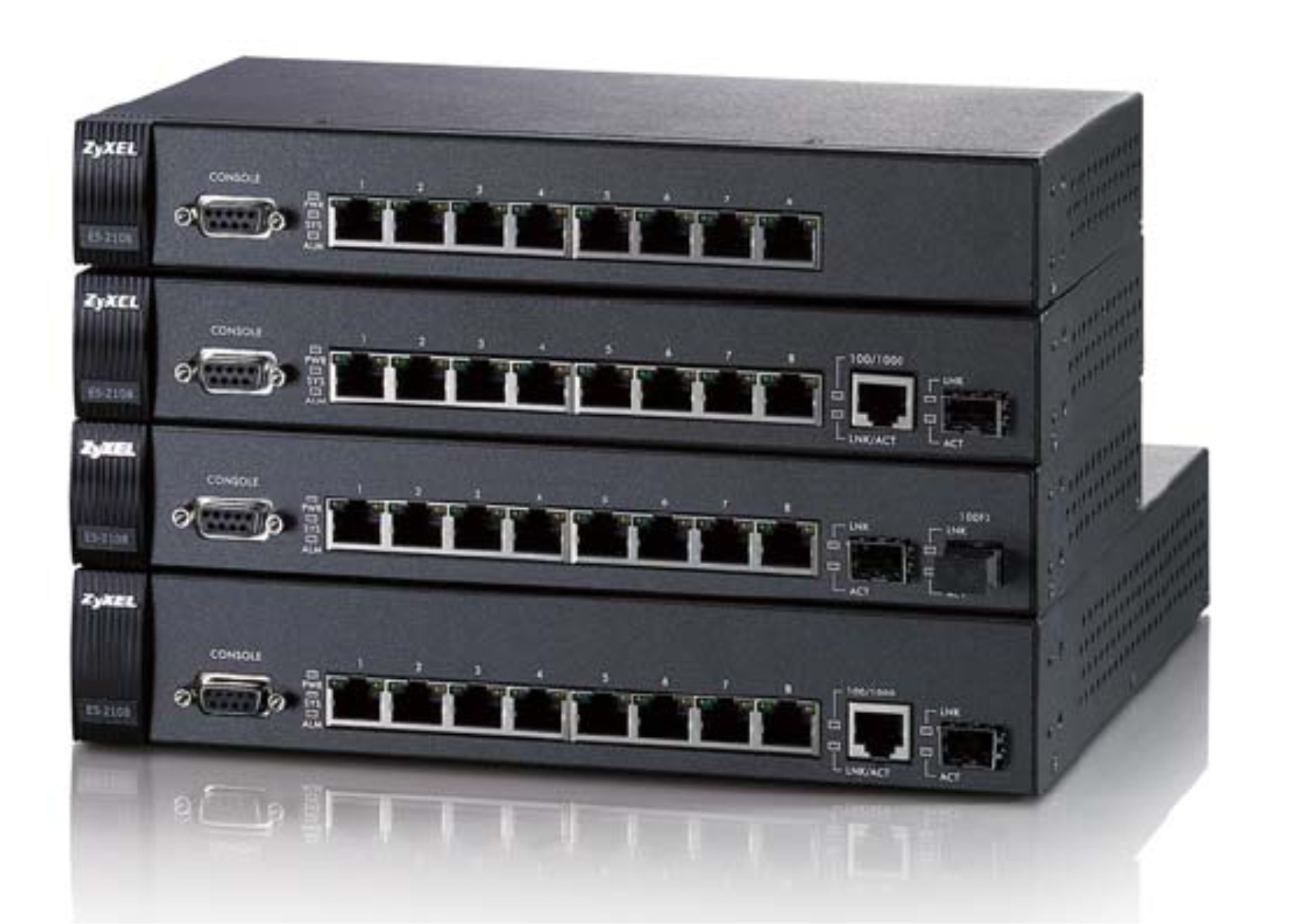

Zyxel ES-2108-G Managed L2 Black
Model ES-2108-GPart no. ZYXES-2108G
37 specifications
- Speed1 Gbit/s
- Weight1.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
Overview
- Speed
- 1 Gbit/s
- Weight
- 1.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES-2108-G
- Part numbers
- ZYXES-2108G, ZY-ES2108G
- Also known as
- Zyxel ES-2108-G Managed L2 Black
Specifications
37 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 5.6 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | DSCP, GVRP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 250 x 133 x 37 mm |
| Authentication method | IEEE 802.1x |
| Networking features | Fast Ethernet, Gigabit Ethernet |
| Packet transfer speed | 1488000pps |
| Power requirements | 100-240VAC, 50/60Hz |
| I/O ports | 1 x D-Sub 9 pin |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.2 kg |
