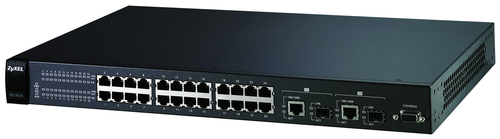

Zyxel ES-2024PWR Managed Power over Ethernet (PoE) Black
Model ES-2024PWRPart no. 91-010-117001BEAN 760559114916
28 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight4 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 4 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES-2024PWR
- Part numbers
- 91-010-117001B, ZYXES-2024PWR
- EAN / UPC
- 760559114916
- Also known as
- Zyxel ES-2024PWR Managed Power over Ethernet (PoE) Black
Specifications
28 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3z |
| Copper ethernet cabling technology | 10Base-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 8.8 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, v2c, v3, RMON, IGMP v1, v2, v3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 200 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438 x 270 x 44.45 mm |
| Connectivity technology | Wired |
| Authentication method | 802.1x |
| Power requirements | 100 - 240 V, 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 60950-1 CSA 60950-1 EN 60950-1 IEC 60950-1 |
