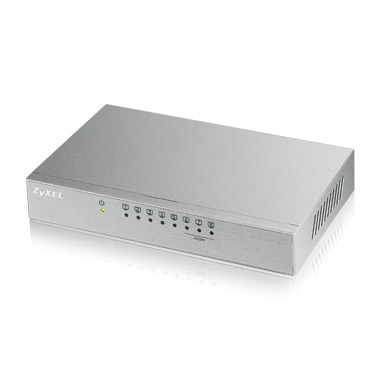

Zyxel ES-108A v2
Model ES-108A v2Part no. ES-108AV2-GB0101FEAN 4718937572281
37 specifications
- Weight295 g
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 295 g
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES-108A v2
- Part numbers
- ES-108AV2-GB0101F, ES-108A v2
- EAN / UPC
- 4718937572281
- Also known as
- Zyxel ES-108A v2 Unmanaged Fast Ethernet (10/100) Grey
Specifications
37 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 0.096 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 0.99 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 154.5 mm |
| Depth | 85 mm |
| Height | 26 mm |
| Weight | 295 g |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 154.5 mm |
| Package depth | 85 mm |
| Package height | 95 mm |
| Package weight | 477.5 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, C-Tick, BSMI |
