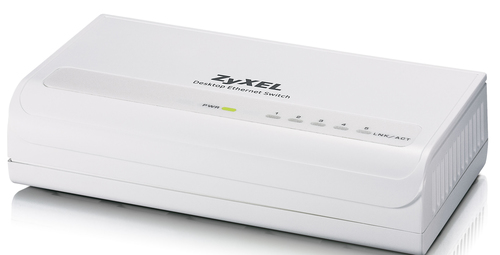

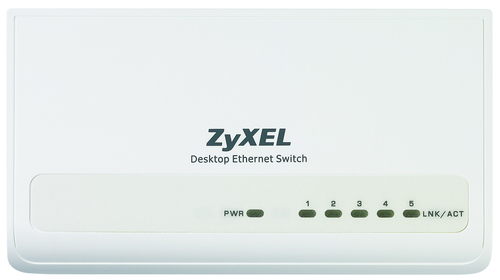

Zyxel ES-105S White
Model ES-105SPart no. ES105SEAN 760559116934
22 specifications
- Speed1 Gbit/s
- Weight160 g
- ColourWhite
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2 entries
Overview
- Speed
- 1 Gbit/s
- Weight
- 160 g
- Colour
- White
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES-105S
- Part number
- ES105S
- EAN / UPC
- 760559116934
- Also known as
- Zyxel ES-105S White
Specifications
22 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|

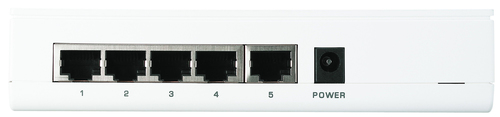

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2 entries |
| Supported data transfer rates | 10/100 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Input voltage | 100-240 V |
| Power consumption (typical) | 2.25 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 81.2 x 32.2 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 160 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 157 mm |
| Package depth | 86 mm |
| Package height | 96 mm |
| Package weight | 339 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC Class B, C-Tick |
What people say
Reviews & ratings
Zyxel ES-105S White
No reviews yet
Be the first to tell others how Zyxel ES-105S White works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Zyxel ES-105S White
All network switch comparisons- Zyxel ES-105S White vsZyxel ES108S network switch WhiteCompare specs
- Zyxel ES-105S White vsZyxel MGS3712 network switch L2 BlackCompare specs

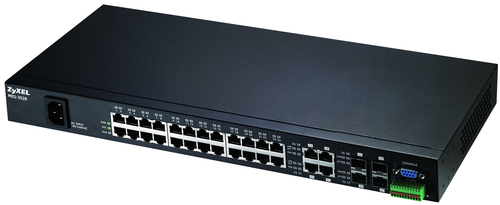

- Zyxel ES-105S White vsZyxel MES-3528 Managed L2 Fast Ethernet (10/100) 1U BlackCompare specs

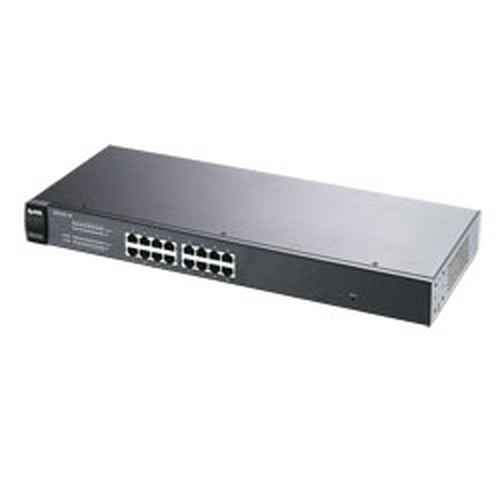

- Zyxel ES-105S White vsZyxel GS1510-16 Managed BlackCompare specs
- Zyxel ES-105S White vsNETGEAR FS116E ManagedCompare specs
- Zyxel ES-105S White vsNETGEAR GS105E ManagedCompare specs
- Zyxel ES-105S White vsIntellinet 524155 network switch Power over Ethernet (PoE) 1U BlackCompare specs

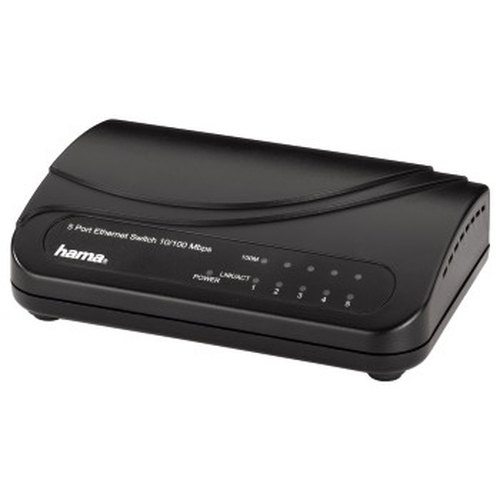

- Zyxel ES-105S White vsHama 00108700 network switch BlackCompare specs
