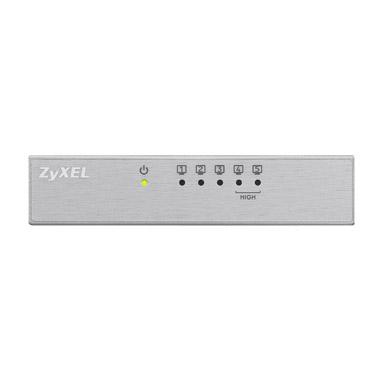

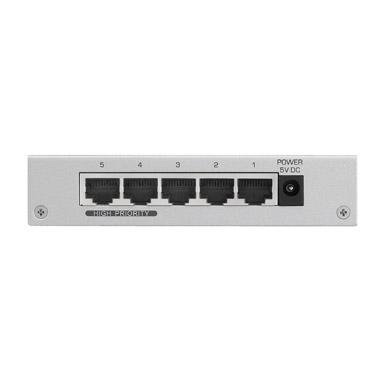

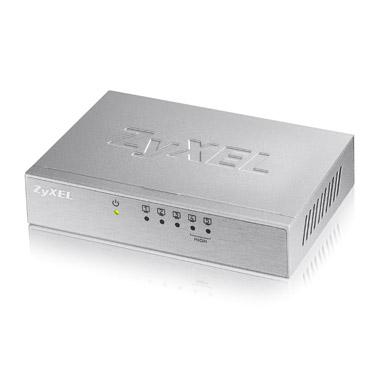

ES 105Av3
Model ES 105Av3Part no. ES-105AV3-GB0101FEAN 4718937586929
40 specifications
- Weight248 g
- ColourSilver
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table1000 entries
Overview
- Weight
- 248 g
- Colour
- Silver
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 1000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES 105Av3
- Part number
- ES-105AV3-GB0101F
- EAN / UPC
- 4718937586929
- Also known as
- Zyxel ES 105Av3 Unmanaged Fast Ethernet (10/100) Silver
Specifications
40 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
Security
| Specification | Value |
|---|---|
| Authentication | Auto VLAN, MAC-based authentication |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Silver |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 56 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 0.92 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Depth | 75 mm |
| Height | 26 mm |
| Weight | 248 g |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 127 mm |
| Package depth | 82 mm |
| Package height | 95 mm |
| Package weight | 373.5 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, C-Tick, BSMI |
