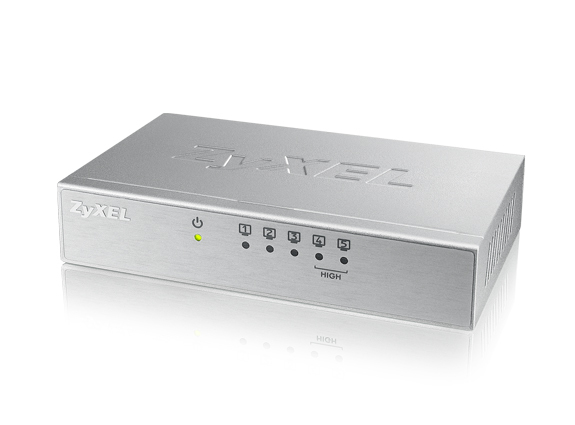

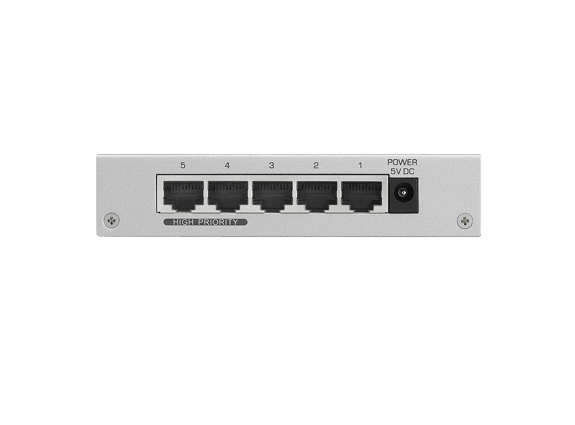

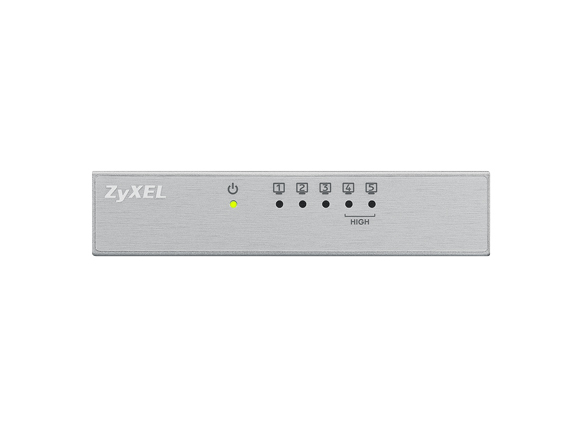

Zyxel ES-105A v3
Model ES-105A v3Part no. 4748
38 specifications
- Weight224 g
- ColourSilver
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table1000 entries
Overview
- Weight
- 224 g
- Colour
- Silver
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 1000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES-105A v3
- Part number
- 4748
- Also known as
- Zyxel ES-105A v3 Unmanaged Fast Ethernet (10/100) Silver
Specifications
38 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Silver |
| Reset button | Yes |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Buffer size | 56 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 0.92 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Depth | 75 mm |
| Height | 26 mm |
| Weight | 224 g |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 127 mm |
| Package depth | 82 mm |
| Package height | 95 mm |
| Package weight | 373.5 g |
What people say
Reviews & ratings
Zyxel ES-105A v3
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Zyxel ES-105A v3
All network switch comparisons- Zyxel ES-105A v3 vsZyxel GS1900-8HP v2Compare specs
- Zyxel ES-105A v3 vsZyxel XGS2210-28HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
- Zyxel ES-105A v3 vsZyxel GS1100-10HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
- Zyxel ES-105A v3 vsZyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
- Zyxel ES-105A v3 vsNETGEAR GS324 Unmanaged Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- Zyxel ES-105A v3 vsNETGEAR GS316 Unmanaged Gigabit Ethernet (10/100/1000) BlackCompare specs

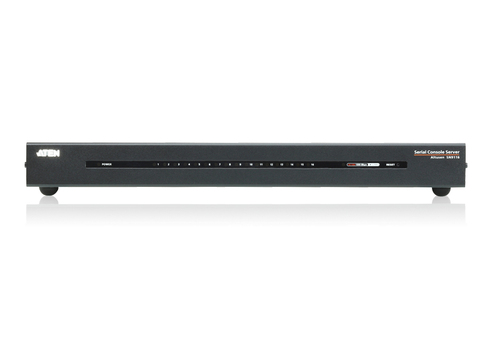

- Zyxel ES-105A v3 vsATEN SN9116 Managed Gigabit Ethernet (10/100/1000) BlackCompare specs
