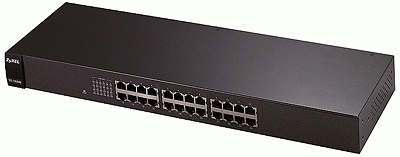

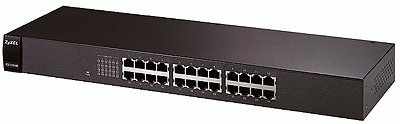

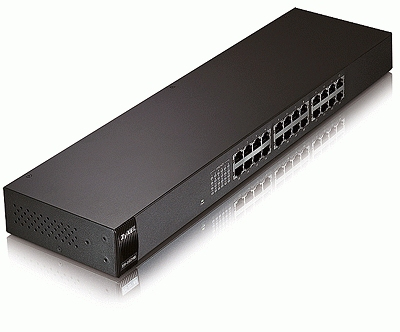

Zyxel ES-1024B Unmanaged
Model ES-1024BPart no. 91-010-088009B
19 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight1.45 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- Copper ethernet cabling technology100BASE-TX, 10BASE-T
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 1.45 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Copper ethernet cabling technology
- 100BASE-TX, 10BASE-T
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES-1024B
- Part numbers
- 91-010-088009B, ZYXES-1024B, ES-1024B
- Also known as
- Zyxel ES-1024B Unmanaged
Specifications
19 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 4.8 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Power
| Specification | Value |
|---|---|
| Power source | 100 - 240VAC 50/60Hz |
| Power consumption (typical) | 6.44 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 444.5 x 130 x 42 mm |
| Connectivity technology | Wired |
| I/O ports | 24 x 10/100BASE-T Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.45 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A CE C-Tick |
