Zyxel ES-1016B Unmanaged
Model ES-1016BPart no. 91-010-087010BEAN 4718937501410
17 specifications
- Speed0.2 Gbit/s
- ConnectivityWired
- Weight1.37 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology100BASE-TX, 10BASE-T
Overview
- Speed
- 0.2 Gbit/s
- Connectivity
- Wired
- Weight
- 1.37 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 100BASE-TX, 10BASE-T
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES-1016B
- Part numbers
- 91-010-087010B, ZY-ES1016B, ZYXES-1016B
- EAN / UPC
- 4718937501410
- Also known as
- Zyxel ES-1016B Unmanaged
Specifications
17 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.2 Gbit/s |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6.44 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 444.5 x 130 x 42 mm |
| Connectivity technology | Wired |
| Power requirements | 100 - 240VAC 50/60Hz |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.37 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A CE C-Tick |
What people say
Reviews & ratings
Zyxel ES-1016B Unmanaged
No reviews yet
Be the first to tell others how Zyxel ES-1016B Unmanaged works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Zyxel ES-1016B Unmanaged
All network switch comparisons- Zyxel ES-1016B Unmanaged vsZyxel ES-1024A 24-port Unmanaged Rackmount Ethernet SwitchCompare specs
- Zyxel ES-1016B Unmanaged vsZyxel ES-105A Unmanaged SilverCompare specs
- Zyxel ES-1016B Unmanaged vsZyxel GS-1548 Managed BlackCompare specs
- Zyxel ES-1016B Unmanaged vsZyxel ES-1024B UnmanagedCompare specs

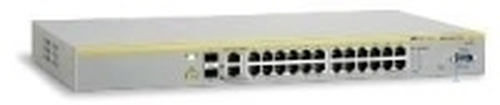

- Zyxel ES-1016B Unmanaged vsAllied Telesis 10/100TX x 24 ports PoE stackable FE Switch w/ 2 combo ports, EU power cordCompare specs

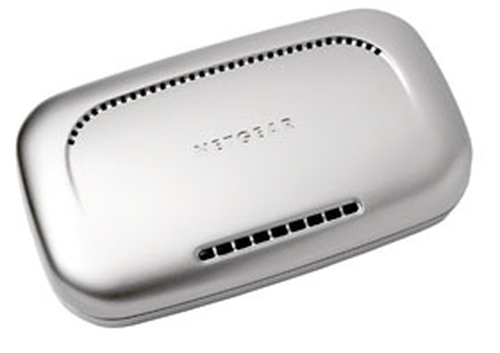

- Zyxel ES-1016B Unmanaged vsNETGEAR 8 Port Fast Ethernet (10 / 100) Network Switch (5 Pack)Compare specs

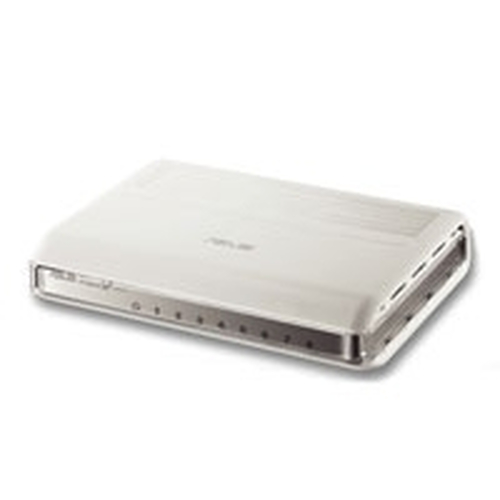

- Zyxel ES-1016B Unmanaged vsASUS GigaX 1108BCompare specs
