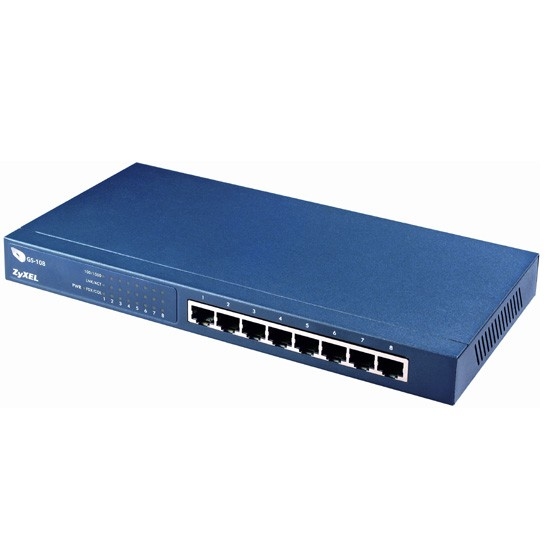

Zyxel Dimension GS-108
Model Dimension GS-108Part no. 160121.0108
23 specifications
- Speed1 Gbit/s
- Weight1 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology1000Base-T, 100Base-TX
- MAC address table8000 entries
Overview
- Speed
- 1 Gbit/s
- Weight
- 1 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 1000Base-T, 100Base-TX
- MAC address table
- 8000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- Dimension GS-108
- Part number
- 160121.0108
- Also known as
- Zyxel Dimension GS-108 Unmanaged
Specifications
23 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.256 MB |
Design
| Specification | Value |
|---|---|
| LED indicators | Power |
| Safety | UL, cUL |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 250 x 132 x 26 mm |
| Packet transfer speed | 148800/1488000 pps |
| Power requirements | 100-240V; 50/60 Hz |
| Electromagnetic emissions | FCC Class A, CE |
| I/O ports | 8x Gigabit Ethernet |
| Technical features | Auto MDI-II/MDI-X |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
