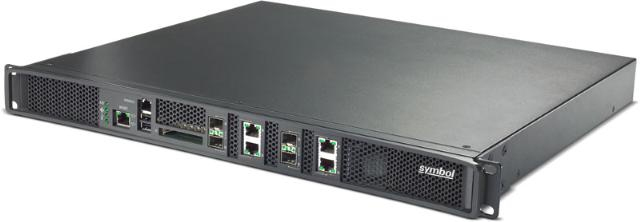

Zebra RFS 7000

Zebra RFS 7000

Model RFS 7000Part no. RFS-7010-10020-WREAN 5052179443787

44 specifications
  • Type1U
  • Weight6.12 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity4
  • 10G supportNo
See all specifications

Overview

Type
1U
Weight
6.12 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
4
10G support
No
Brand
Zebra
Model
RFS 7000
Part numbers
RFS-7010-10020-WR, RFS-7010-100R0-WR, RFS-7010-10030-WR
EAN / UPC
5052179443787
Also known as
Motorola RFS 7000 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Specifications

44 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity1
Gigabit Ethernet (copper) ports quantity4
Combo SFP ports quantity4
USB 2.0 ports quantity2
Compatible memory cardsCF

Network

Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G supportNo
Broadcast storm controlYes
VLAN supportYes

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Security algorithms128-bit WEP, 40-bit WEP, EAP, EAP-TTLS, PEAP, WPA-TKIP, WPA2-CCMP, WPA2-TKIP

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP v1/v2/v3
Supported network protocolsIPv4/v6, TFTP, TCP/UDP, DSCP, TOS, SMTP, SNTP, LLDP, NLB, Telnet

Design

Rack mountingYes
Form factor1U
Product colourBlack
SafetyUL, EN, IEC

Performance

Firmware upgradeableYes
Mean time between failures (MTBF)65000 h

Power

AC input voltage90 - 264 V
AC input frequency50 - 60 Hz
Power consumption (typical)100 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m

Weight & dimensions

Width440 mm
Depth390.8 mm
Height44.5 mm
Weight6.12 kg

Certificates

CertificationRoHS
