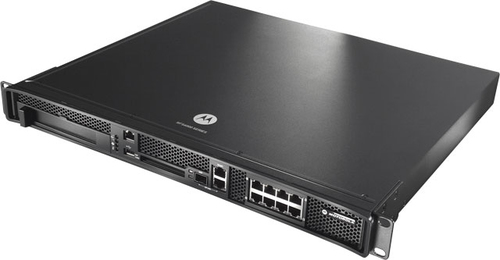

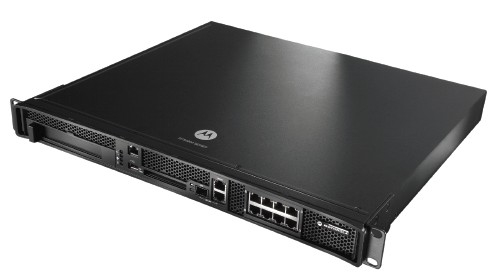

Zebra Motorola RFS-6010-10030-WR network switch Managed L2 Power over Ethernet (PoE) Black
Model RFS-6010-10030-WR
40 specifications
- Speed1000 Gbit/s
- ConnectivityWired & Wireless
- Weight6.35 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity1
Overview
- Speed
- 1000 Gbit/s
- Connectivity
- Wired & Wireless
- Weight
- 6.35 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 1
- Brand
- Zebra
- Category
- Network Switch
- Model
- RFS-6010-10030-WR
- Part number
- RFS-6010-10030-WR
- Also known as
- Motorola RFS-6010-10030-WR network switch Managed L2 Power over Ethernet (PoE) Black
Specifications
40 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Gigabit Ethernet (copper) ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1D, IEEE 802.1p, IEEE 802.3 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1000 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSID |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Supported network protocols | LLRP, TFTP, SNTP, DHCP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 65000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 390.8 x 44.45 mm |
| Connectivity technology | Wired & Wireless |
| Input frequency | 47 - 63 Hz |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Power requirements | AC 90 – 264V 50/60Hz |
| Wi-Fi | Yes |
| Dimensions (W x D x H) (imperial) | 439.9 x 390.9 x 44.5 mm (17.3 x 15.4 x 1.75") |
| Weight (imperial) | 6.35 kg (14 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 32 - 104 °F |
| Heat dissipation | 665 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.35 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI, C-Tick |
