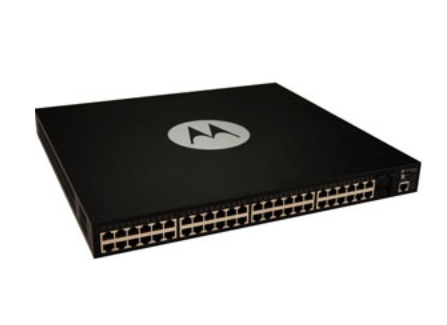

Zebra EX 3548

Zebra EX 3548

Model EX 3548Part no. EX-3548-0000-00-WR

46 specifications
  • Type1U
  • Weight6.6 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • 10G supportNo
See all specifications

Overview

Type
1U
Weight
6.6 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
10G support
No
Brand
Zebra
Model
EX 3548
Part number
EX-3548-0000-00-WR
Also known as
Motorola EX 3548 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Specifications

46 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity48
SFP module slots quantity4

Network

Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
Link aggregationYes
Number of VLANs4000

Optical fiber

Fiber ethernet cabling technology1000BASE‑LH, 1000BASE‑LX, 1000BASE‑SX

Data transmission

MAC address table16000 entries
Switching capacity104 Gbit/s
Throughput77376 Mpps
Number of queues4
Jumbo frames supportYes

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithms802.1x RADIUS, HTTPS, SSH

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMPv1/v2/v3, Telnet, HTTP/HTTPS, FTP/TFTP, SSH

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current12 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity48
Total Power over Ethernet (PoE) budget740 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Operating altitude0 - 4004 m
Non-operating altitude0 - 4572 m

Weight & dimensions

Width440 mm
Depth409 mm
Height44 mm
Weight6.6 kg
