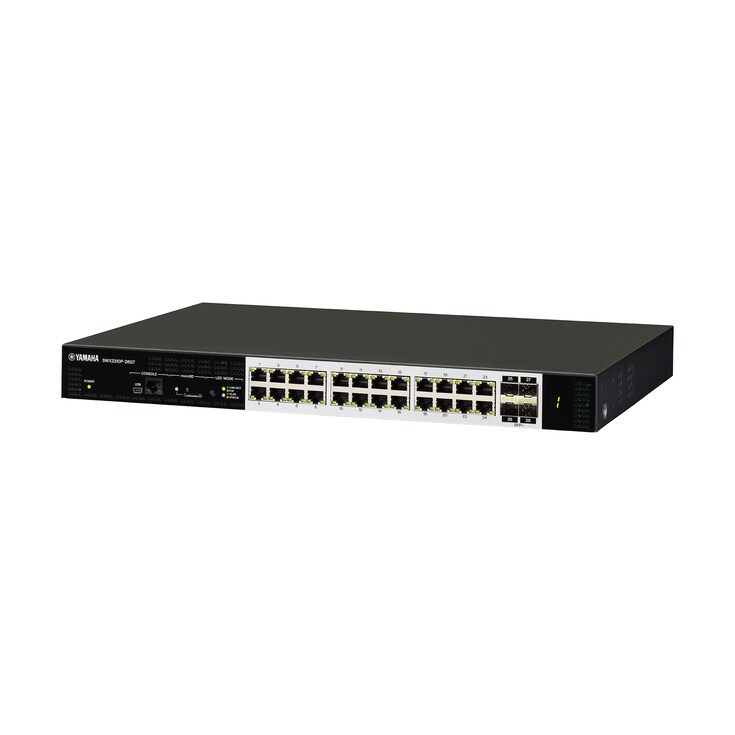

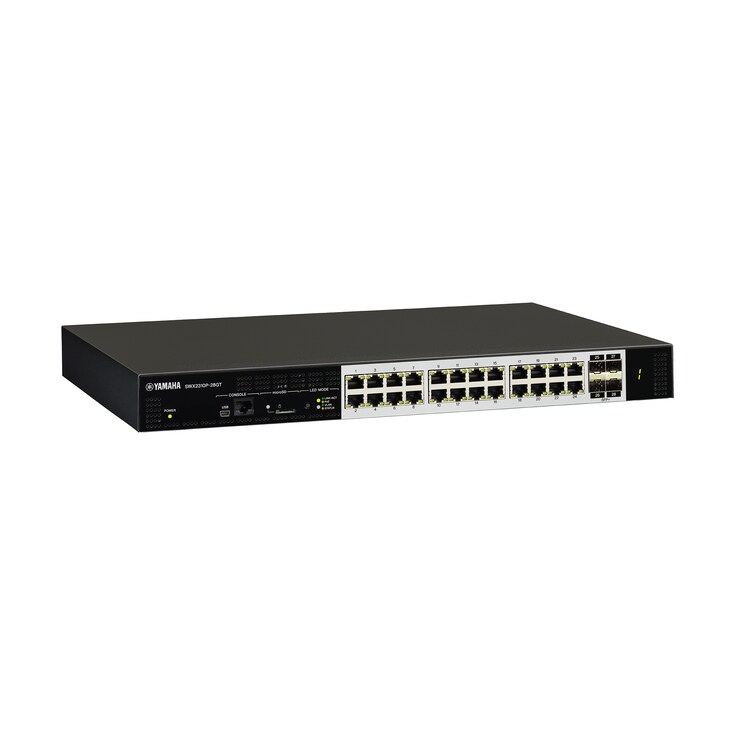

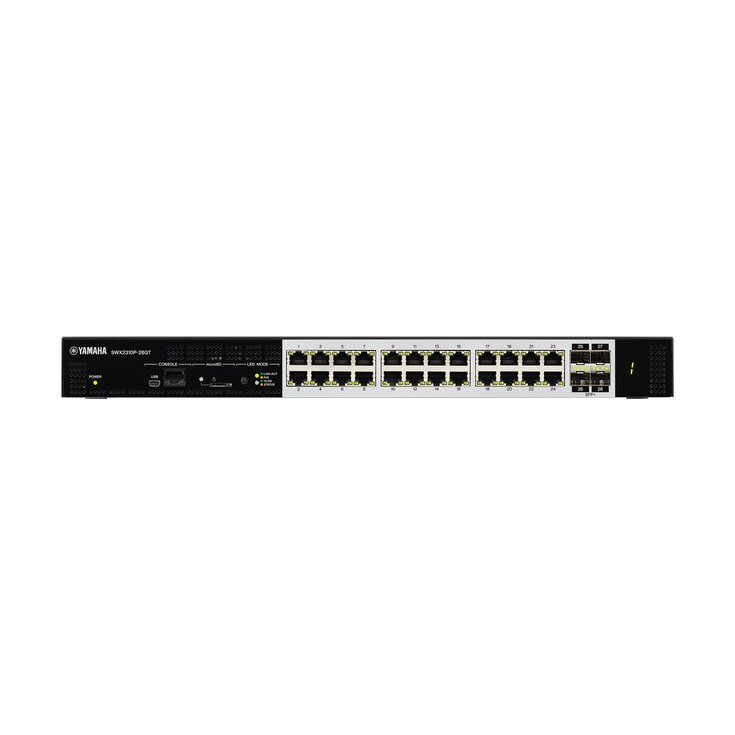

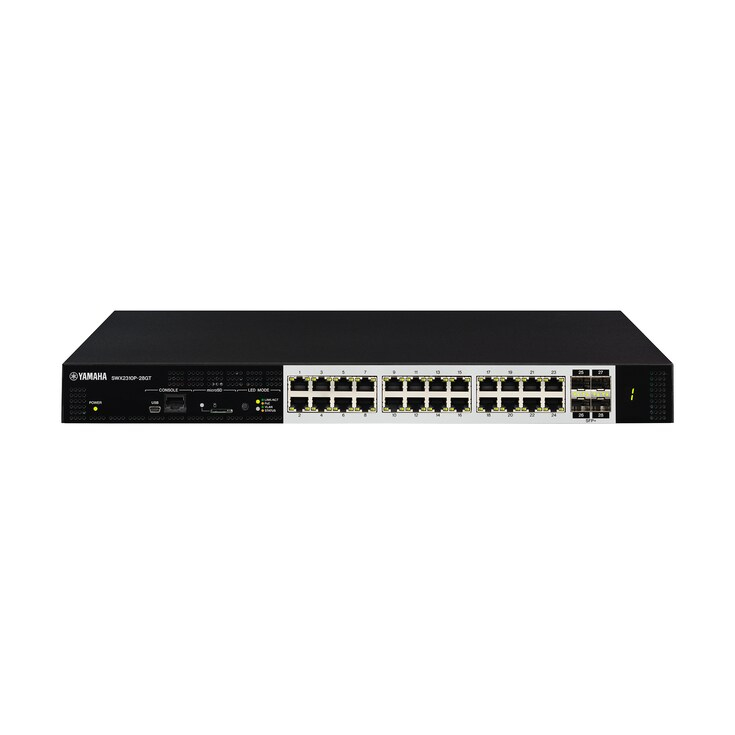

SWX2310P-28GT network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model SWX2310P-28GT
29 specifications
- Type1U
- Weight3.9 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- Auto-negotiationYes
Overview
- Type
- 1U
- Weight
- 3.9 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Auto-negotiation
- Yes
- Brand
- Yamaha
- Category
- Network Switch
- Model
- SWX2310P-28GT
- Part number
- SWX2310P-28GT
- Also known as
- Yamaha SWX2310P-28GT network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
29 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/USB Type-B |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3at |
| Auto-negotiation | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 459 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 294 mm |
| Height | 44 mm |
| Weight | 3.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
