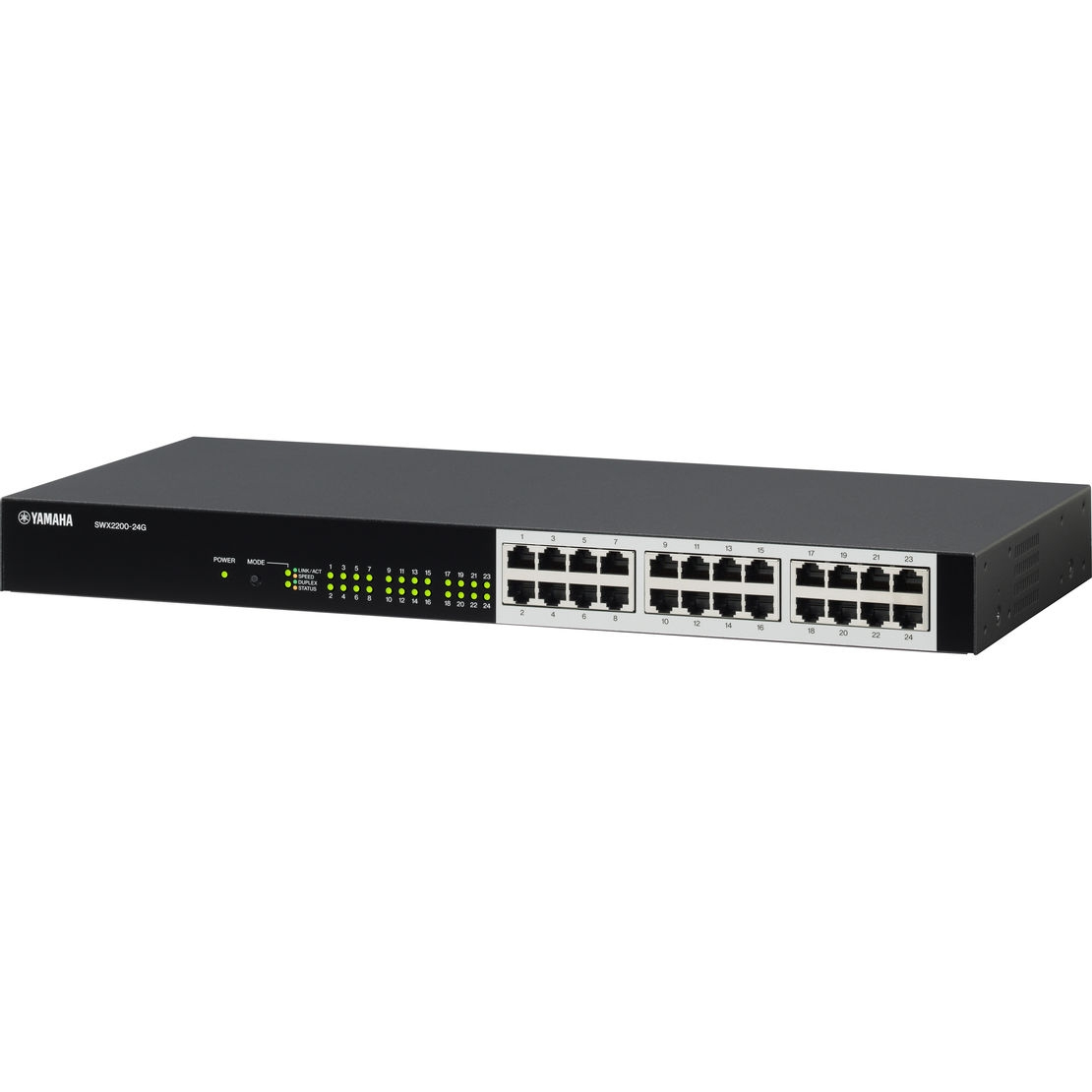

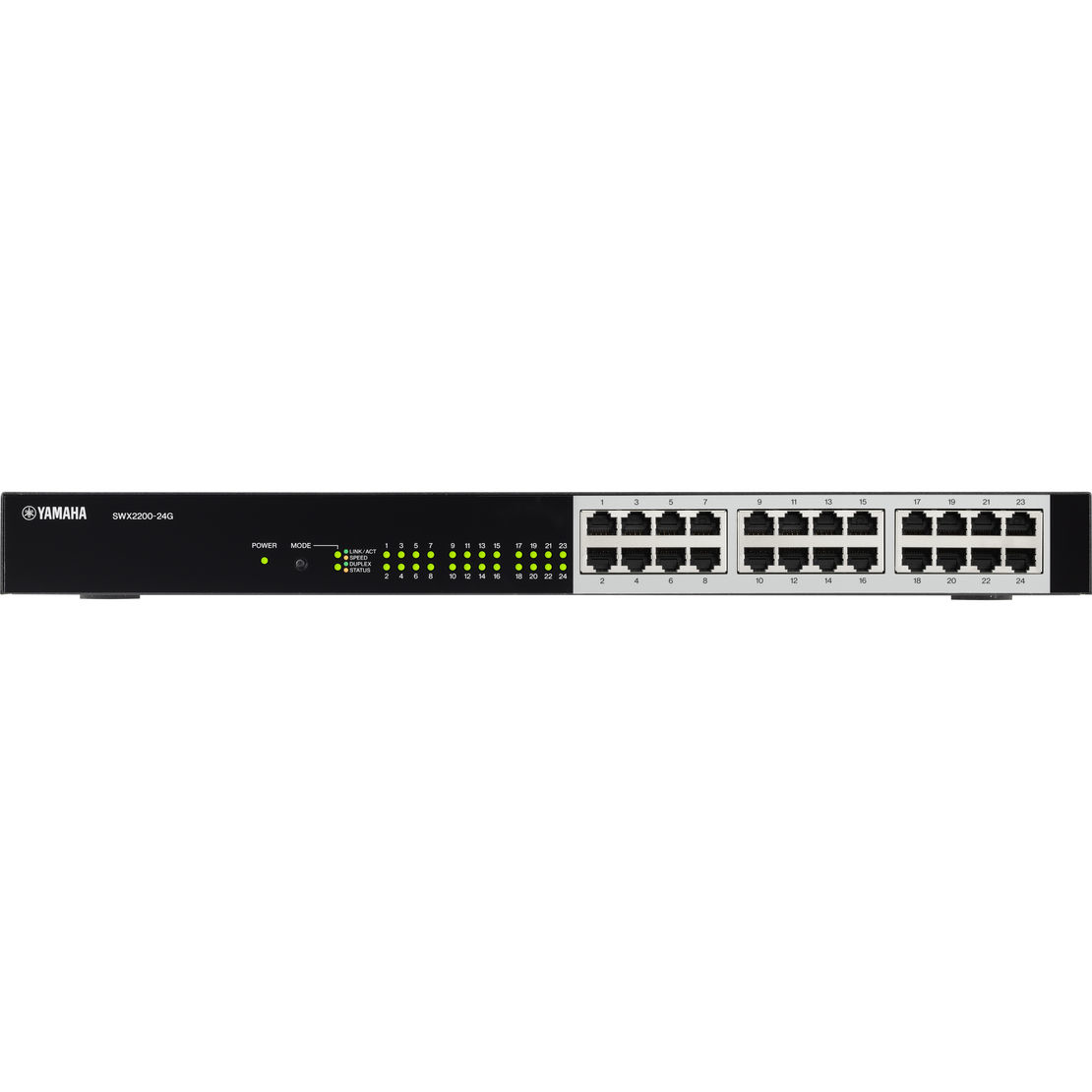

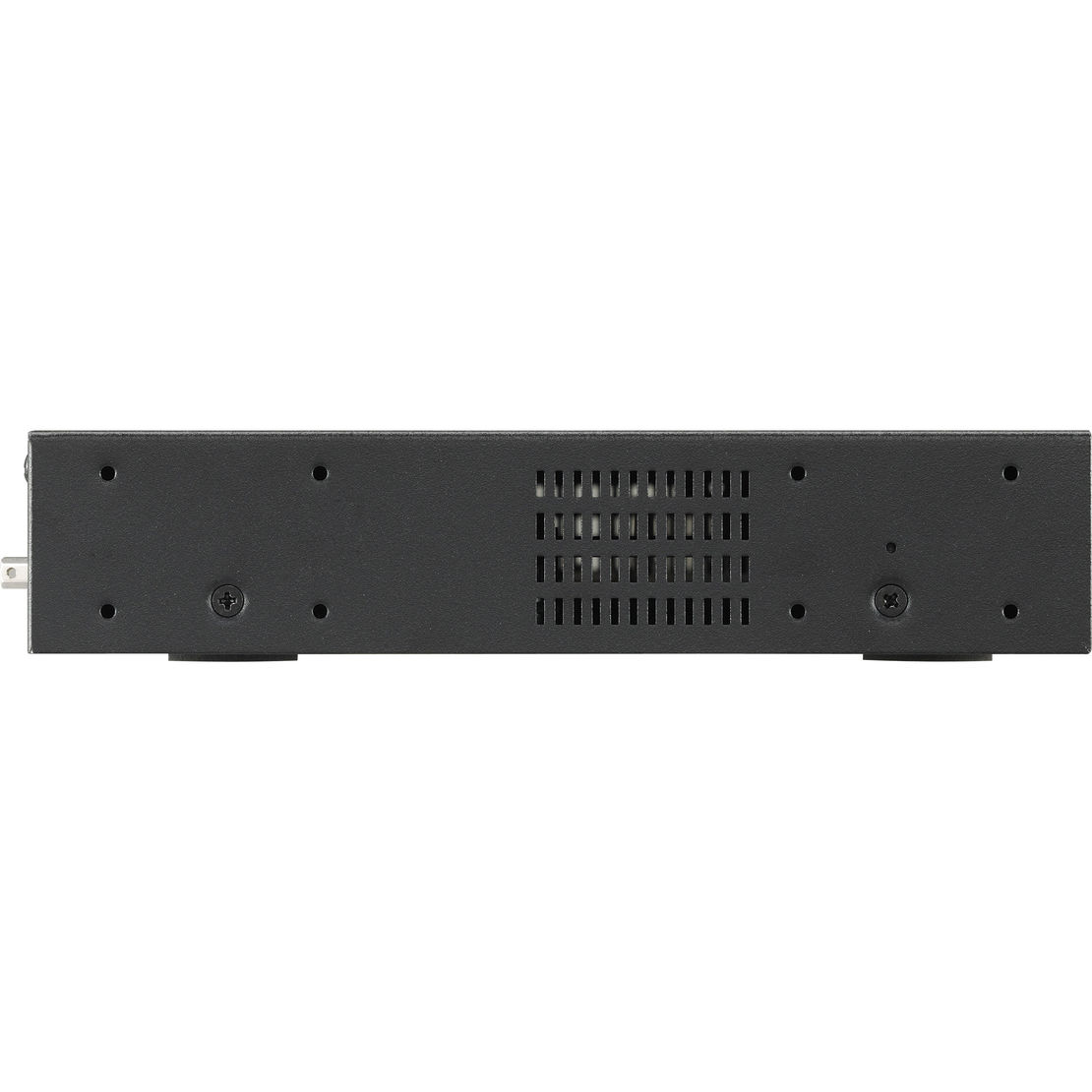

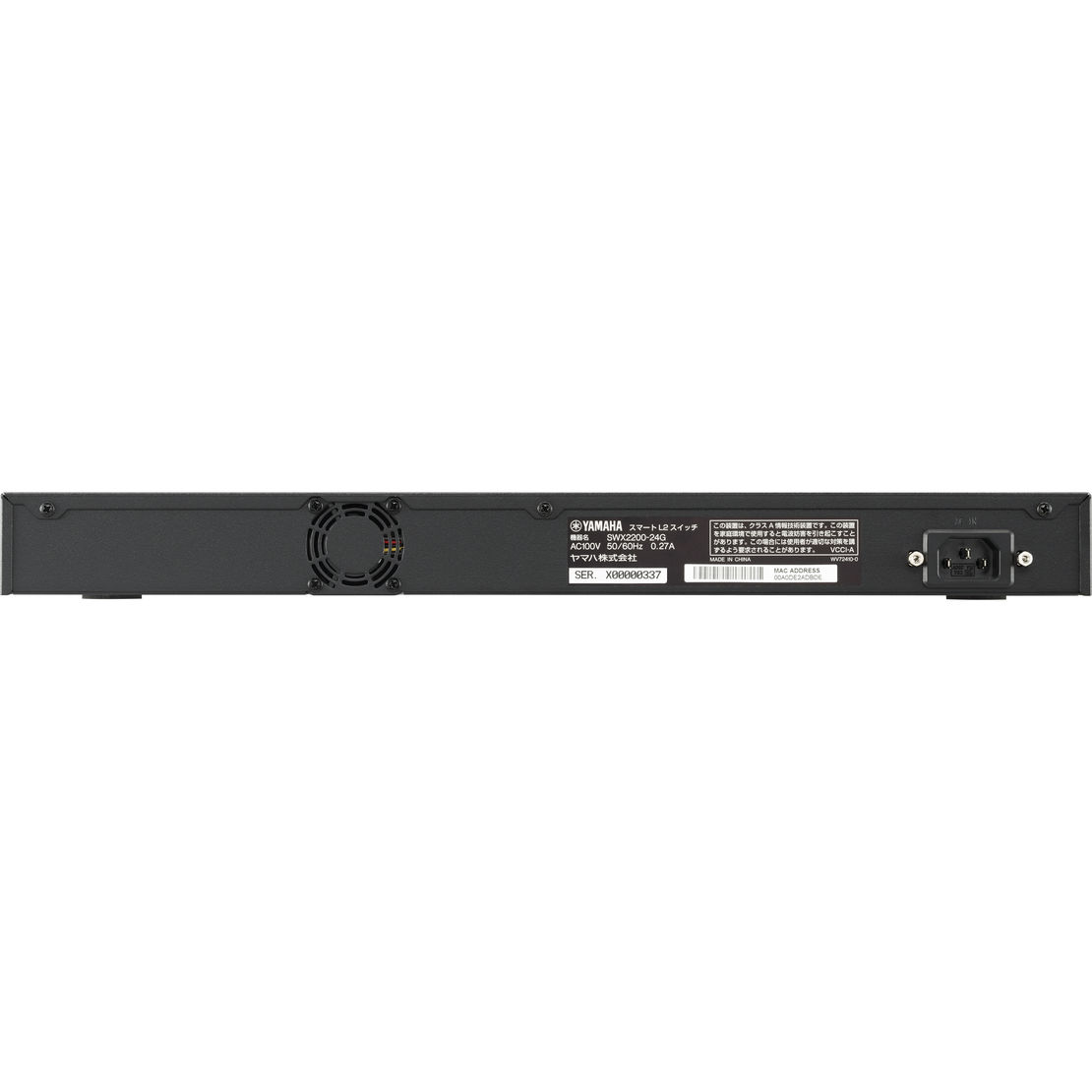

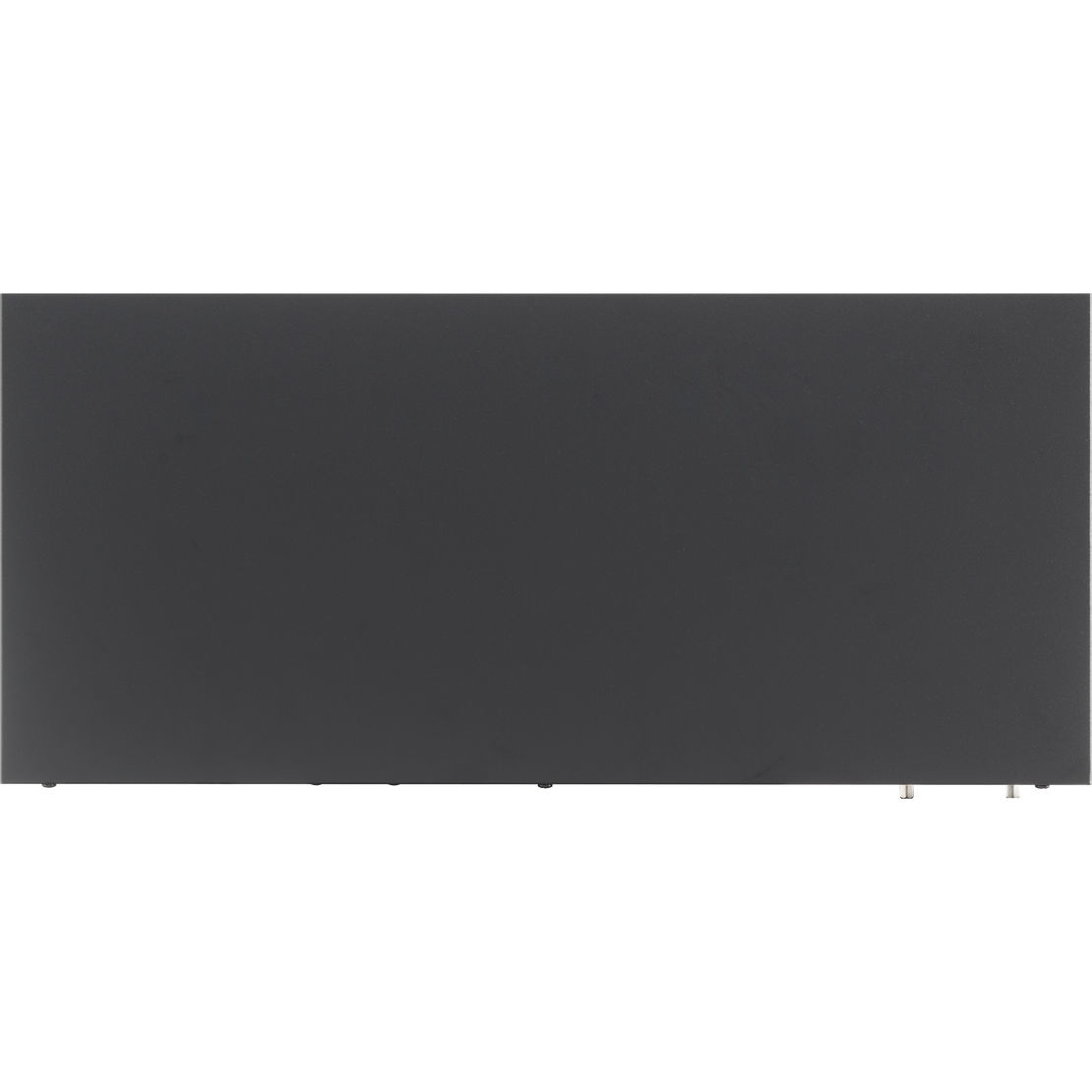

Yamaha SWX2200-24G network switch L2 Gigabit Ethernet (10/100/1000) Black
Model SWX2200-24GEAN 4960693235065
36 specifications
- Weight2.6 kg
- ColourBlack
- Switch layerL2
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8192 entries
Overview
- Weight
- 2.6 kg
- Colour
- Black
- Switch layer
- L2
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- Yamaha
- Category
- Network Switch
- Model
- SWX2200-24G
- Part number
- SWX2200-24G
- EAN / UPC
- 4960693235065
- Also known as
- Yamaha SWX2200-24G network switch L2 Gigabit Ethernet (10/100/1000) Black
Specifications
36 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 46 Gbit/s |
| Forwarding rate | 35.71 Mpps |
| Latency (10-100 Mbps) | 4.7 µs |
| Latency (1 Gbps) | 2.7 µs |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 27 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 15 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Certification | VCCI Class A, RoHS |
