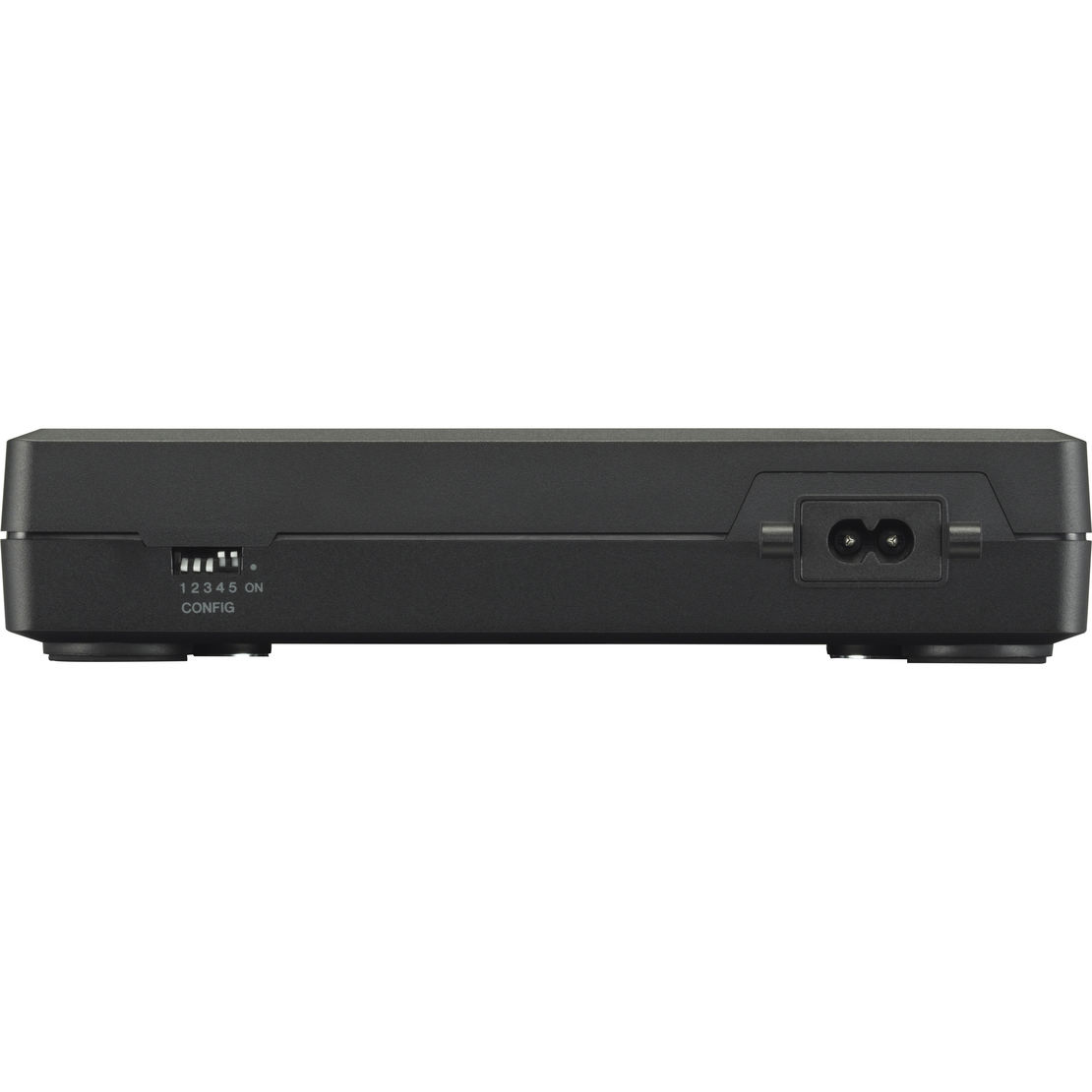

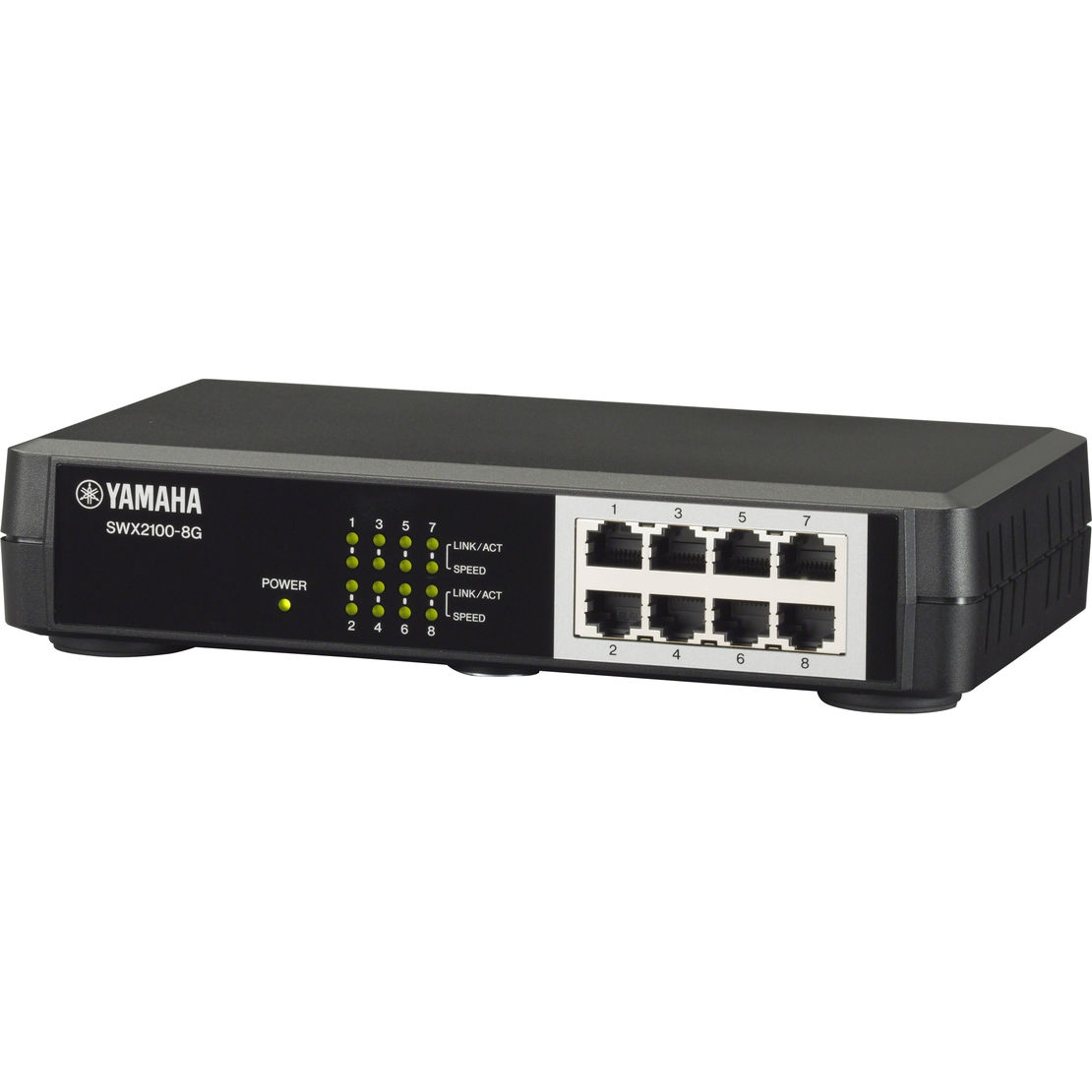

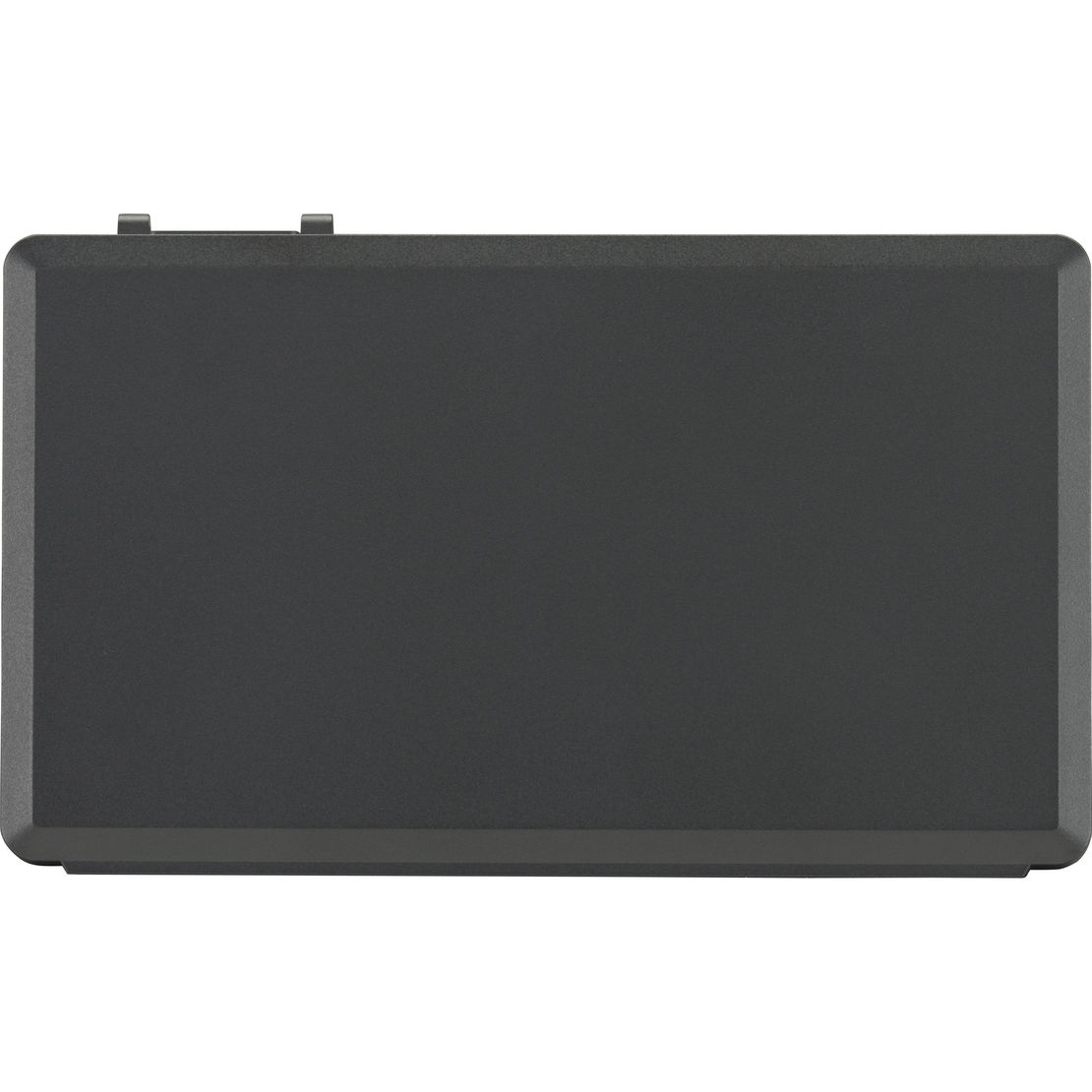

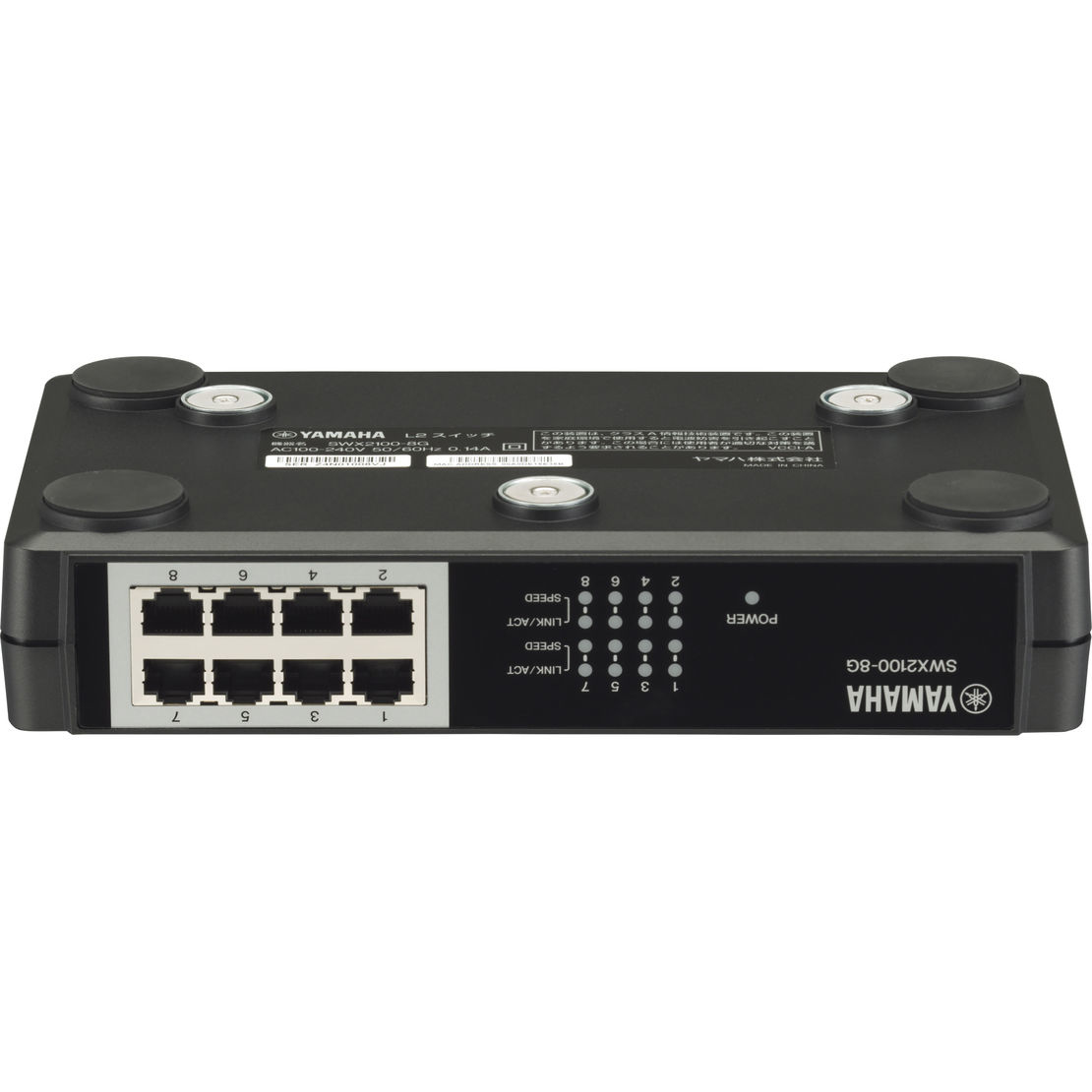

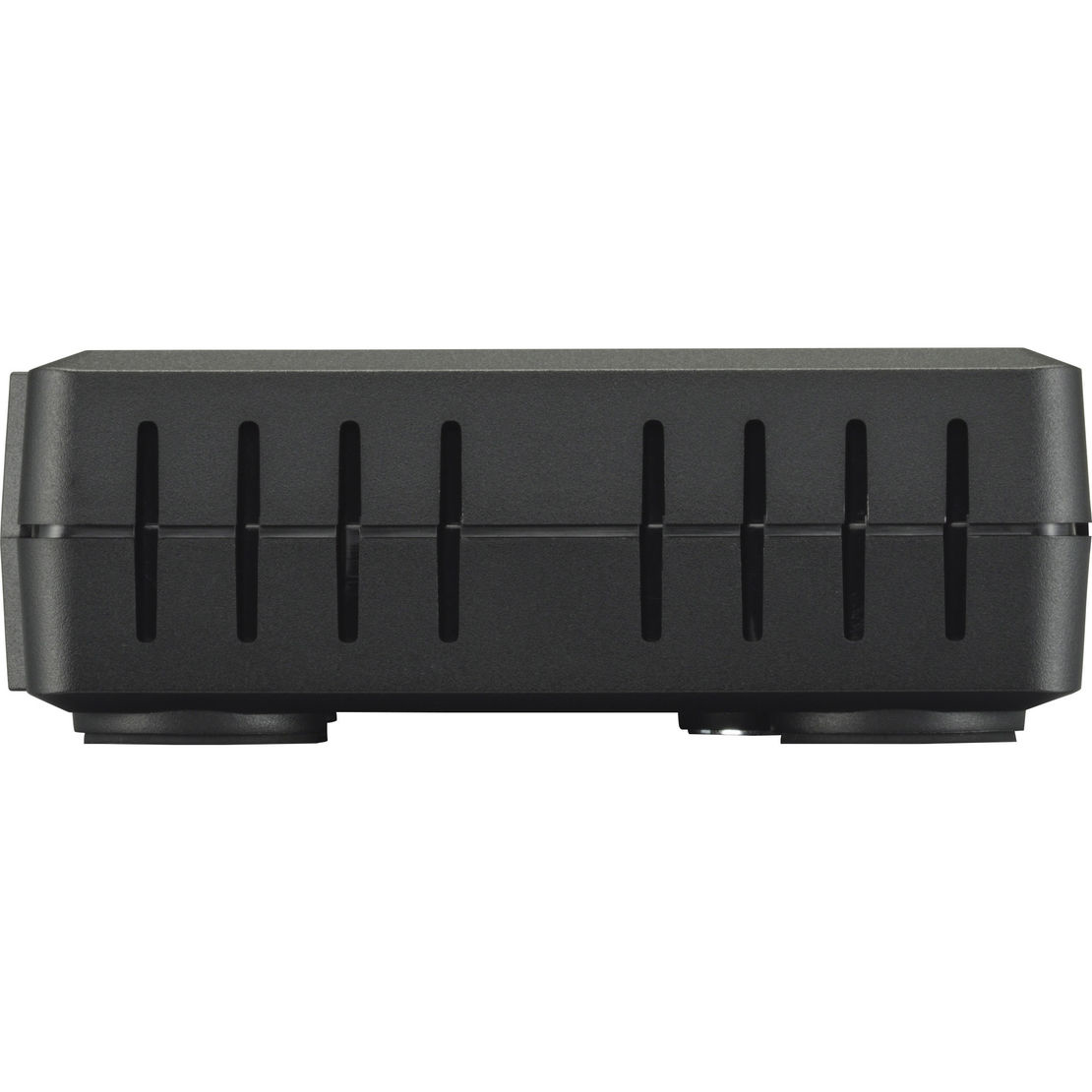

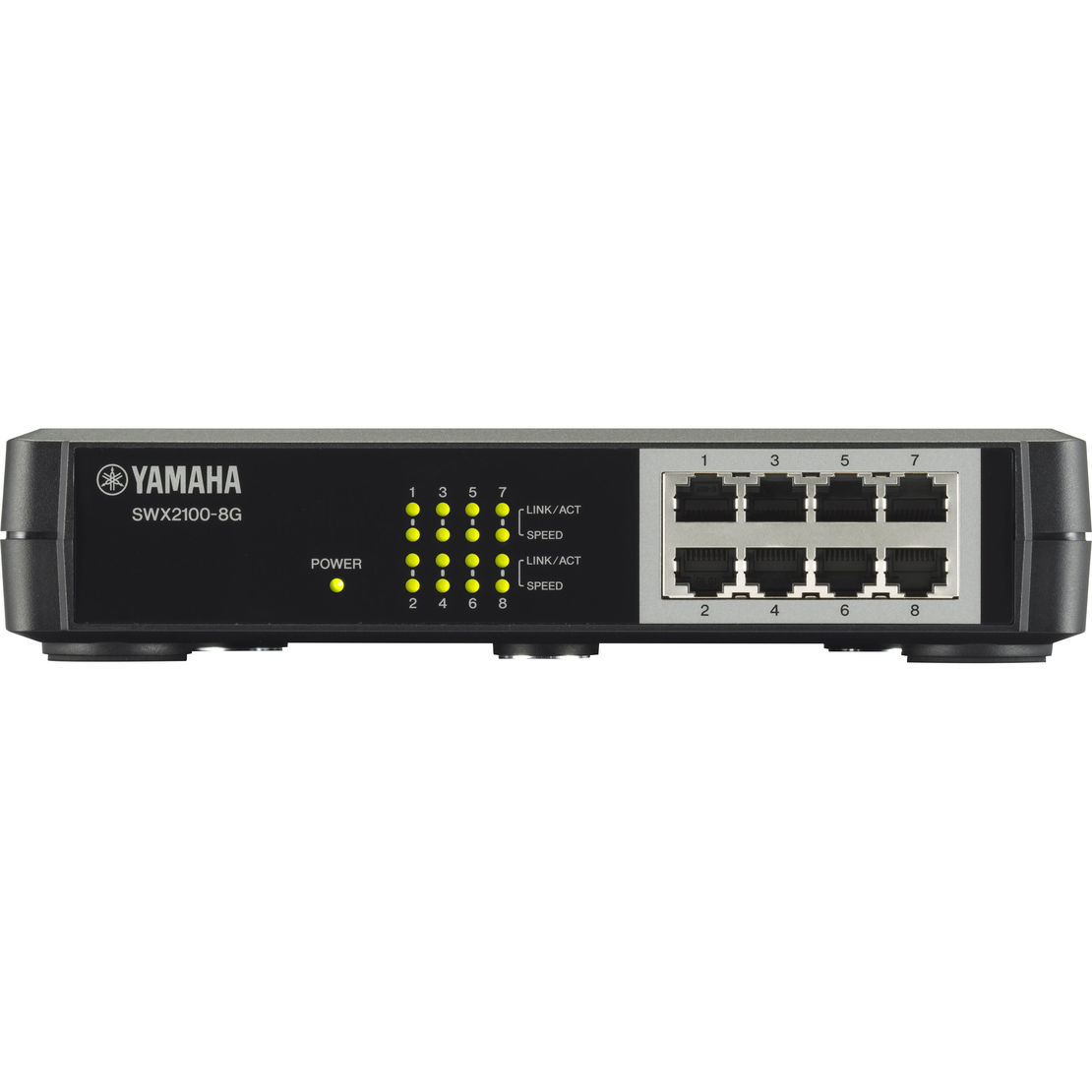

Yamaha SWX2100-8G network switch Gigabit Ethernet (10/100/1000) Black
Model SWX2100-8GEAN 4957812585880
30 specifications
- Weight650 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4096 entries
- AC input voltage100 - 240 V
Overview
- Weight
- 650 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4096 entries
- AC input voltage
- 100 - 240 V
- Brand
- Yamaha
- Category
- Network Switch
- Model
- SWX2100-8G
- Part number
- SWX2100-8G
- EAN / UPC
- 4957812585880
- Also known as
- Yamaha SWX2100-8G network switch Gigabit Ethernet (10/100/1000) Black
Specifications
30 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Latency (10-100 Mbps) | 3.5 µs |
| Latency (1 Gbps) | 1.5 µs |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 15 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 130.6 mm |
| Height | 47.3 mm |
| Weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
