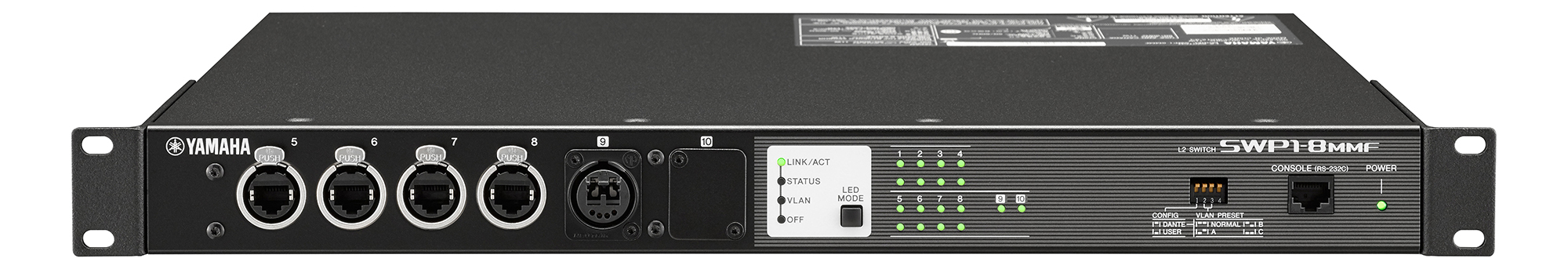

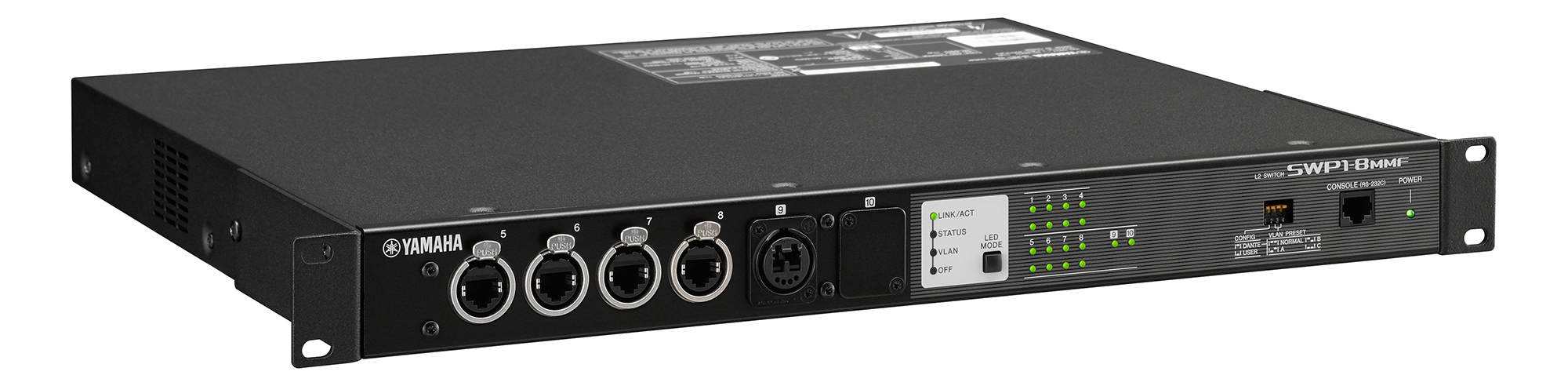

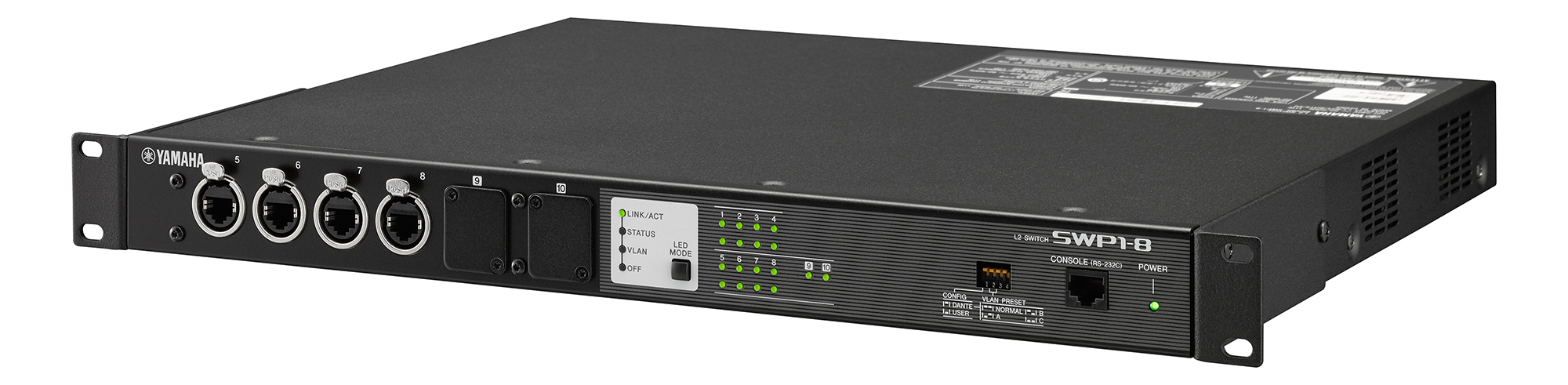

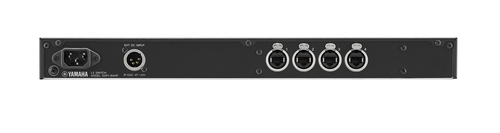

Yamaha SWP1-8MMF network switch Gigabit Ethernet (10/100/1000) Black
Model SWP1-8MMFEAN 889025100311
54 specifications
- Weight4.2 kg
- ColourBlack
- Quality of Service (QoS) supportYes
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- Fiber ethernet cabling technology1000BASE‑SX
Overview
- Weight
- 4.2 kg
- Colour
- Black
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE‑SX
- Brand
- Yamaha
- Category
- Network Switch
- Model
- SWP1-8MMF
- Part number
- SWP1-8MMF
- EAN / UPC
- 889025100311
- Also known as
- Yamaha SWP1-8MMF network switch Gigabit Ethernet (10/100/1000) Black
Specifications
54 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Port-based VLAN |
| Number of VLANs | 256 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑SX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 20 Gbit/s |
| Throughput | 15 Mpps |
| Number of queues | 8 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed, Status |
Performance
| Specification | Value |
|---|---|
| Buffer size | 1024 KB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (max) | 11 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Heat dissipation | 37.67 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 362 mm |
| Height | 44 mm |
| Weight | 4.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
