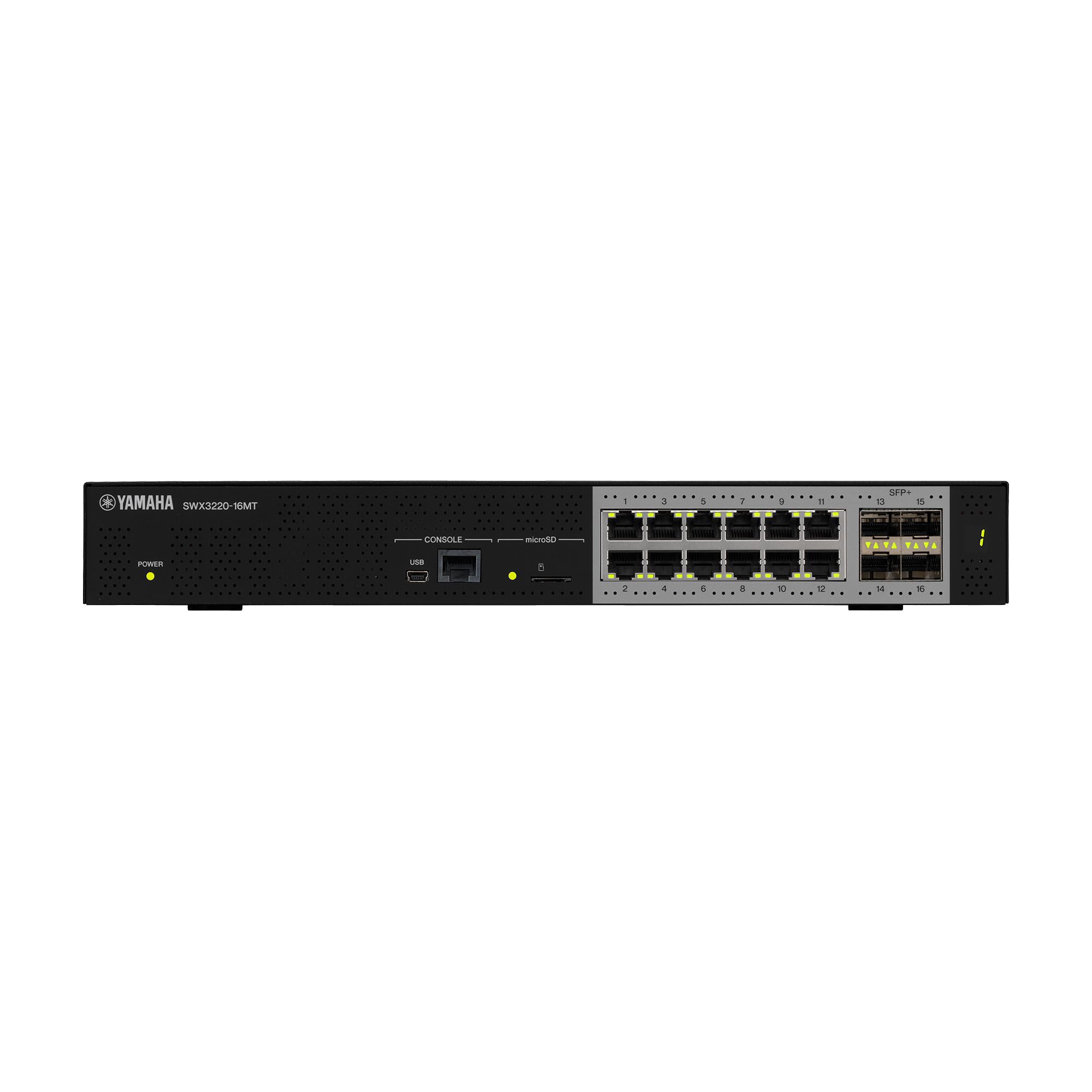

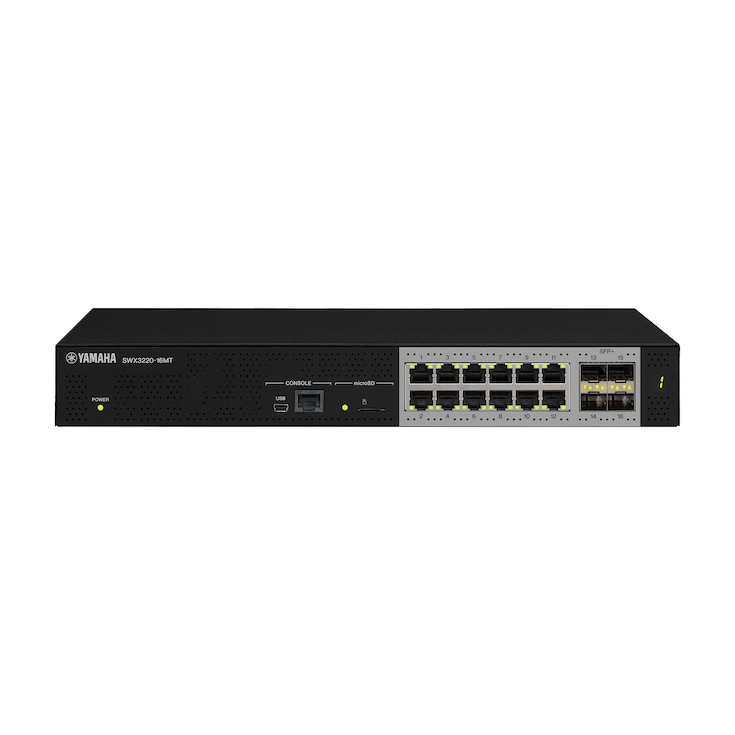

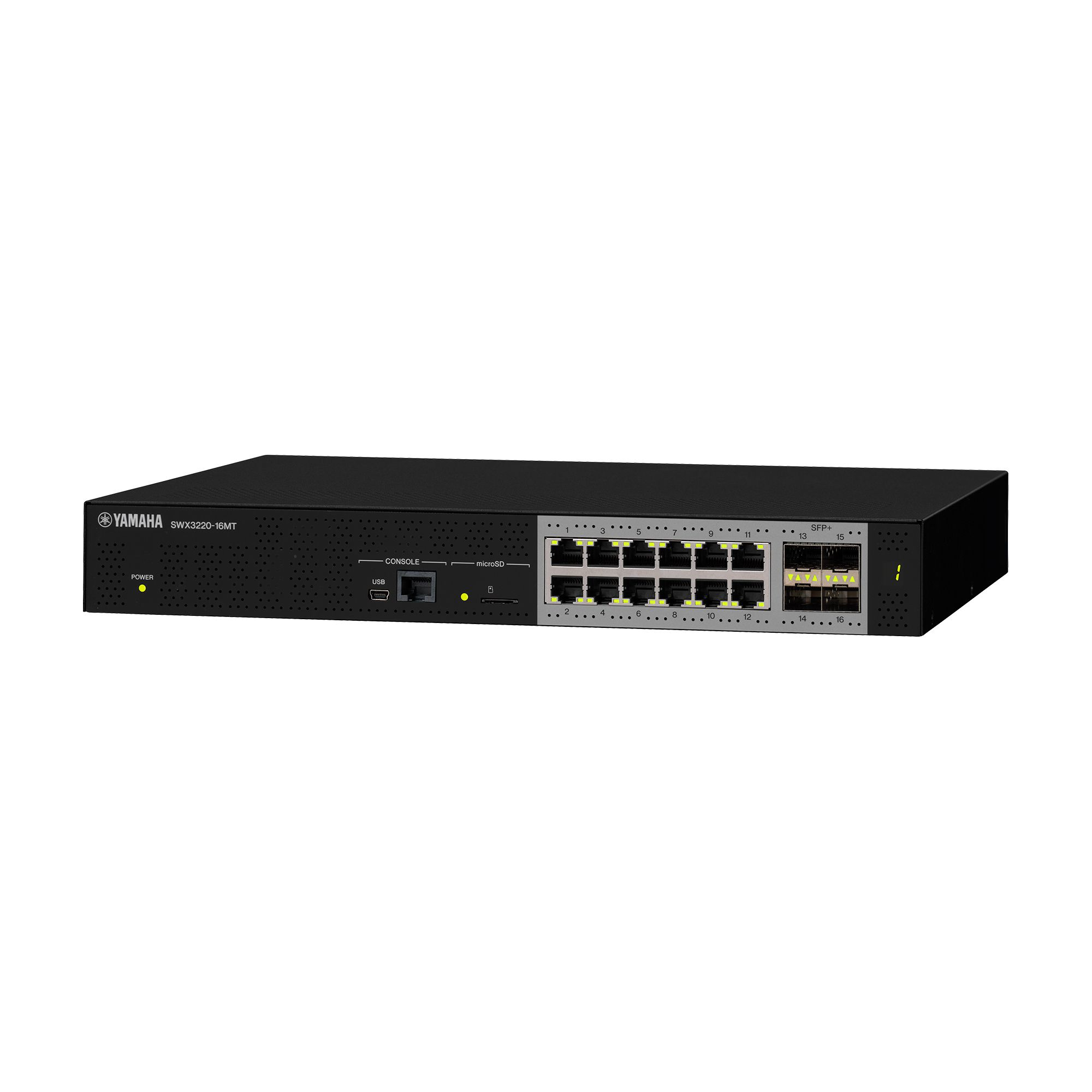

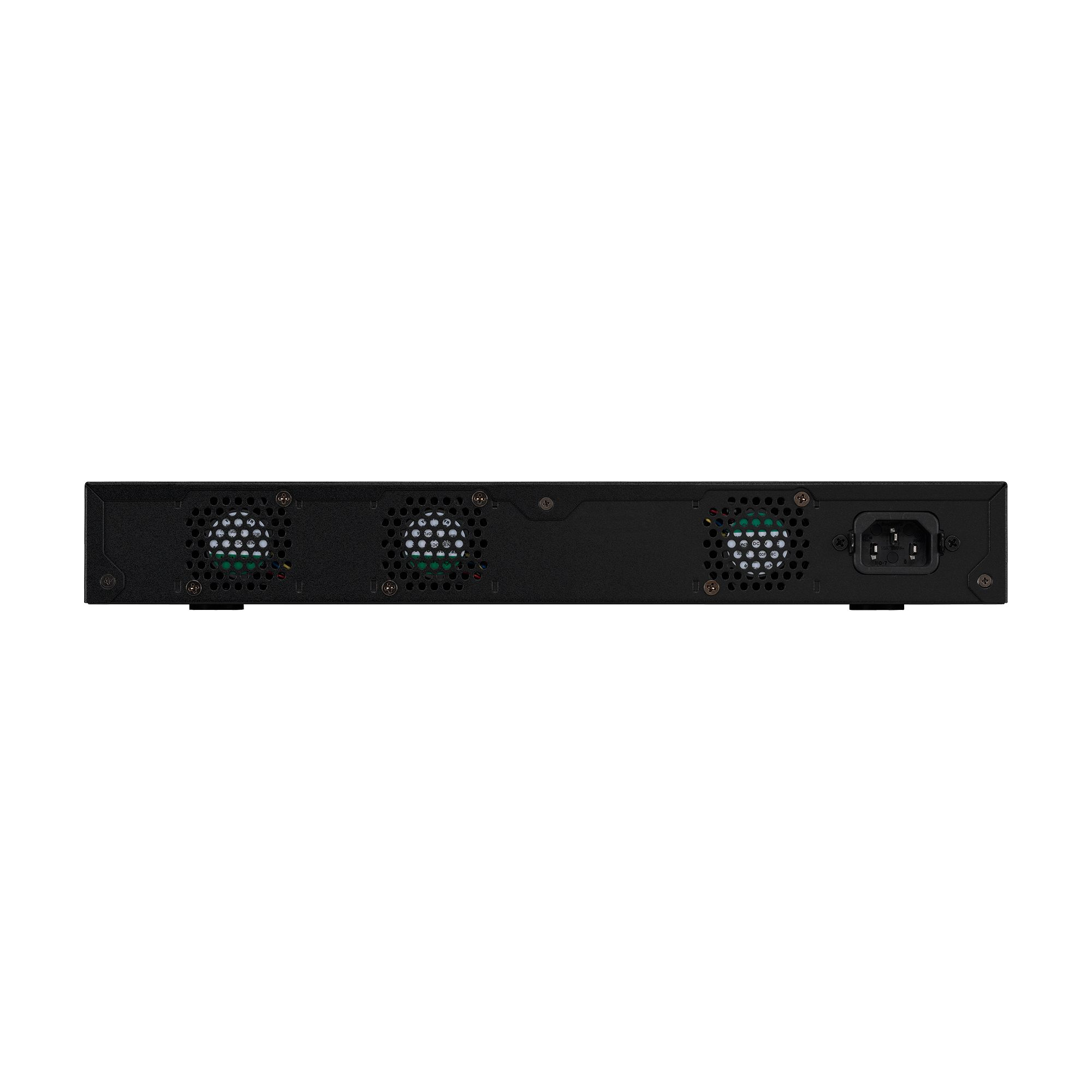

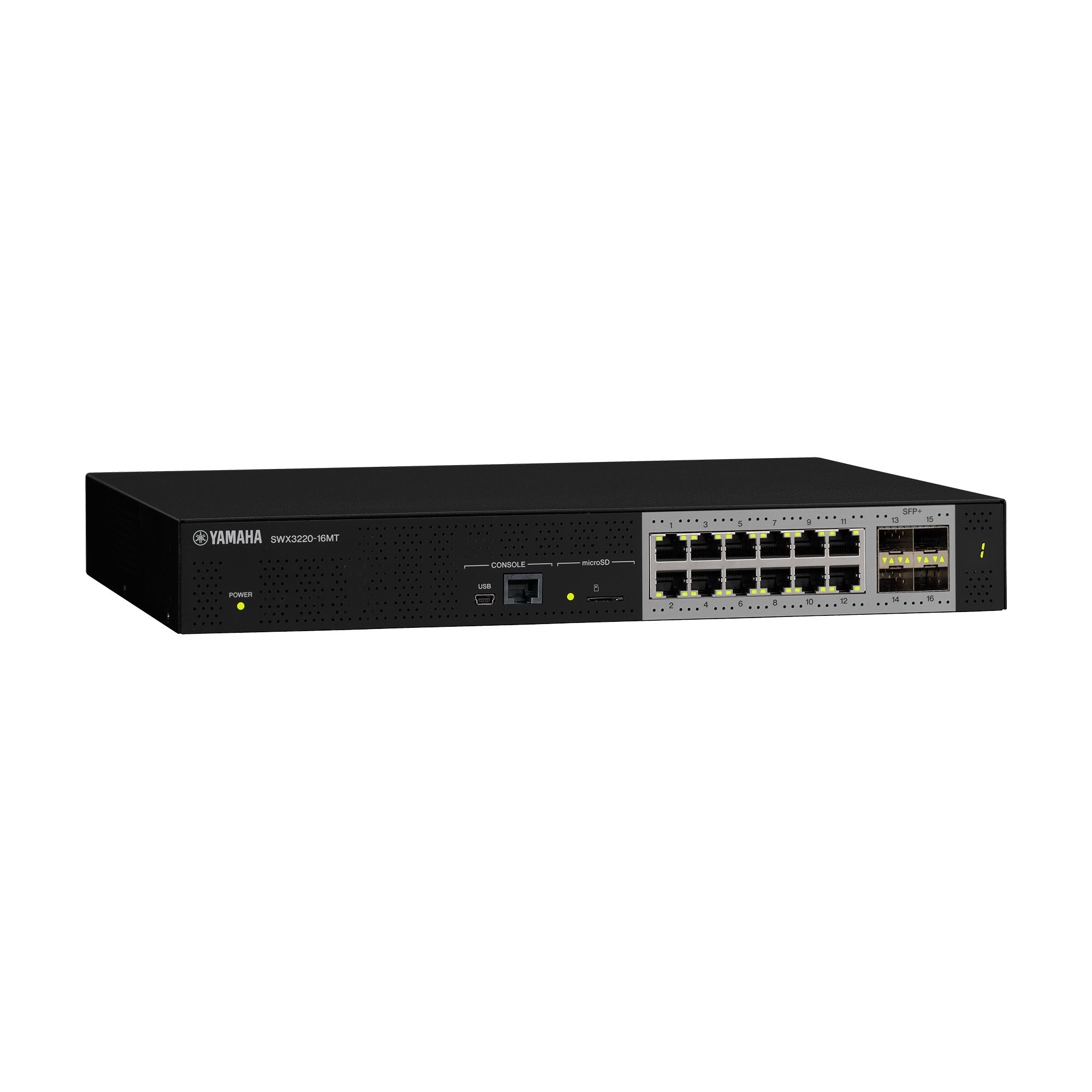

CSWX322016MT network switch Managed L3
10G Ethernet (100/1000/10000) Black
Model CSWX322016MTEAN 4957812665773
25 specifications
- Weight2.7 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- Networking standardsIEEE 802.3
- Rack mountingYes
Overview
- Weight
- 2.7 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Networking standards
- IEEE 802.3
- Rack mounting
- Yes
- Brand
- Yamaha
- Category
- Network Switch
- Model
- CSWX322016MT
- Part number
- CSWX322016MT
- EAN / UPC
- 4957812665773
- Also known as
- Yamaha CSWX322016MT network switch Managed L3 10G Ethernet (100/1000/10000) Black
Specifications
25 specifications in 7 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| 10G support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 2.7 kg |
