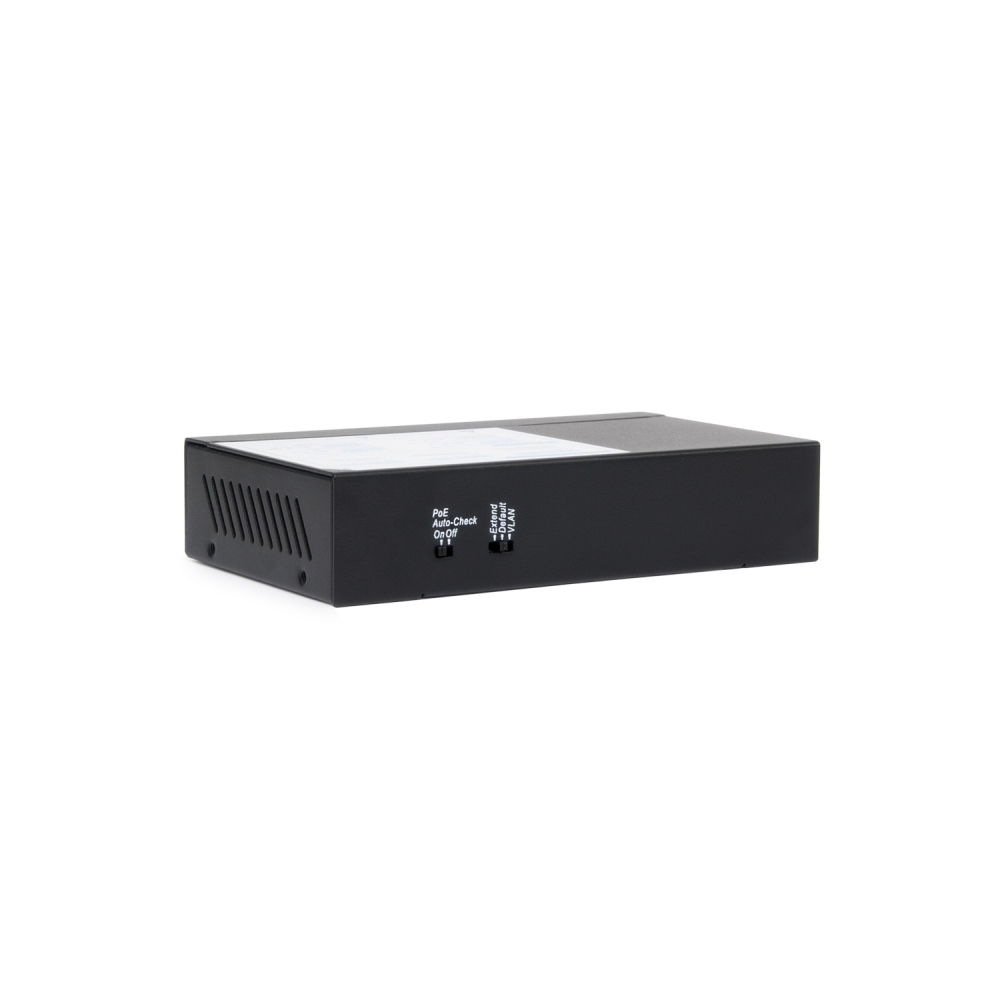

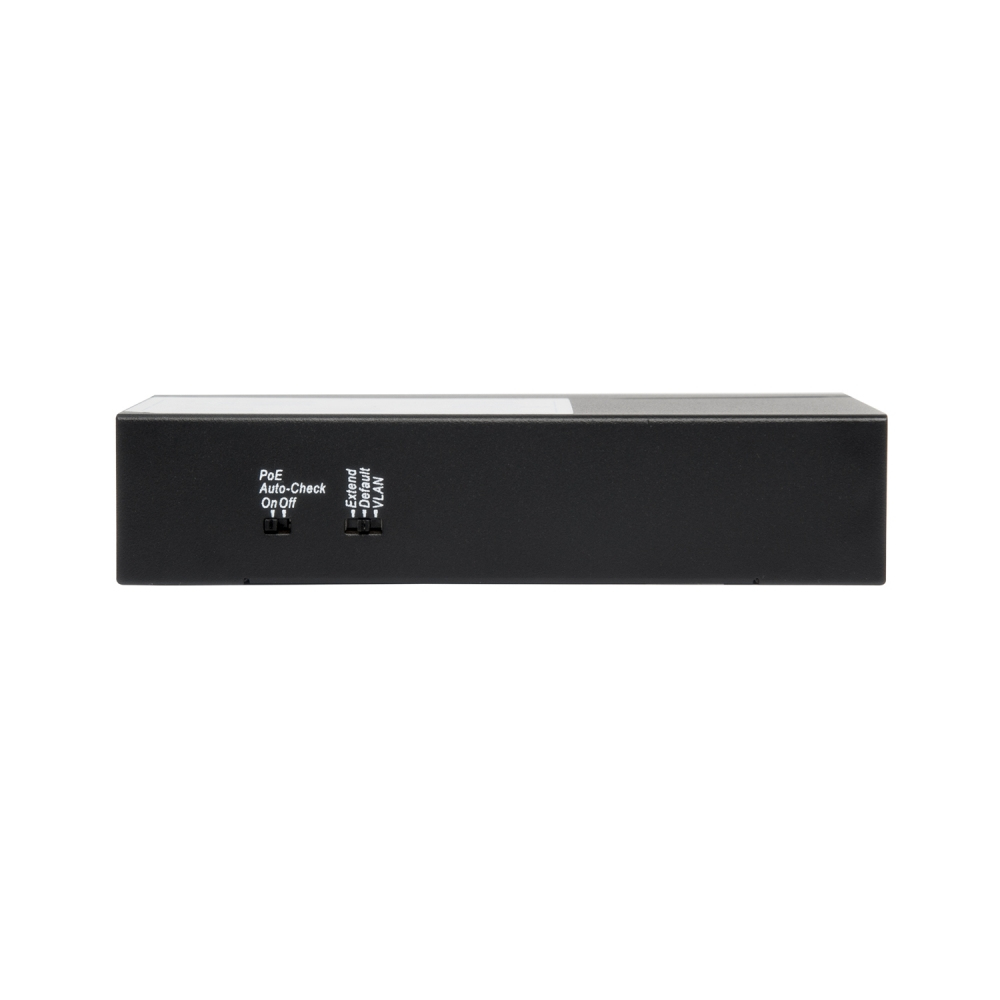

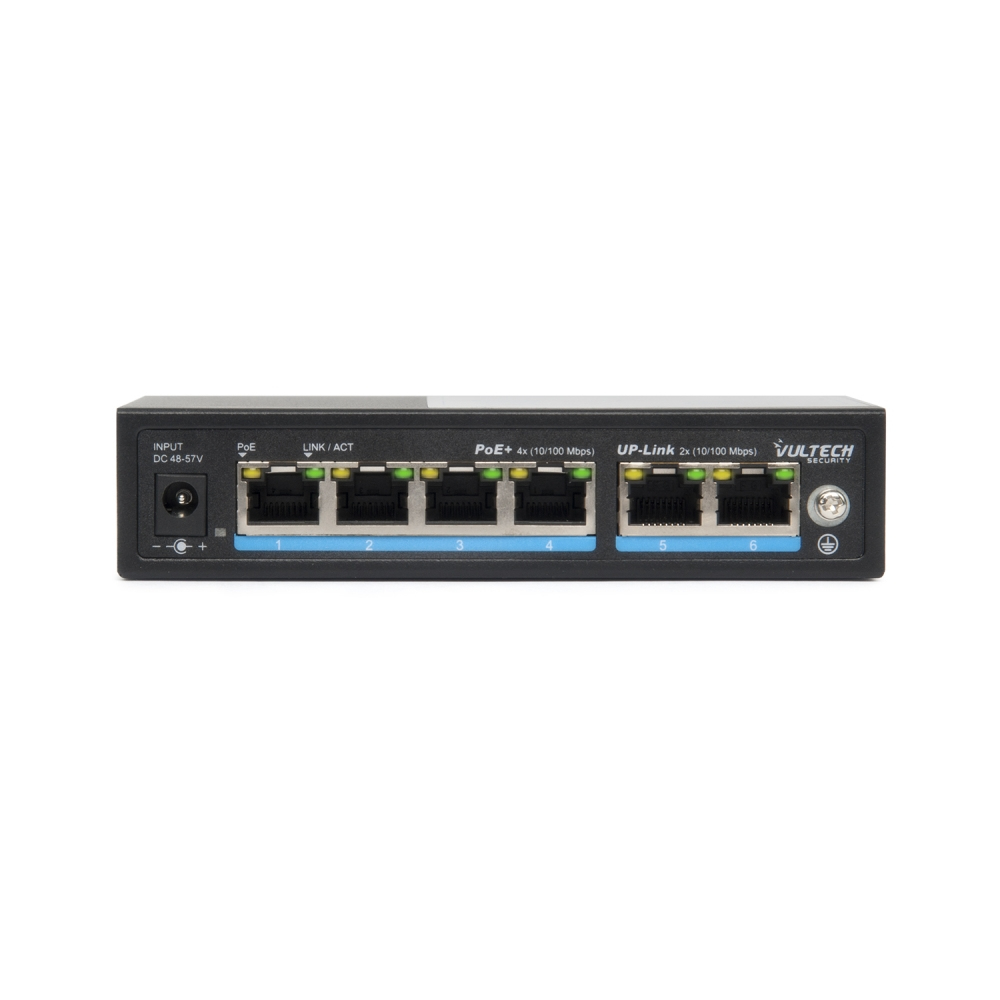

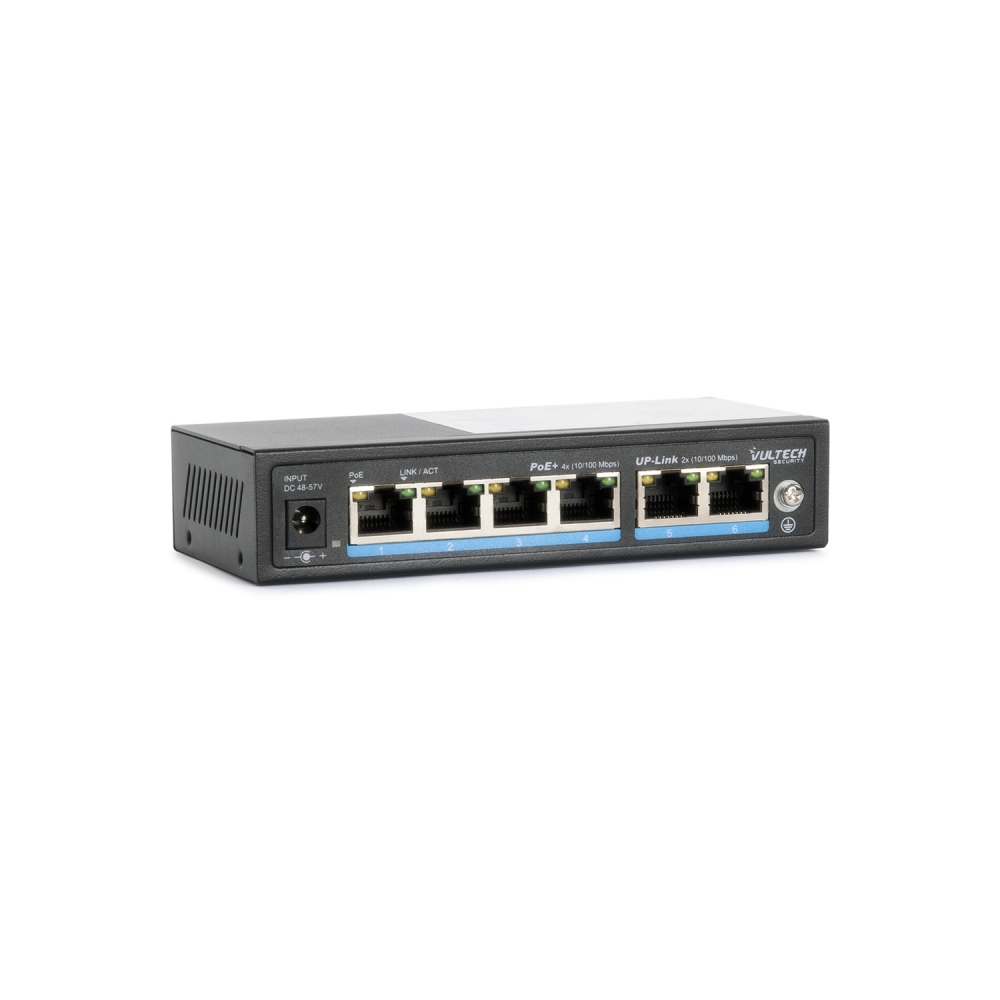

VS-POE2042FE-60W network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model VS-POE2042FE-60WEAN 8052780302500
40 specifications
- Weight300 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity6
- 10G supportNo
- MAC address table1000 entries
Overview
- Weight
- 300 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 6
- 10G support
- No
- MAC address table
- 1000 entries
- Brand
- Vultech Security
- Category
- Network Switch
- Model
- VS-POE2042FE-60W
- Part number
- VS-POE2042FE-60W
- EAN / UPC
- 8052780302500
- Also known as
- Vultech Security VS-POE2042FE-60W network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Cable types supported | Cat5e, Cat6 |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1.2 Gbit/s |
| Throughput | 0.9 Mpps |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Buffer size | 448 KB |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Power supply location | External |
| DC input voltage | 48 - 57 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 136 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Rubber feet | Yes |
| Wall mounting kit | Yes |
