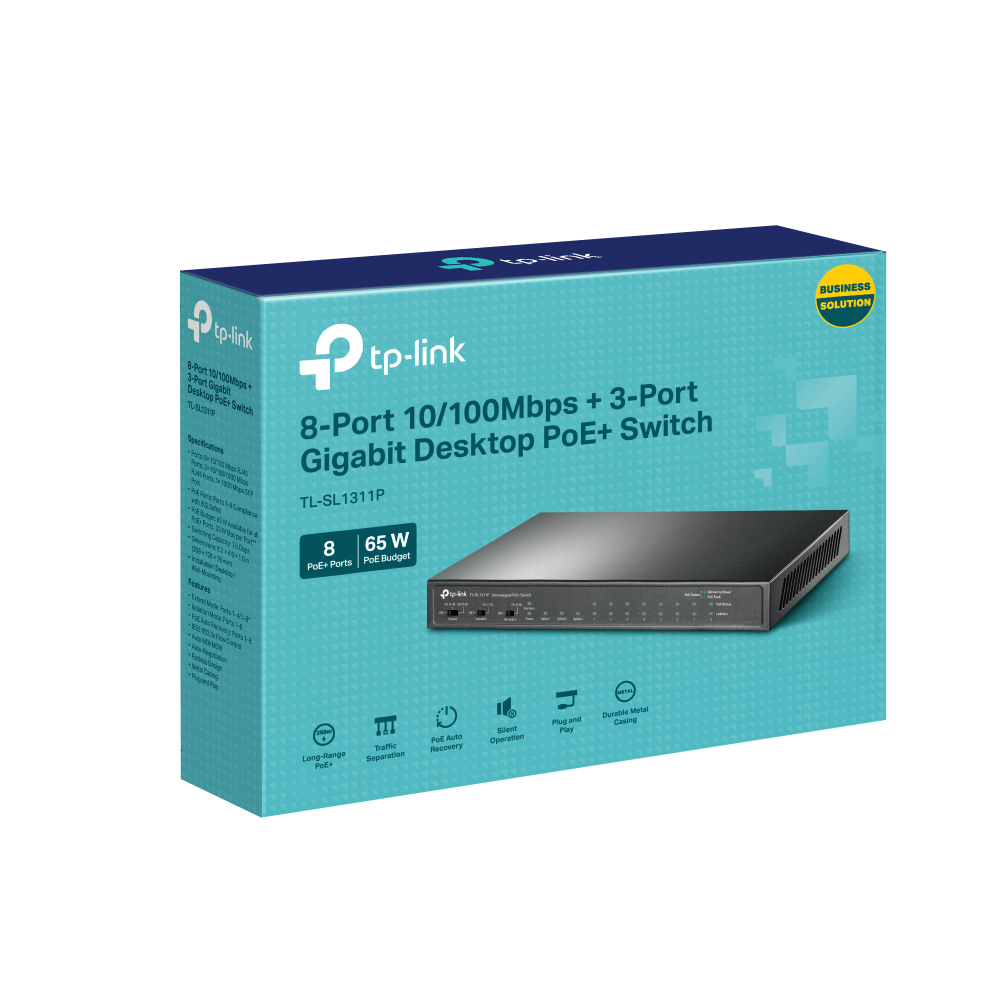

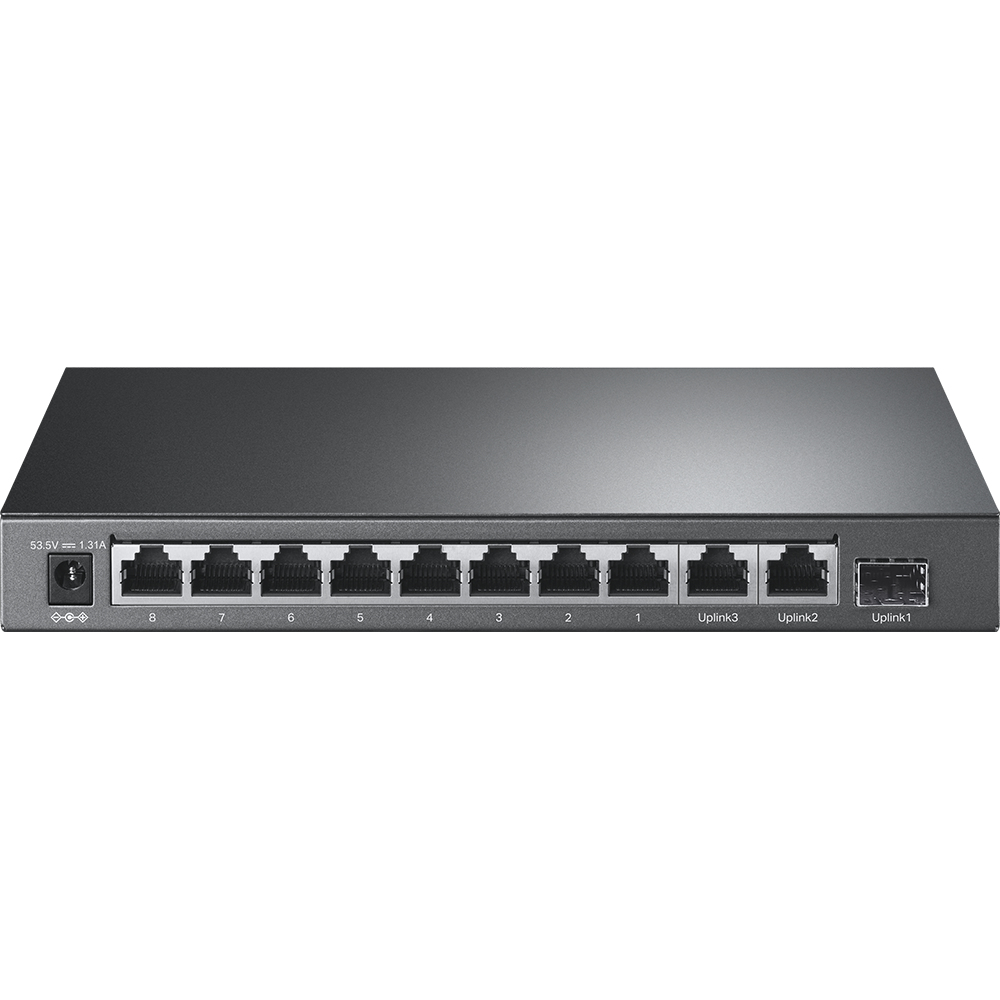

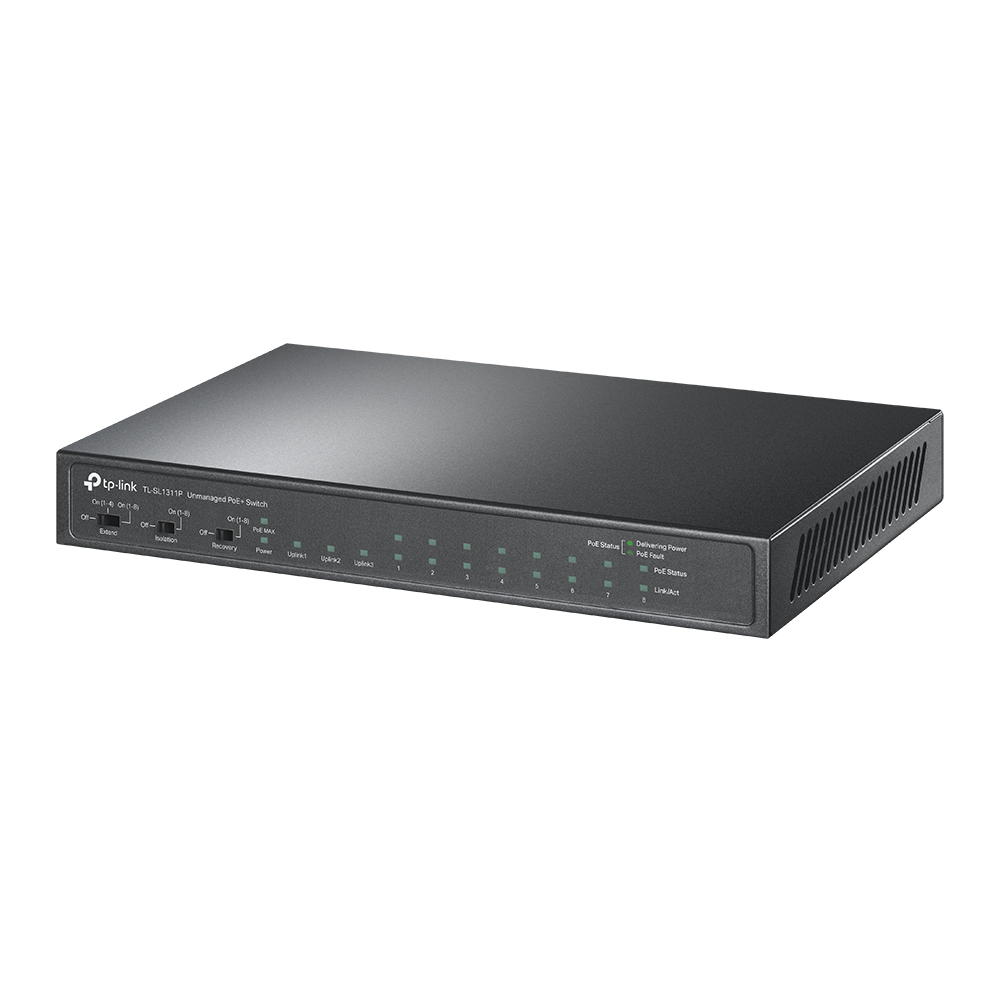

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
Model TL-SL1311PEAN 840030708534
32 specifications
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- Networking standardsIEEE 802.3af, IEEE 802.3at
- MAC address table2000 entries
- Rack mountingNo
- Power sourceAC/DC
Overview
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Networking standards
- IEEE 802.3af, IEEE 802.3at
- MAC address table
- 2000 entries
- Rack mounting
- No
- Power source
- AC/DC
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SL1311P
- Part number
- TL-SL1311P
- EAN / UPC
- 840030708534, 4895252500288, 4895252500295
- Also known as
- TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
Specifications
32 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 7.6 Gbit/s |
| Forwarding rate | 5.6544 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power consumption (max) | 77.32 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
