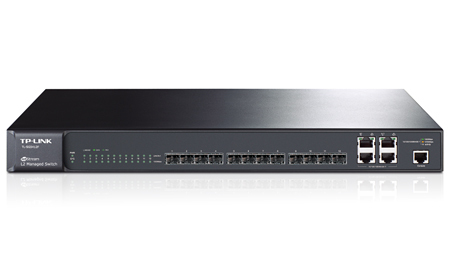

TP-Link TL-SG5412F network switch Managed L2 1U Black

TP-Link TL-SG5412F network switch Managed L2 1U Black

Model TL-SG5412FEAN 5054484227861

64 specifications
  • Speed1 Gbit/s
  • ConnectivityWired
  • Type1U
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity4
See all specifications

Overview

Speed
1 Gbit/s
Connectivity
Wired
Type
1U
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
4
Brand
TP-Link
Model
TL-SG5412F
Part number
TL-SG5412F
EAN / UPC
5054484227861, 031019025029, 084597302112, 115971049429 +10 more
Also known as
TP-Link TL-SG5412F network switch Managed L2 1U Black

Specifications

64 specifications in 17 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity4
Gigabit Ethernet (copper) ports quantity4
SFP module slots quantity12
SFP/SFP+ slots quantity12
Fiber optic connectorSFP
Console portRJ-45
HDMI stacking ports0
PCI-X slots0
ExpressCard slotNo

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes

Optical fiber

Fiber ethernet cabling technology100BASE-FX

Data transmission

MAC address table8000 entries
Supported data transfer rates10, 100,1000Mbps
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithmsSSH, SSL/TLS
Static port securityYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP v1/v2c/v3

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes

Performance

Compatible operating systemsWindows 98SE, NT, 2000, XP, Vista, Windows 7 MAC OS NetWare UNIX Linux
Firmware upgradeableYes

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Management platformSNMP, RMON, WEB/CLI/Telnet
Connectivity technologyWired
Bandwidth24 Gbit/s
Authentication method802.1X, Radius
DiagnosticsVCT
Ethernet LANYes
Fan0
Packet transfer speed17.99Mpps
Wi-FiNo

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth260 mm
Height44 mm

Packaging content

User guideYes

Certificates

CertificationCE, FCC
