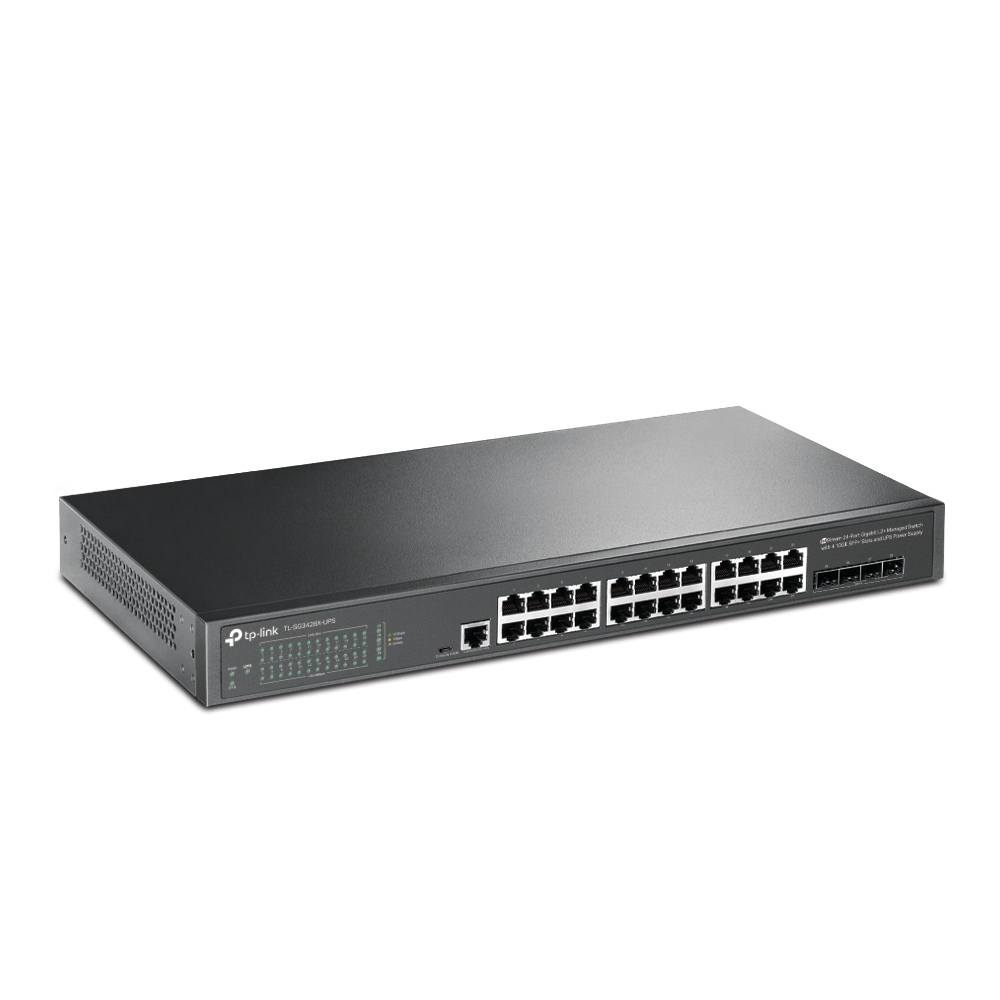

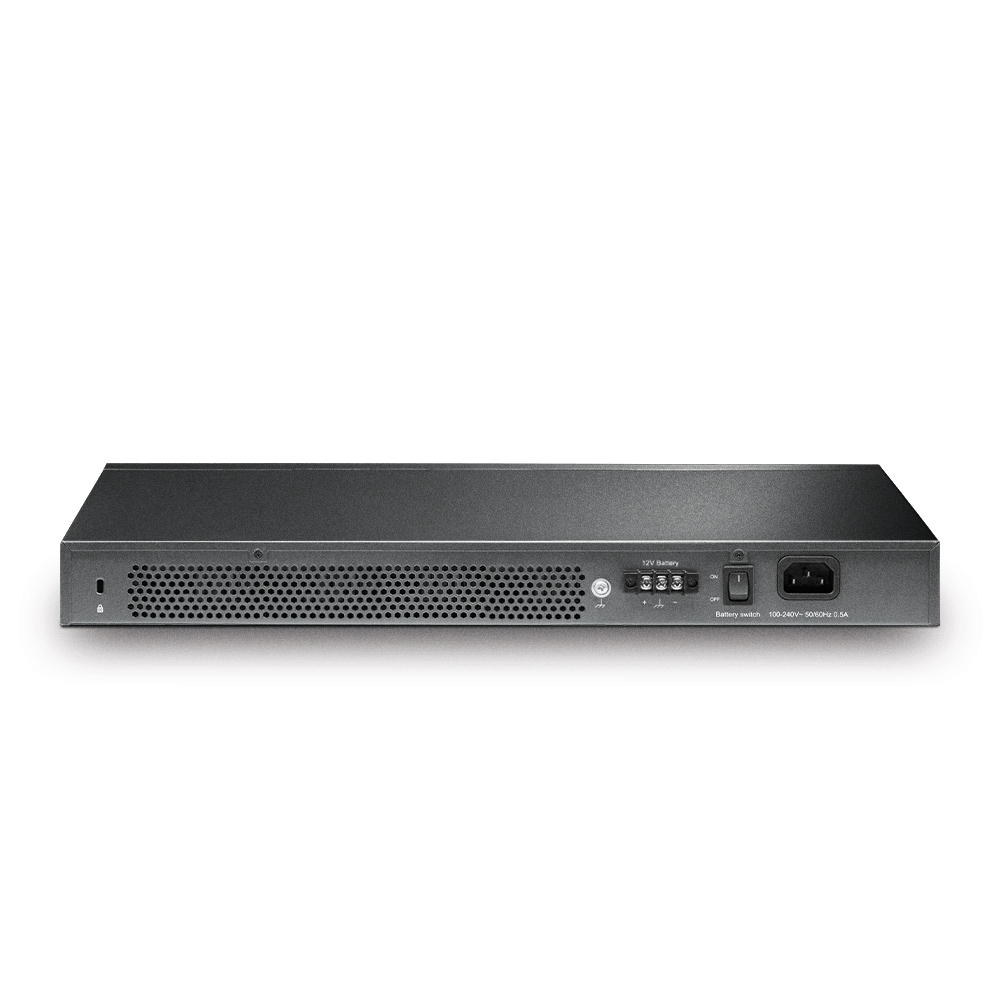

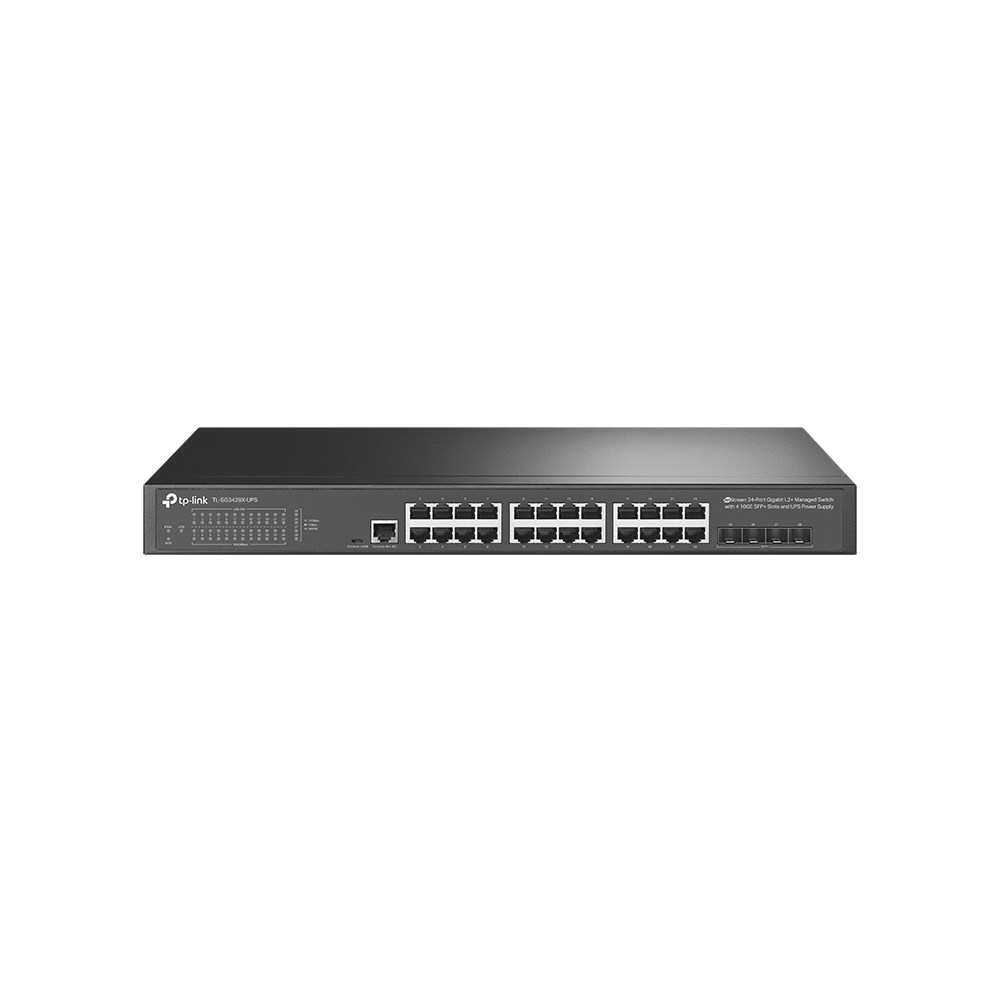

JetStream TL-SG3428X-UPS network switch Managed L2+/L3 Gigabit Ethernet (10/100/1000) 1U Black
Model TL-SG3428X-UPSEAN 4897098687734
81 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
- MAC address table16000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG3428X-UPS
- Part number
- TL-SG3428X-UPS
- EAN / UPC
- 4897098687734
- Also known as
- TP-Link JetStream TL-SG3428X-UPS network switch Managed L2+/L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
81 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | AAA, TACACS+ |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 31.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 108.84 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
