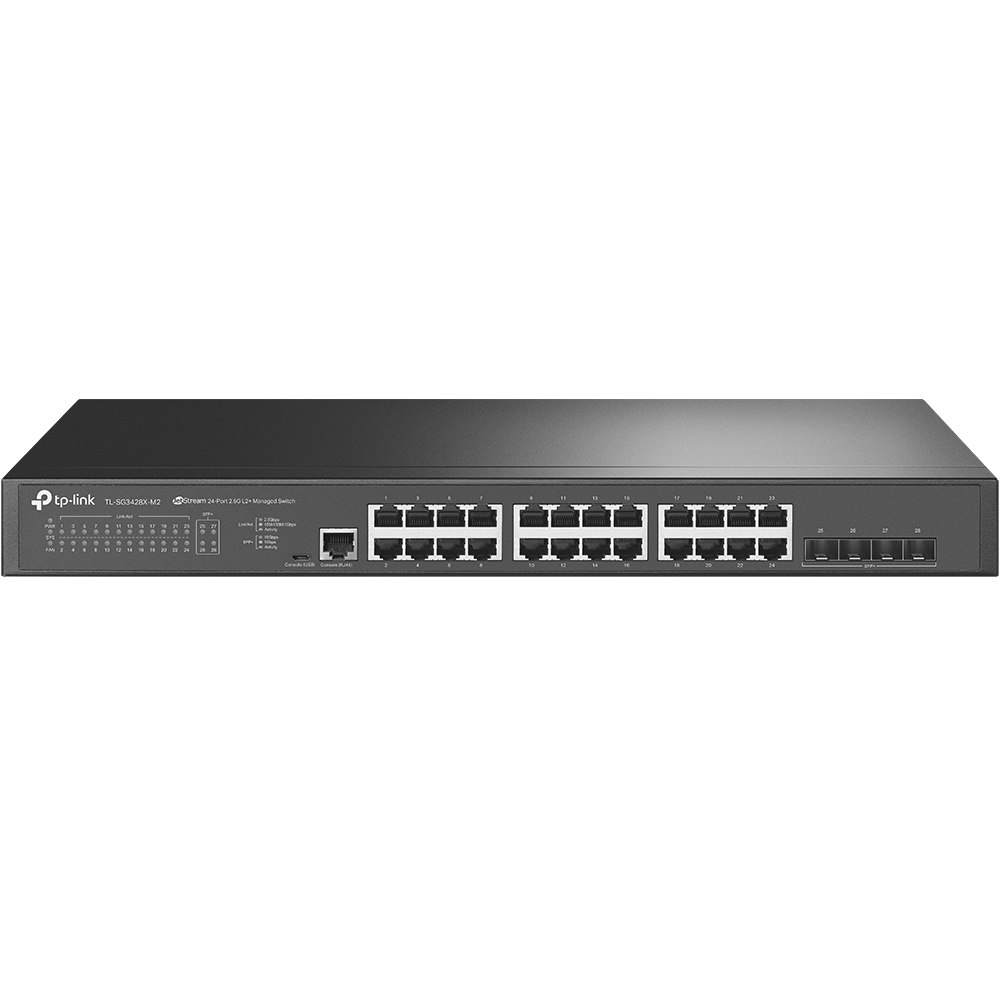

JetStream TL-SG3428X-M2 network switch Managed L2+
2.5G Ethernet (100/1000/2500) 1U Black
Model TL-SG3428X-M2EAN 840030709746
84 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
- MAC address table32000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- MAC address table
- 32000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG3428X-M2
- Part number
- TL-SG3428X-M2
- EAN / UPC
- 840030709746, 4897098689776
- Also known as
- TP-Link JetStream TL-SG3428X-M2 network switch Managed L2+ 2.5G Ethernet (100/1000/2500) 1U Black
Specifications
84 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 200 Gbit/s |
| Forwarding rate | 148.8 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Number of static routes | 48 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | AAA, RADIUS, TACACS+ |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| IPv4 FIB entries | 100 |
| IPv6 FIB entries | 100 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 45.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 154.38 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 528 mm |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package weight | 3 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | CE, FCC, RoHS |
