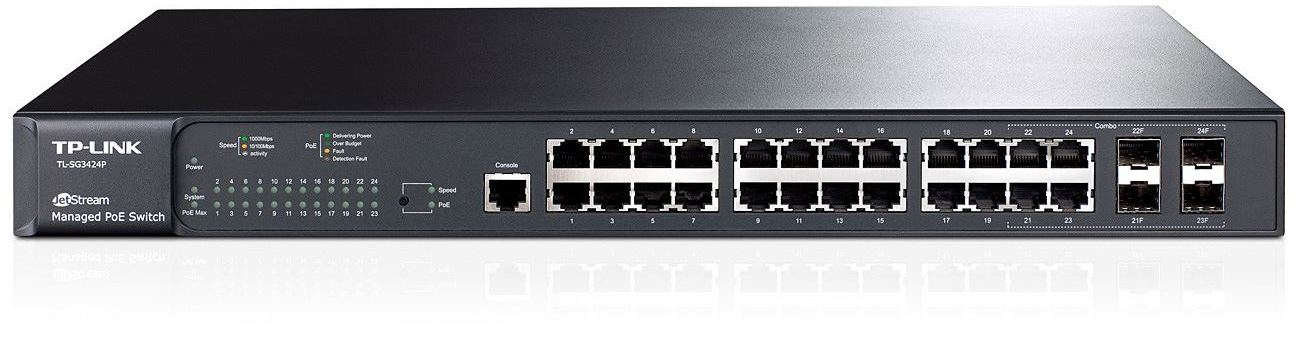

TP-Link JetStream 24-Port Gigabit L2 Managed PoE+ Switch with 4 Combo SFP Slots

Model TL-SG3424PEAN 012951702889

71 specifications

ConnectivityWired
Type1U
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo

See all specifications

Overview

Connectivity: Wired
Type: 1U
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: No

Brand: TP-Link
Category: Network Switch
Model: TL-SG3424P
Part numbers: TL-SG3424P, TL-SG3424P V1
EAN / UPC: 012951702889, 044111484045, 100177370873, 172302835021 +4 more
Also known as: TP-Link JetStream 24-Port Gigabit L2 Managed PoE+ Switch with 4 Combo SFP Slots

Specifications

71 specifications in 18 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Broadcast storm control	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Protocol-based VLAN
Number of VLANs	4000

Optical fiber

Specification	Value
Fiber ethernet cabling technology	100BASE-FX

Data transmission

Specification	Value
MAC address table	8000 entries
Supported data transfer rates	10/100/1000Mbps
Switching capacity	48 Gbit/s
Forwarding rate	35.7 Mpps
Jumbo frames support	Yes
Jumbo frames	10000

Security

Specification	Value
DHCP features	DHCP Option 82, DHCP client, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
Static port security	Yes

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMP v1/v2c/v3

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	3 fan(s)

Performance

Specification	Value
Firmware upgradeable	Yes
Minimum system requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista/Windows 7, MAC OS, NetWare, UNIX or Linux

Power

Specification	Value
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	320 W

Other features

Specification	Value
Connectivity technology	Wired
Cabling technology	10/100/1000BASE-T/X
Ethernet interface type	Gigabit Ethernet

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	330 mm
Height	44 mm

Packaging content

Specification	Value
Cables included	AC

Packaging data

Specification	Value
Package width	528 mm
Package depth	440 mm
Package height	100 mm

Certificates

Specification	Value
Certification	CE, FCC, RoHS
