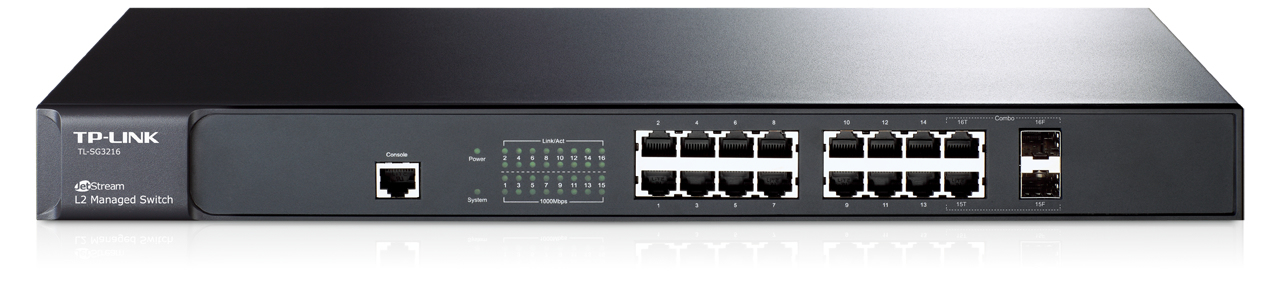

TP-Link JetStream 16-Port Gigabit L2 Managed Network Switch with 2 Combo SFP Slots

Model TL-SG3216EAN 898029647692

72 specifications

Overview

Brand: TP-Link
Category: Network Switch
Model: TL-SG3216
Part numbers: TL-SG3216, TL-SG3216 V1
EAN / UPC: 898029647692, 132018280409, 168141533051, 172302746181 +13 more
Also known as: TP-Link JetStream 16-Port Gigabit L2 Managed Network Switch with 2 Combo SFP Slots

72 specifications in 15 groups

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Console port	RJ-45

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000

Specification	Value
MAC address table	8000 entries
Supported data transfer rates	10/100/1000 Mbps
Switching capacity	32 Gbit/s
Forwarding rate	23.8 Mpps
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Jumbo frames	10240
Packet buffer memory	0.512 MB

Specification	Value
DHCP features	DHCP Option 82, DHCP client, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Static port security	Yes

Specification	Value
Multicast support	Yes

Specification	Value
Firmware upgradeable	Yes
Fanless	Yes
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Specification	Value
Power LED	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Specification	Value
Certification	CE, FCC, RoHS
