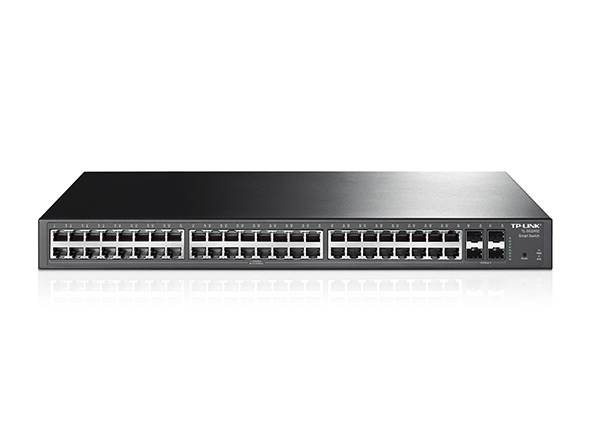

TP-Link TL-SG2452 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

TP-Link TL-SG2452 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Model TL-SG2452EAN 132018307281

61 specifications

Type1U
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48
10G supportNo
MAC address table16000 entries

See all specifications

Overview

Type: 1U
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48
10G support: No
MAC address table: 16000 entries

Brand: TP-Link
Category: Network Switch
Model: TL-SG2452
Part number: TL-SG2452
EAN / UPC: 132018307281, 845973091996, 6935364021375, 8459730213754
Also known as: TP-Link TL-SG2452 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Specifications

61 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
SFP module slots quantity	4
Fiber optic connector	SFP

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Port mirroring	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Number of VLANs	512

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	104 Gbit/s
Throughput	77.4 Mpps
Number of static routes	32
Number of IP interfaces	16
Jumbo frames support	Yes
Jumbo frames	10240

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Port-based authentication
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Security algorithms	802.1x RADIUS, SSH, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMP v1/v2c/v3, Telnet

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)

Performance

Specification	Value
Maximum cable length	100 m

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	40.1 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	220 mm
Height	44 mm

Packaging content

Specification	Value
Cables included	AC
Rack mount kit	Yes

Packaging data

Specification	Value
Resource CD	Yes
