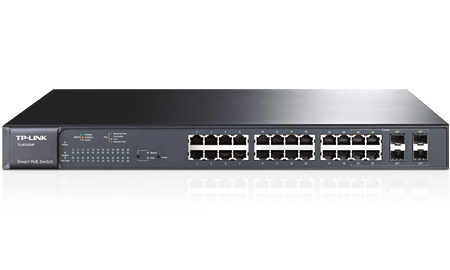

TP-Link TL-SG2424P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-Link TL-SG2424P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Model TL-SG2424PEAN 6935364021405

50 specifications
  • Type1U
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportNo
  • MAC address table8000 entries
See all specifications

Overview

Type
1U
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
No
MAC address table
8000 entries
Brand
TP-Link
Model
TL-SG2424P
Part number
TL-SG2424P
EAN / UPC
6935364021405, 115971623483, 132018353103, 172304354353 +9 more
Also known as
TP-Link TL-SG2424P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Specifications

50 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4

Network

Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs512

Data transmission

MAC address table8000 entries
Switching capacity48 Gbit/s
Number of queues4
Jumbo frames supportYes

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Security algorithmsSSH, SSL/TLS

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans3 fan(s)

Performance

Firmware upgradeableYes

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Total Power over Ethernet (PoE) budget180 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth330 mm
Height44 mm

Packaging content

Cables includedAC
Quick start guideYes

Certificates

CertificationCE, FCC, RoHS
