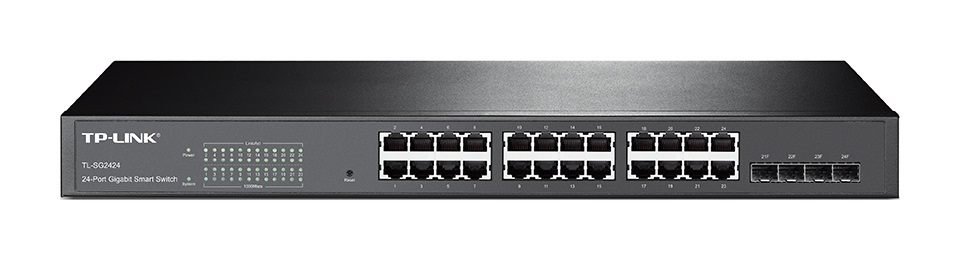

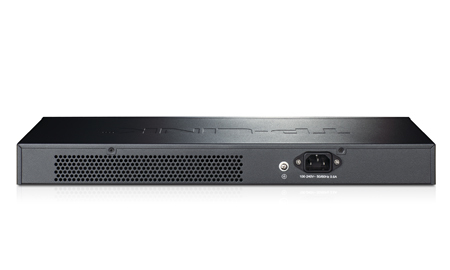

TP-Link TL-SG2424 network switch Managed Black
Model TL-SG2424EAN 8459730211088
46 specifications
- Speed1 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG2424
- Part number
- TL-SG2424
- EAN / UPC
- 8459730211088, 080850499087, 151903616420, 682851729363 +12 more
- Also known as
- TP-Link TL-SG2424 network switch Managed Black
Specifications
46 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 512 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10, 100,1000Mbps |
| Number of queues | 4 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
Other features
| Specification | Value |
|---|---|
| Management platform | WEB/CLI, SNMP, RMON |
| Connectivity technology | Wired |
| Bandwidth | 48 Gbit/s |
| Diagnostics | VCT |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Input frequency | 50/60 Hz |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
