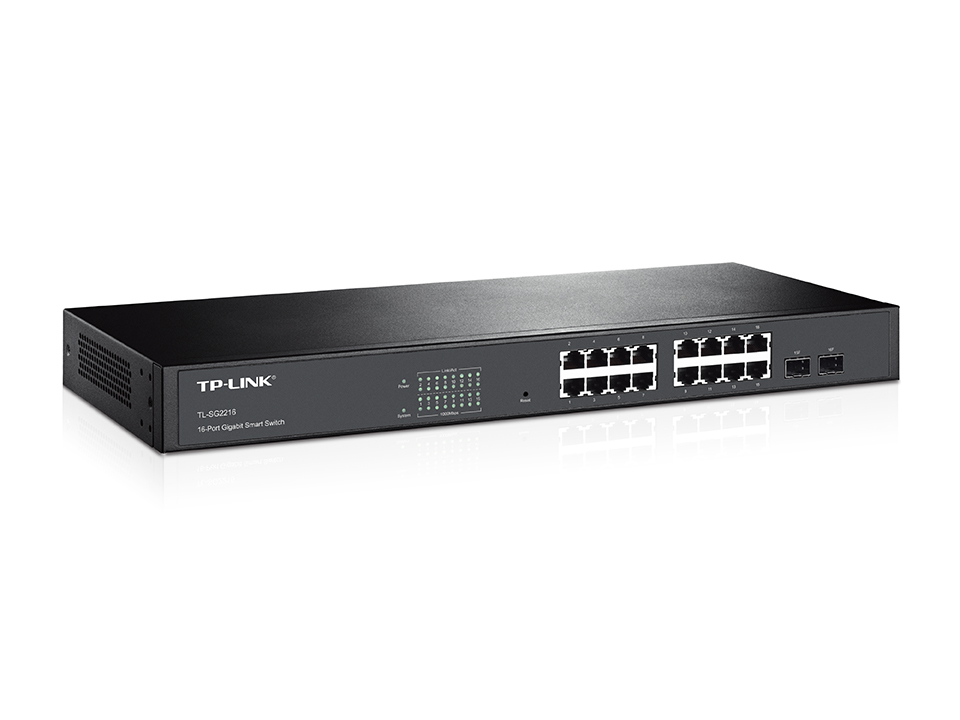

TP-Link JetStream 16-Port Gigabit Smart Network Switch with 2 Combo SFP Slots
Model TL-SG2216EAN 163120541232
63 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table8000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG2216
- Part numbers
- TL-SG2216, TL-SG2216 V1
- EAN / UPC
- 163120541232, 071030304314, 151903616413, 752684733155 +14 more
- Also known as
- TP-Link JetStream 16-Port Gigabit Smart Network Switch with 2 Combo SFP Slots
Specifications
63 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2925 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 512 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mb/s |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMON, GUI, CLI |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Minimum system requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Cabling technology | 10BASE-T/100BASE-TX/1000Base-T |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 528 mm |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package weight | 2.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
