TL-SG2210P V3.20
Model TL-SG2210P V3.20
46 specifications
- Memory256 MB
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8000 entries
Overview
- Memory
- 256 MB
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG2210P V3.20
- Part number
- TL-SG2210P V3.20
- Also known as
- TP-Link TL-SG2210P V3.20 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
46 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|

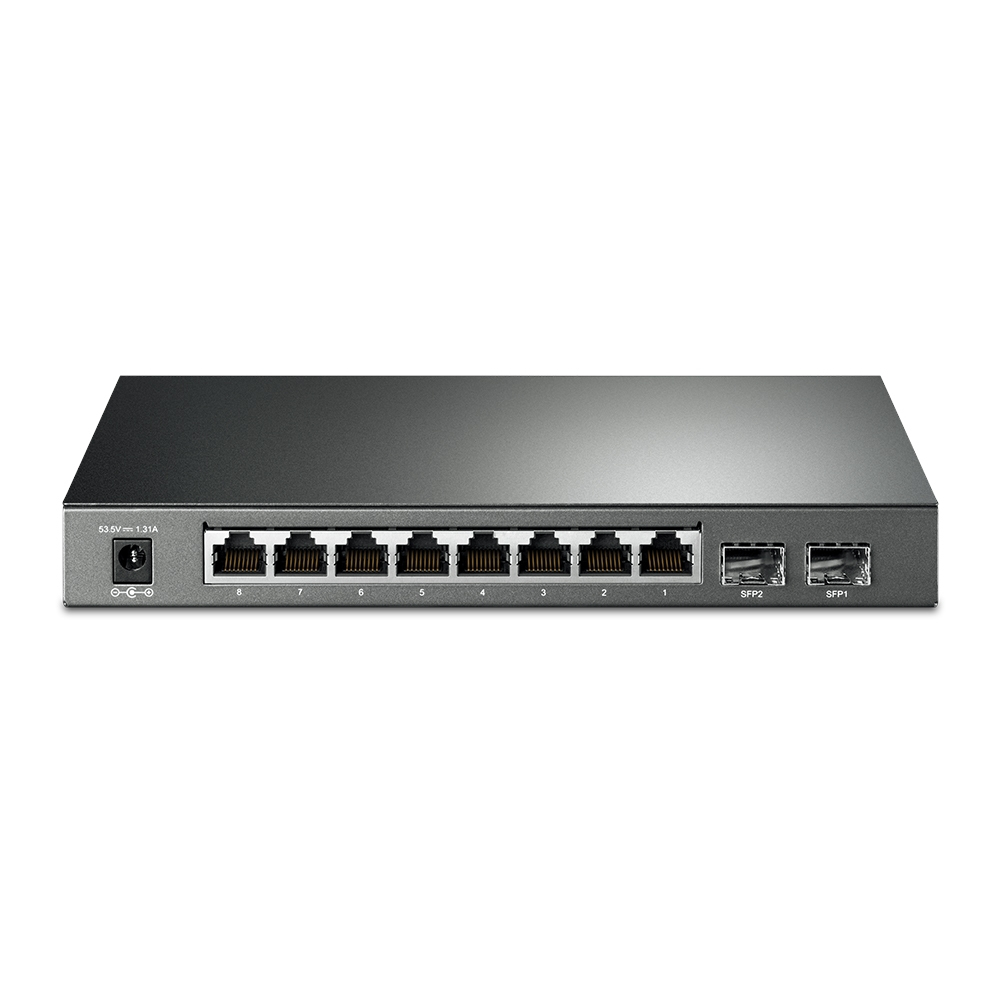

| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Cable types supported | Cat5, Cat5e |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 14.88 pps |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCPv6 server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| IPv6 multicast entries | 183 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 54 V |
| Input current | 1.3 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 61 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 261.02 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
