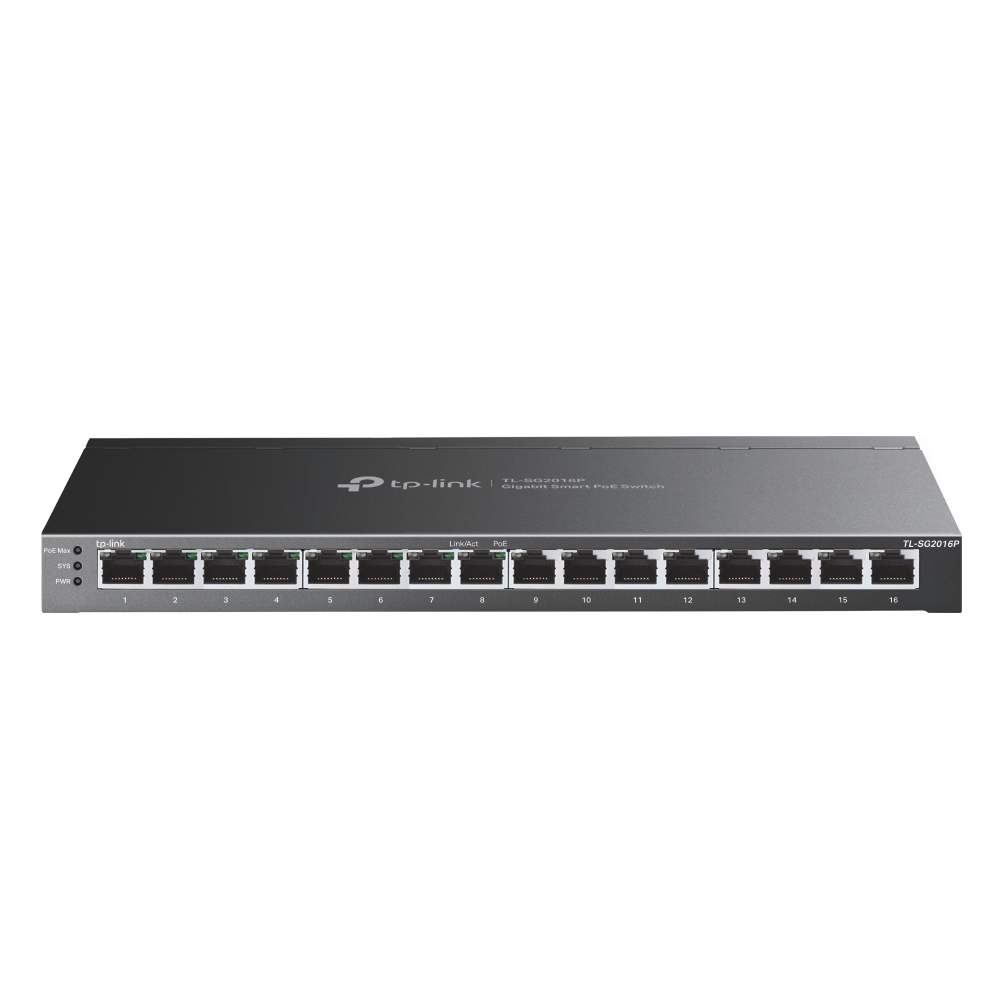

JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
Model TL-SG2016PEAN 840030709494
78 specifications
- ColourBlack
- Switch layerL2/L3/L4
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table8000 entries
- Access Control List (ACL)Yes
Overview
- Colour
- Black
- Switch layer
- L2/L3/L4
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 8000 entries
- Access Control List (ACL)
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG2016P
- Part number
- TL-SG2016P
- EAN / UPC
- 840030709494, 4897098689349
- Also known as
- TP-Link JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
Specifications
78 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| MAC address filtering | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Supported network protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | PoE, Power, System |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Minimum system requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) | 146.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 499.98 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 227 mm |
| Package depth | 434 mm |
| Package height | 70 mm |
| Package weight | 1.94 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
