10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Model TL-SG1210MPEEAN 6935364052676
45 specifications
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity9
- 10G supportNo
- MAC address table4000 entries
- IGMP snoopingYes
Overview
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- No
- MAC address table
- 4000 entries
- IGMP snooping
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG1210MPE
- Part number
- TL-SG1210MPE
- EAN / UPC
- 6935364052676, 840460604123, 845973099565, 1210002617048 +3 more
- Also known as
- TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Specifications
45 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Input current | 2.43 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |

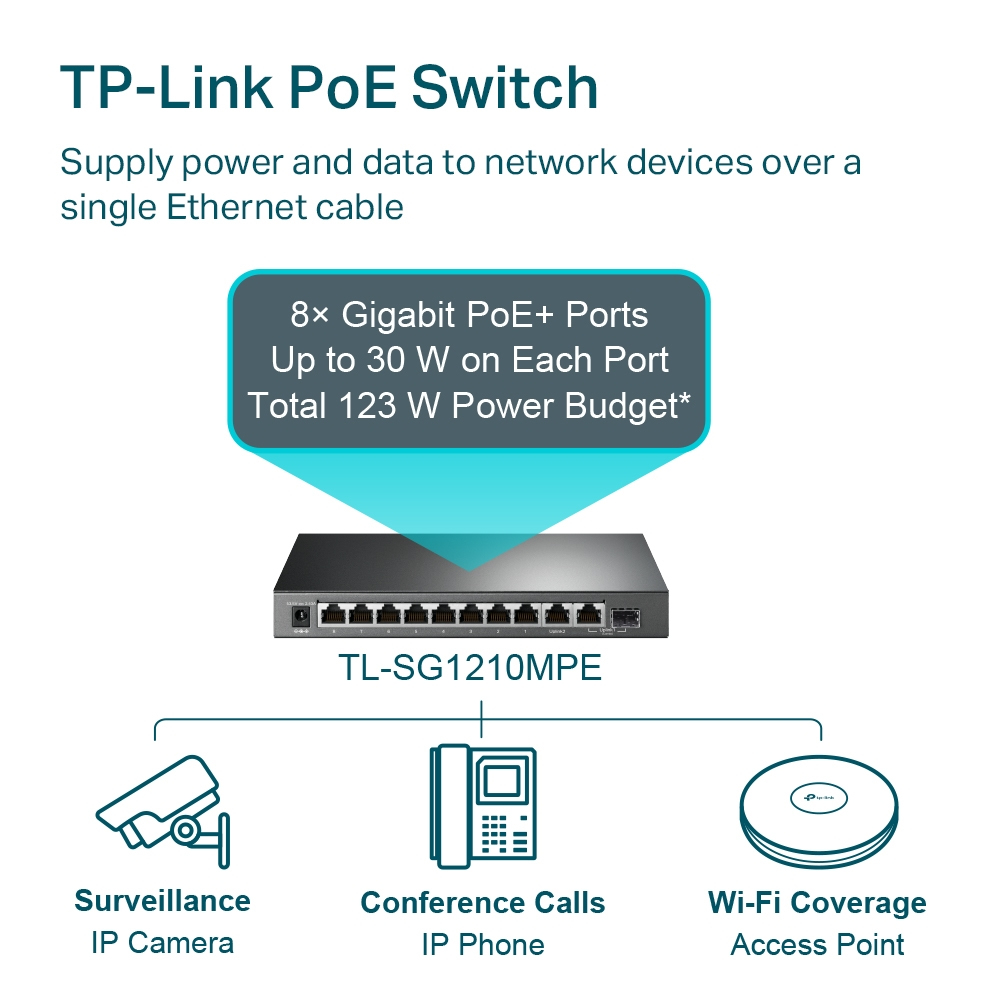

| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 240 mm |
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 1.58 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
