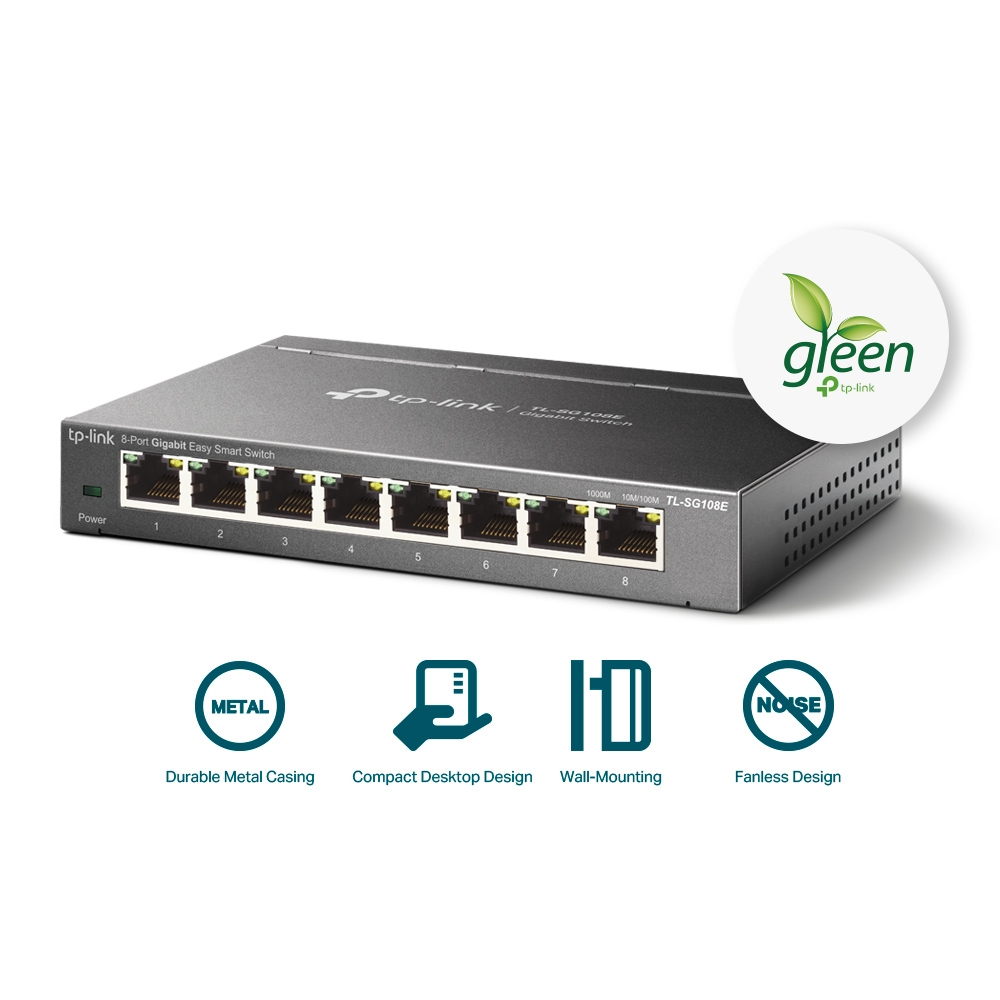

8-Port Gigabit Easy Smart Switch
Model TL-SG108EEAN 6355052070018
53 specifications
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4000 entries
- IGMP snoopingYes
Overview
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4000 entries
- IGMP snooping
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG108E
- Part numbers
- TL-SG108E, TL-SG108E V5
- EAN / UPC
- 6355052070018, 845973021856, 6935364021856, 6935364021863 +14 more
- Also known as
- TP-Link 8-Port Gigabit Easy Smart Switch
Specifications
53 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

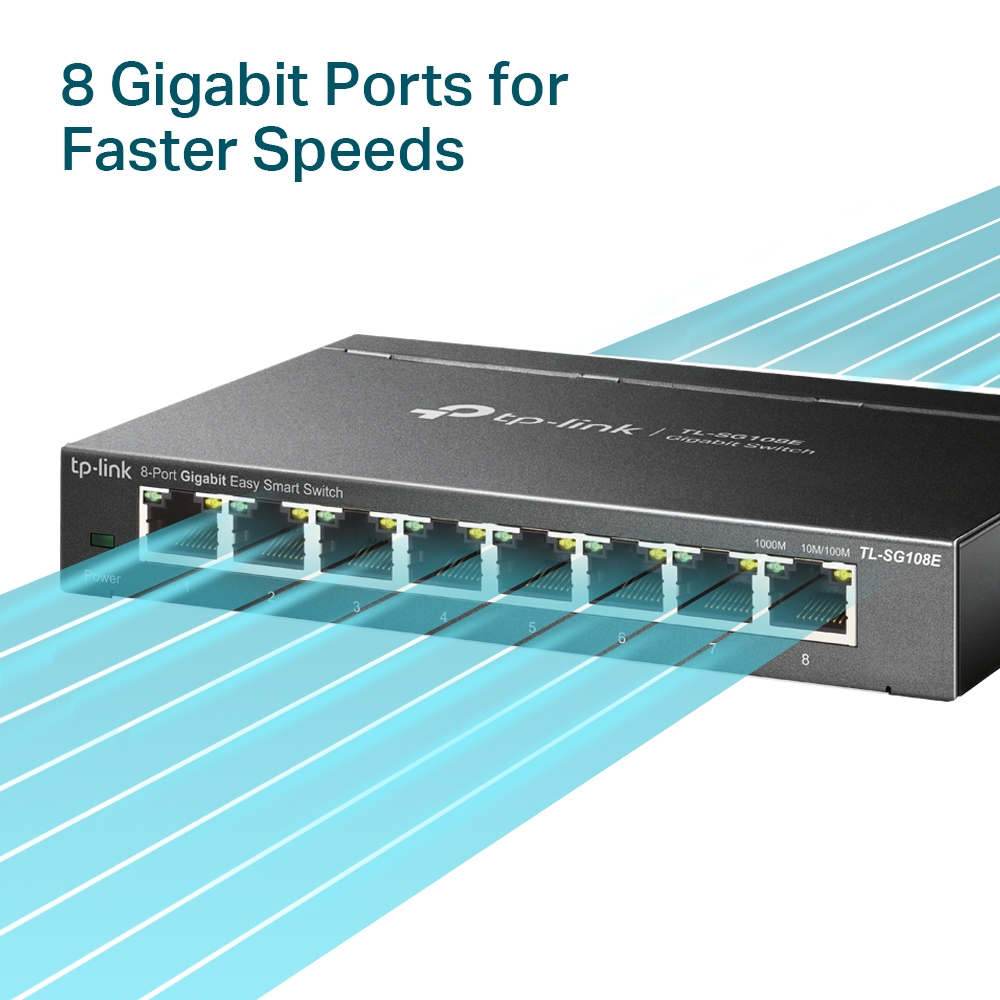

| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|

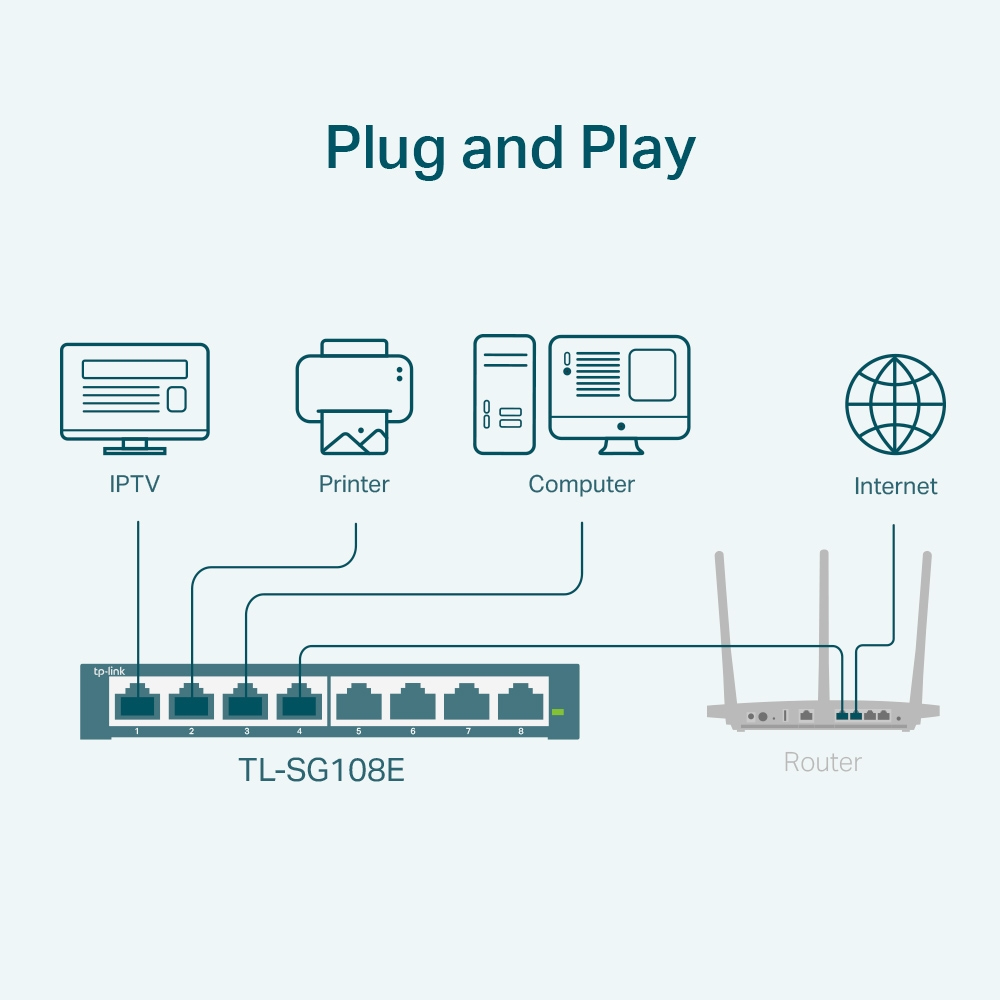

| Plug and Play | Yes |

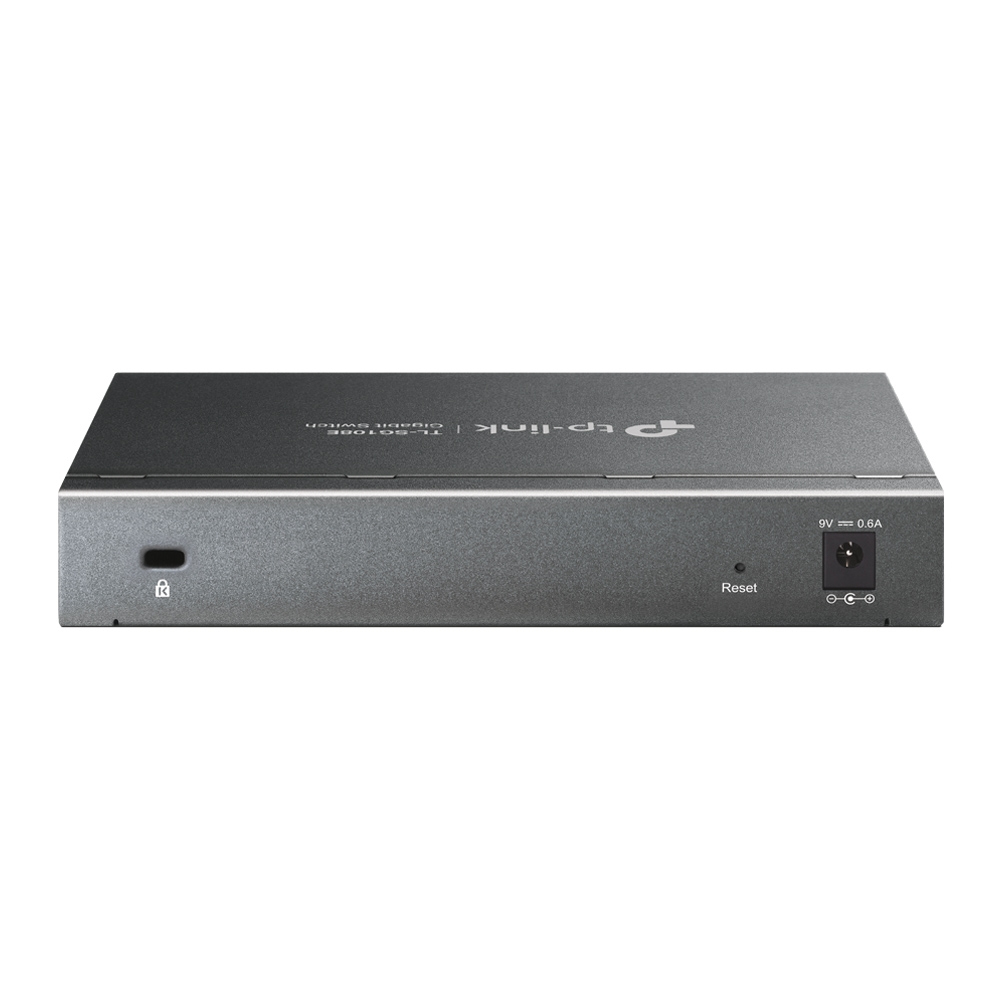

Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 9 V |
| Power consumption (max) | 3.55 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 12.12 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 130 mm |
| Package depth | 191 mm |
| Package height | 92 mm |
| Package weight | 630 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
