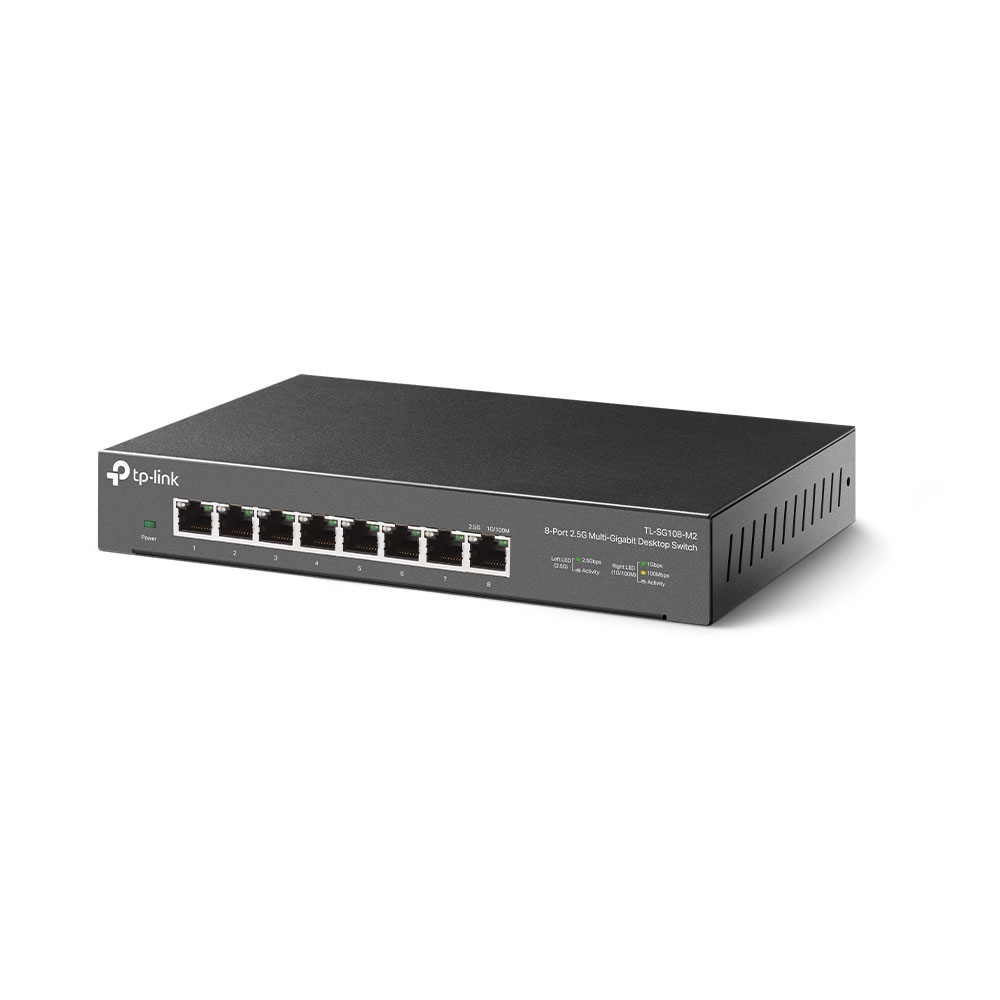

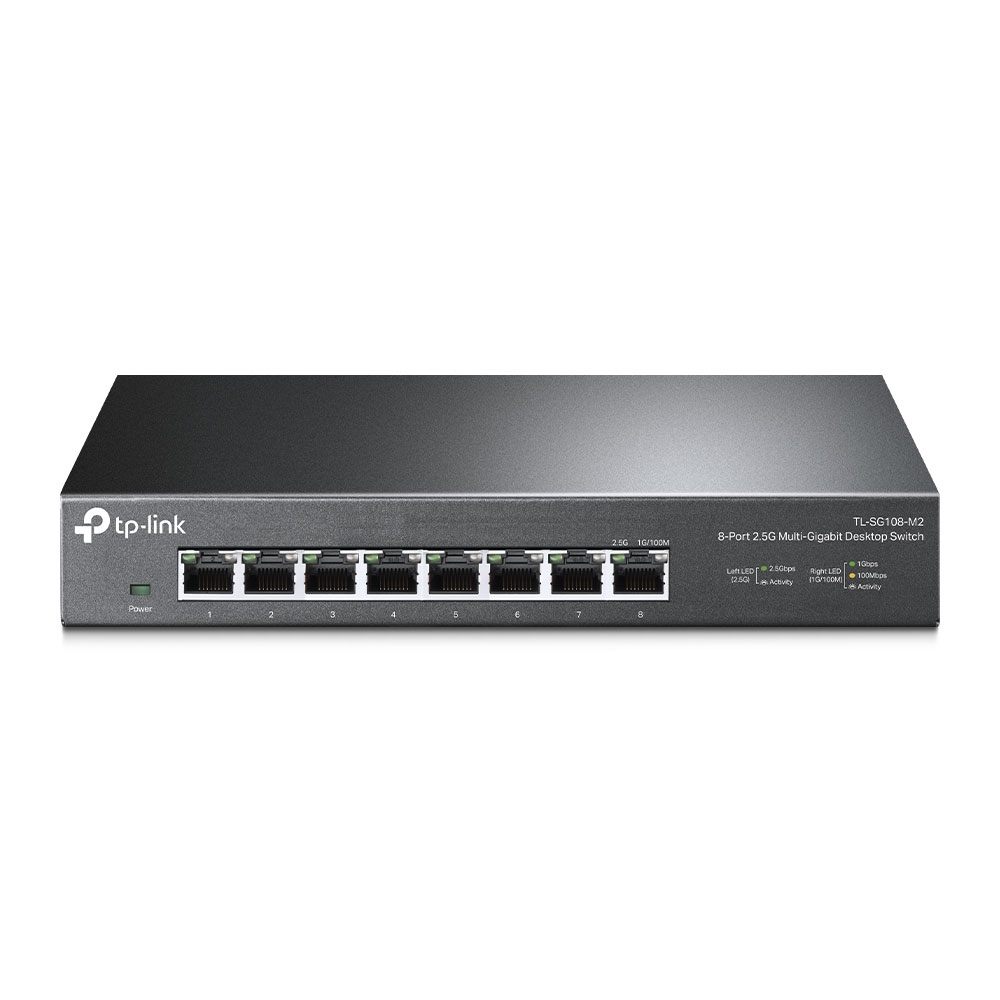

8-Port 2.5G Desktop Switch
Model TL-SG108-M2EAN 6935364052911
43 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table16000 entries
- FanlessYes
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 16000 entries
- Fanless
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG108-M2
- Part number
- TL-SG108-M2
- EAN / UPC
- 6935364052911, 840460605342, 845973089764, 1210002612678 +2 more
- Also known as
- TP-Link 8-Port 2.5G Desktop Switch
Specifications
43 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 29.8 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|

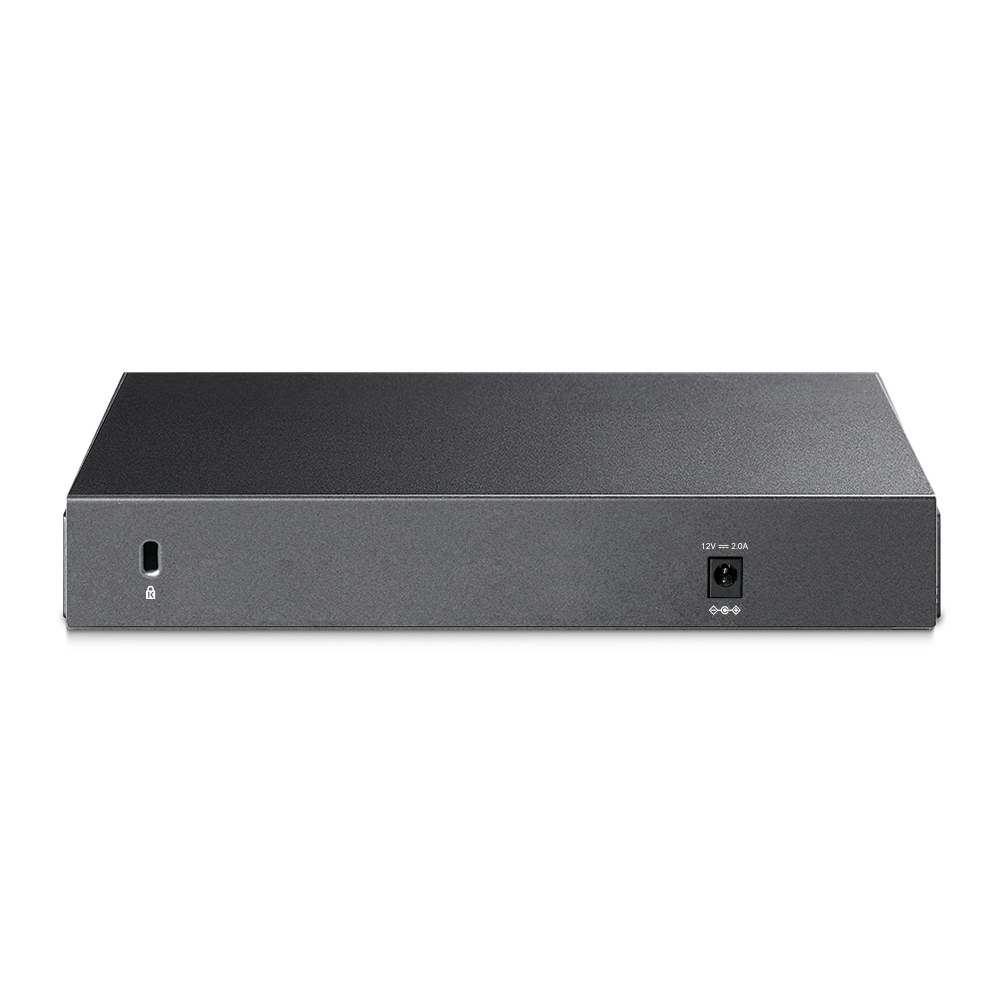

| Power source | DC |
| Power supply included | Yes |
| Input current | 1.5 A |
| Input voltage | 12 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 53.4 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 240 mm |
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 1.35 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
