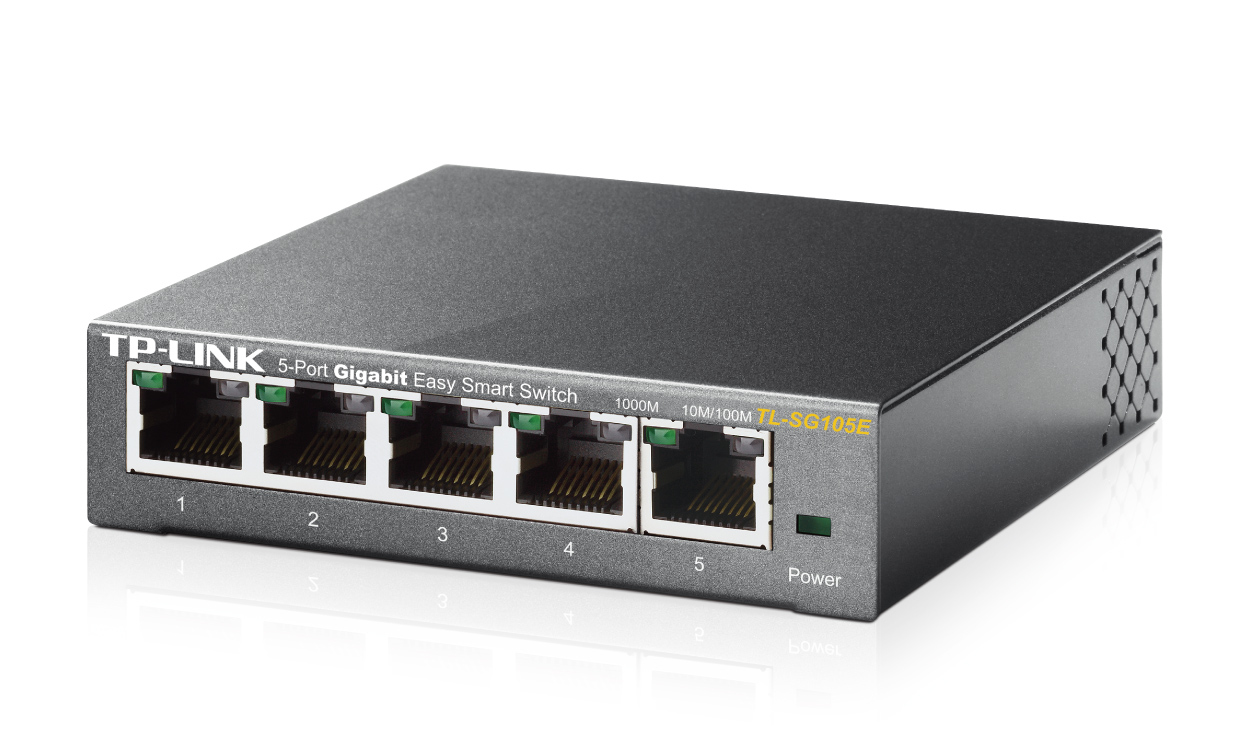

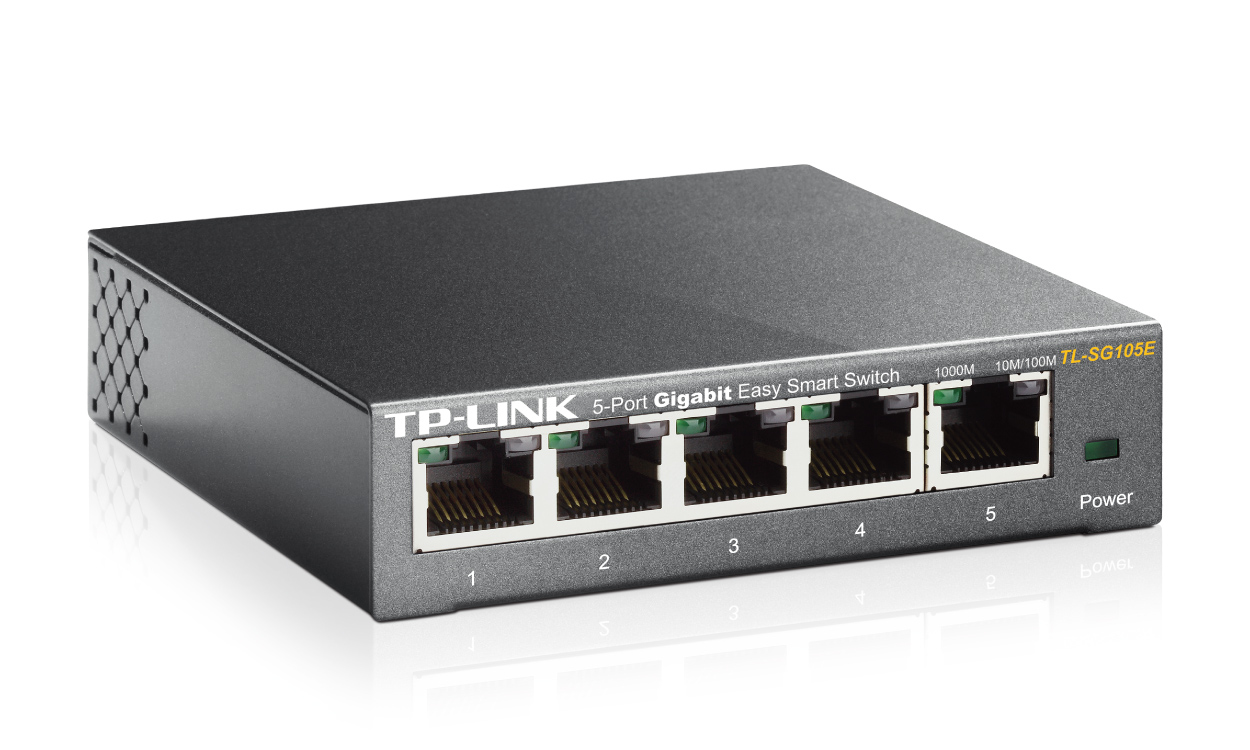

5-Port Gigabit Easy Smart Switch
Model TL-SG105EEAN 5054629497074
55 specifications
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
- IGMP snoopingYes
Overview
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- IGMP snooping
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG105E
- Part numbers
- TL-SG105E, TL-SG105E V5, TL-SG105E V2
- EAN / UPC
- 5054629497074, 845973022037, 6935364022037, 6935364022044 +13 more
- Also known as
- TP-Link 5-Port Gigabit Easy Smart Switch
Specifications
55 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 2.82 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 9.07 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 125 mm |
| Package depth | 128 mm |
| Package height | 92 mm |
| Package weight | 449 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
