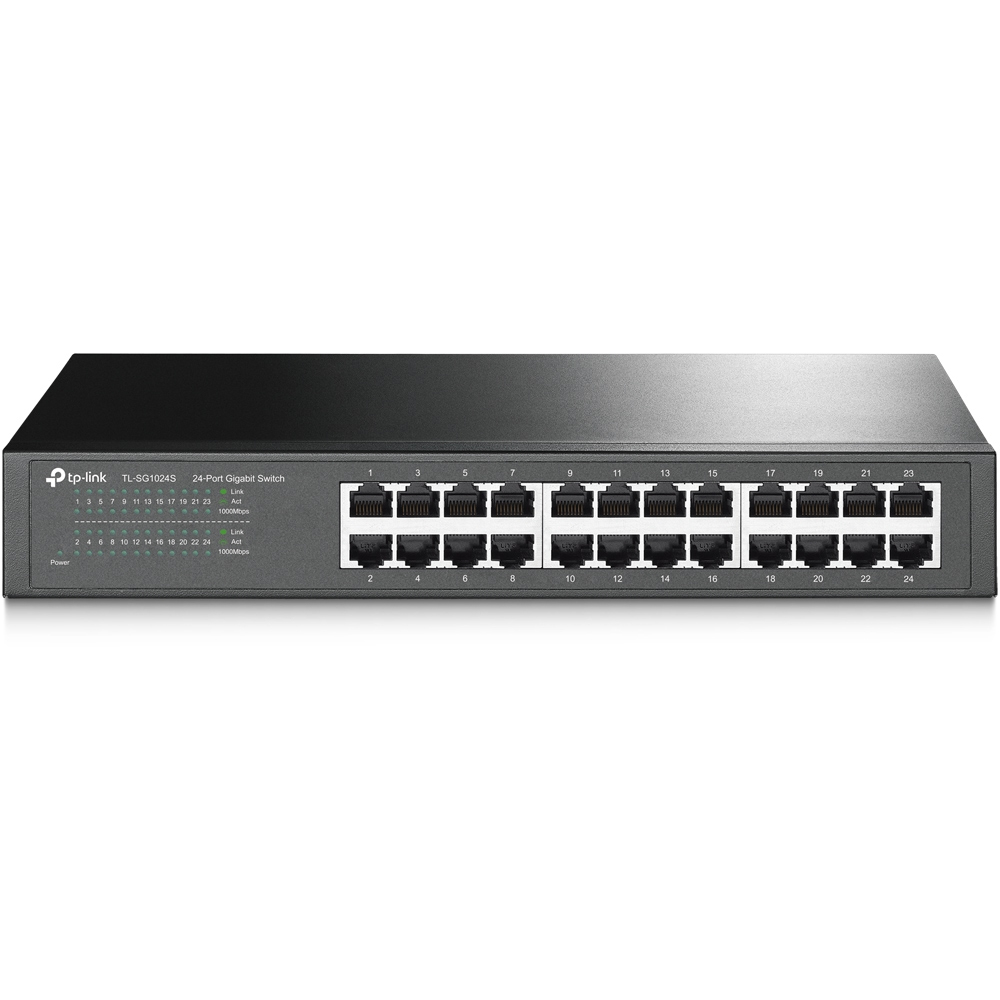

TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Model TL-SG1024SEAN 840460604024
32 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
- Maximum cable length100 m
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Maximum cable length
- 100 m
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG1024S
- Part number
- TL-SG1024S
- EAN / UPC
- 840460604024, 845973083540, 6935364083540
- Also known as
- TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
32 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Jumbo frames support | Yes |
| Jumbo frame range | 0 - 10000 B |
| Packet forwarding | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum cable length | 100 m |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 13.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
What people say
Reviews & ratings
TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
No reviews yet
Be the first to tell others how TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
All network switch comparisons- TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black vsTP-Link TL-SG1016S network switch Unmanaged Gigabit Ethernet (10/100/1000) BlackCompare specs
- TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black vsTP-Link 16-Port Gigabit Unmanaged Pro SwitchCompare specs
- TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black vsTP-Link JetStream 8-Port Gigabit Smart Network SwitchCompare specs
- TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black vsTP-Link 8-Port 10/100Mbps Desktop PoE Switch with 4-PortCompare specs

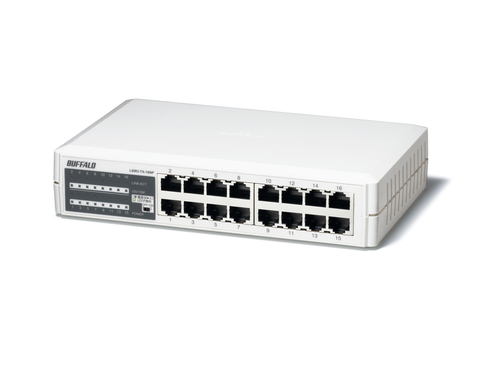

- TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black vsBuffalo LSW3-TX-16NP network switch Fast Ethernet (10/100) WhiteCompare specs

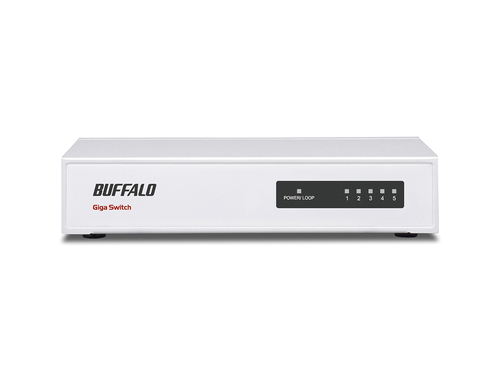

- TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black vsBuffalo LSW4-GT-5NS/WH network switch Gigabit Ethernet (10/100/1000) WhiteCompare specs
