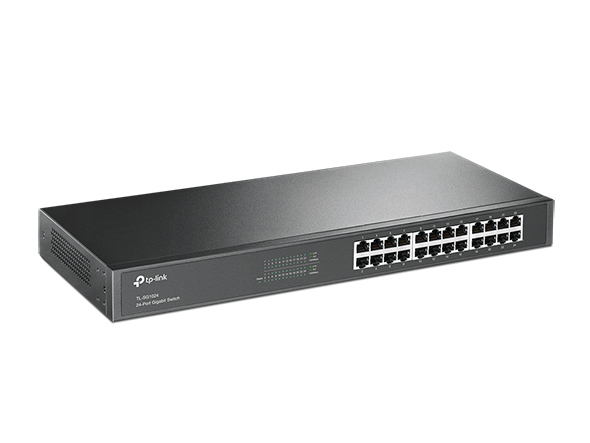

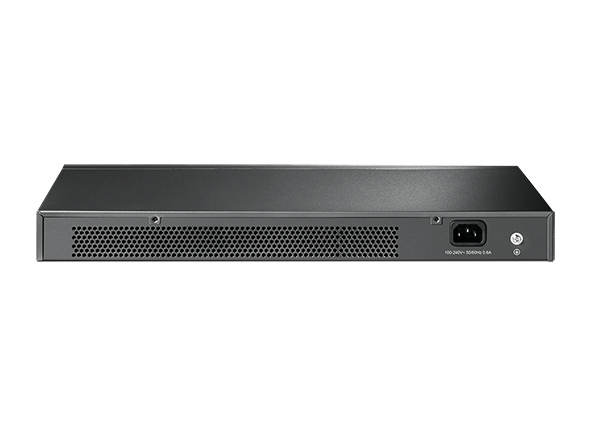

24-Port Gigabit Rackmount Network Switch
Model TL-SG1024EAN 8459730201010
54 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG1024
- Part numbers
- TL-SG1024, TL-SG1024 V11, TL-SG1024 KIT
- EAN / UPC
- 8459730201010, 845973020101, 3548383171414, 6935364020101 +9 more
- Also known as
- TP-Link 24-Port Gigabit Rackmount Network Switch
Specifications
54 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD, TCP/IP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 13.62 W |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Bandwidth | 48 Gbit/s |
| Connectivity LEDs | Yes |
| Dimensions (W x D x H) (imperial) | 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
| Heat dissipation | 46.44 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2.13 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
