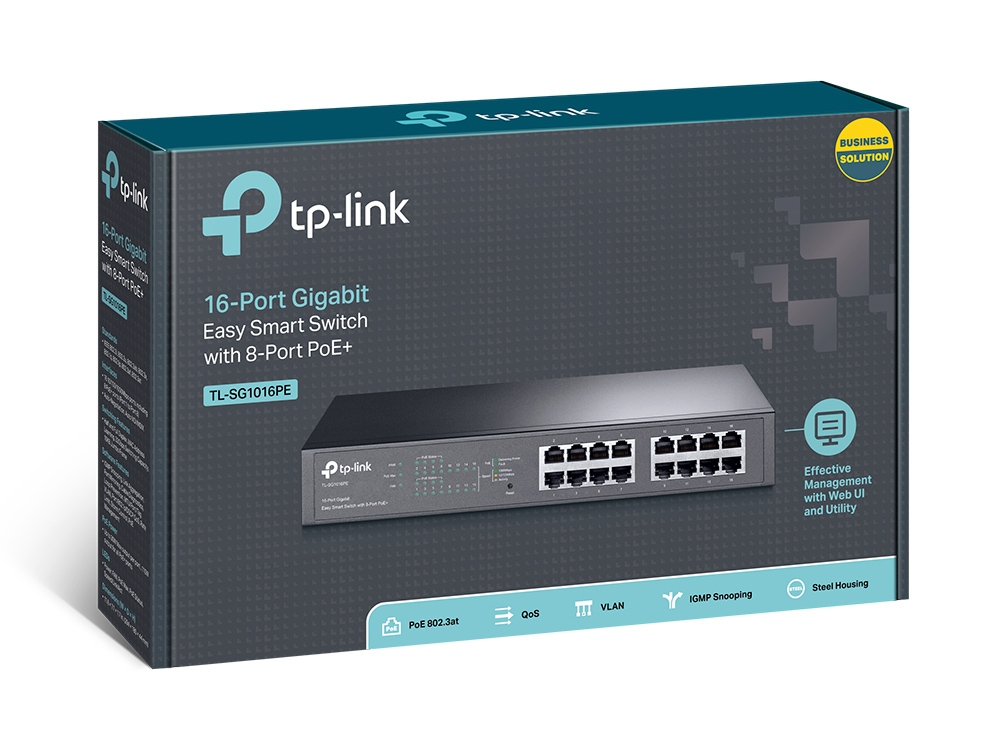

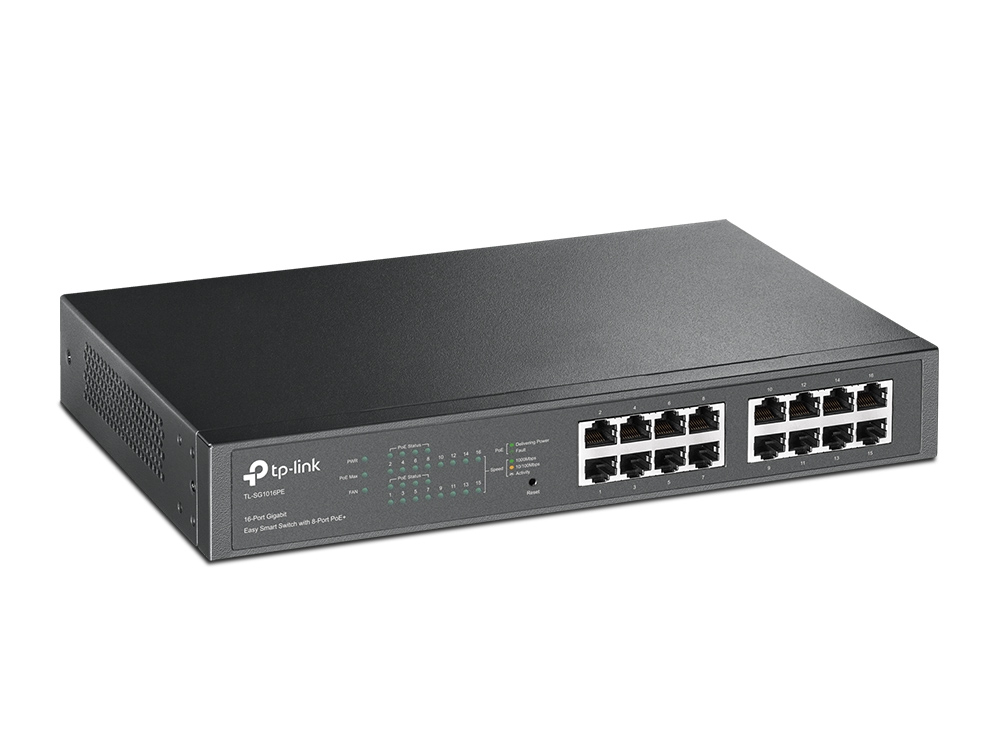

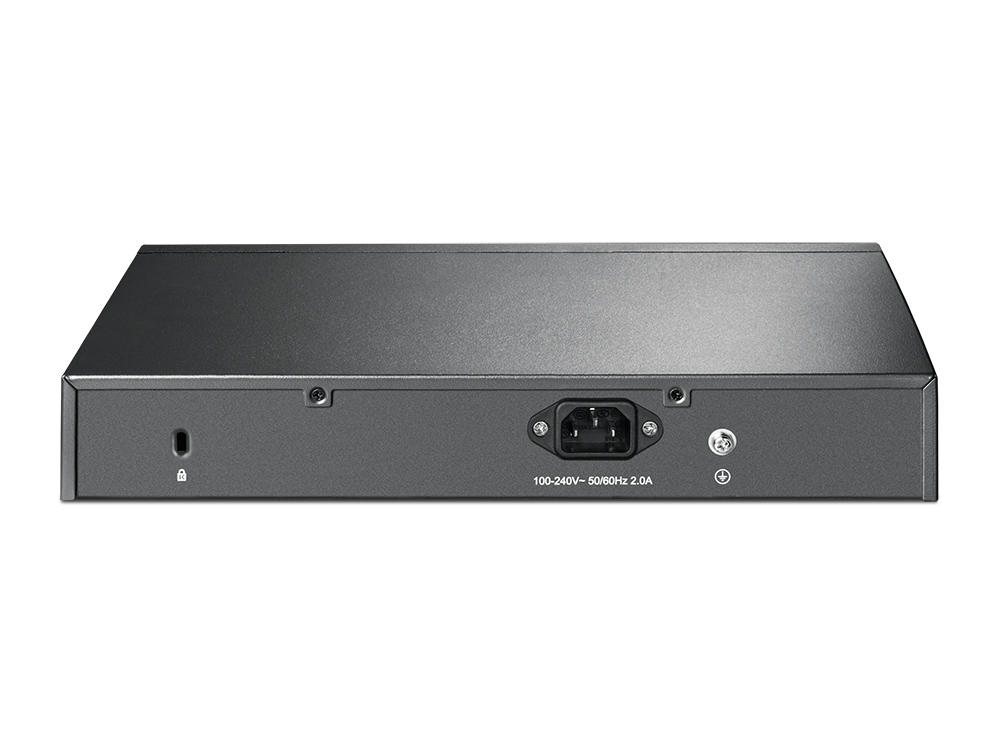

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
Model TL-SG1016PEEAN 5055309630460
68 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table8000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG1016PE
- Part numbers
- TL-SG1016PE, TL-SG1016PE V2
- EAN / UPC
- 5055309630460, 845973098865, 6935364082925, 6935364098865 +3 more
- Also known as
- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
Specifications
68 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows |
| Maximum cable length | 100 m |
Power
| Specification | Value |
|---|---|
| Power source | AC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 124.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 110 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Resource CD | Yes |
| Package width | 250 mm |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package weight | 2.26 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
What people say
Reviews & ratings
TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
No reviews yet
Be the first to tell others how TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
All network switch comparisons- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ vsTP-Link JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP SlotsCompare specs

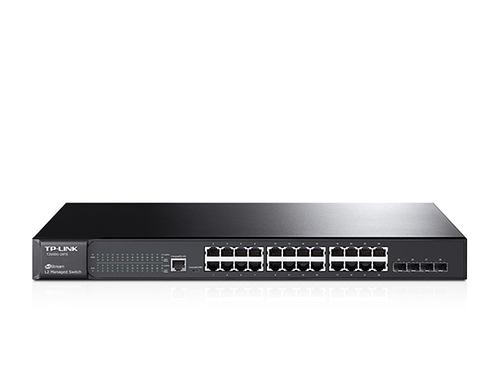

- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ vsTP-Link T2600G-28TS network switch Managed L2 Gigabit Ethernet (10/100/1000) BlackCompare specs

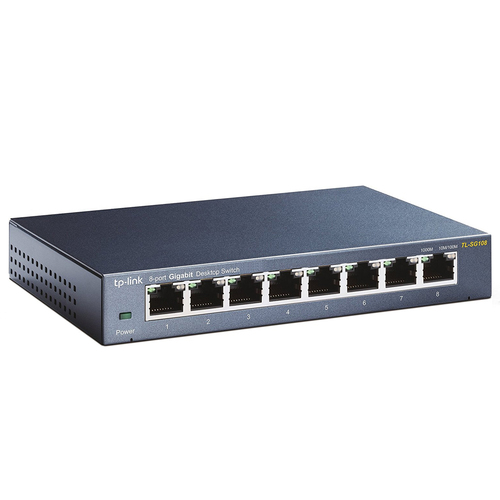

- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ vsTP-Link TL-SG108 V3.0Compare specs

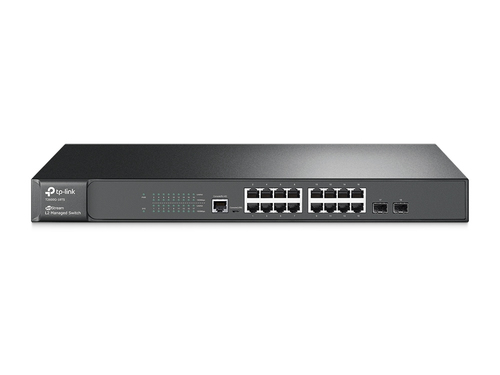

- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ vsTP-Link JetStream 16-Port Gigabit L2 Managed Network Switch with 2 SFP SlotsCompare specs

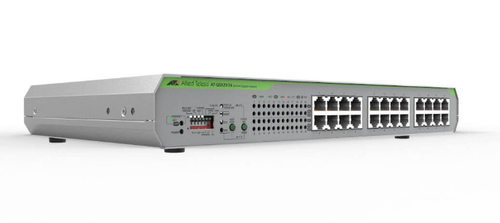

- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ vsAllied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) GreyCompare specs
- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ vsAllied Telesis AT-GS970M/18-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ vsD-Link DGS-1210-52/ME network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs

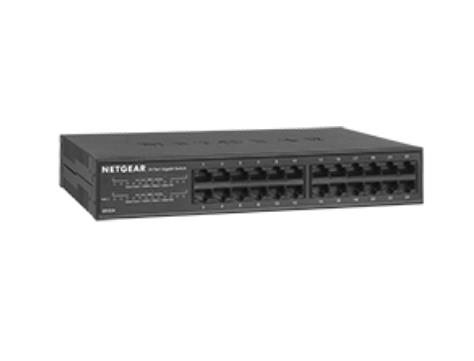

- TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ vsNETGEAR GS324-100NAS network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) BlackCompare specs
