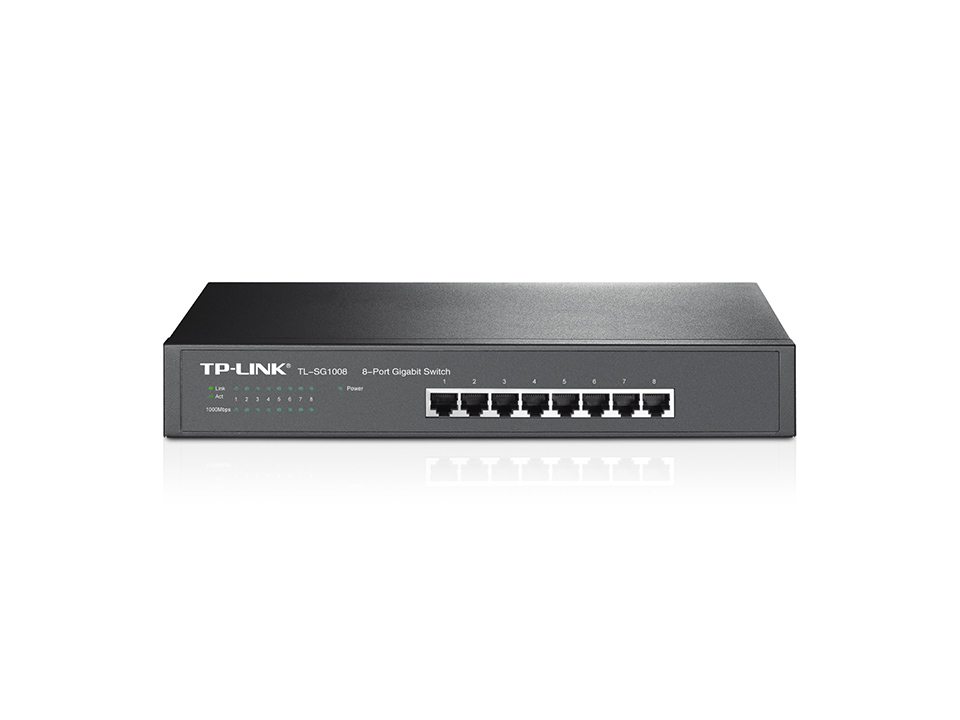

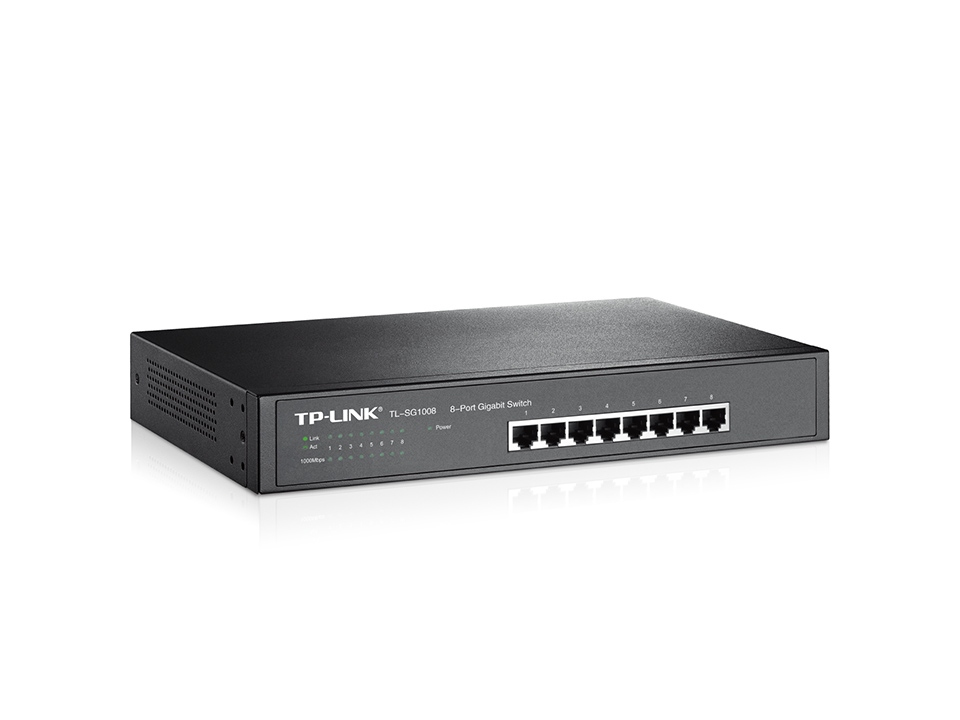

TP-Link 8-Port Gigabit Desktop/Rackmount Network Switch

TP-Link 8-Port Gigabit Desktop/Rackmount Network Switch

Model TL-SG1008EAN 7432349143163

55 specifications
  • Speed1 Gbit/s
  • ConnectivityWired
  • Type1U
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity8
See all specifications

Overview

Speed
1 Gbit/s
Connectivity
Wired
Type
1U
Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
8
Brand
TP-Link
Model
TL-SG1008
Part numbers
TL-SG1008, TL-SG1008 V9
EAN / UPC
7432349143163, 731215286490, 845973020019, 6935364020019 +14 more
Also known as
TP-Link 8-Port Gigabit Desktop/Rackmount Network Switch

Specifications

55 specifications in 15 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

Network

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Data transmission

MAC address table4000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity16 Gbit/s
Store-and-forwardYes
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes
Jumbo frames16000

Protocols

Supported network protocolsCSMA/CD, TCP/IP

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes

Power

Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)4.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Dimensions (WxDxH)294 x 180 x 44 mm
Connectivity technologyWired
Bandwidth16 Gbit/s
Input frequency50 - 60 Hz
Networking featuresGigabit Ethernet
Connectivity LEDsYes
Dimensions (W x D x H) (imperial)248.9 x 157.5 x 43.2 mm (9.8 x 6.2 x 1.7")

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)32 - 104 °F
Heat dissipation14.67 BTU/h

Weight & dimensions

Width294 mm
Depth180 mm
Height44 mm

Packaging content

Cables includedAC
Quick start guideYes

Packaging data

Package typeBox
Package width400 mm
Package depth250 mm
Package height80 mm
Package weight1.7 kg

Certificates

CertificationFCC, CE, RoHS

Logistics data

Harmonized System (HS) code85176990
