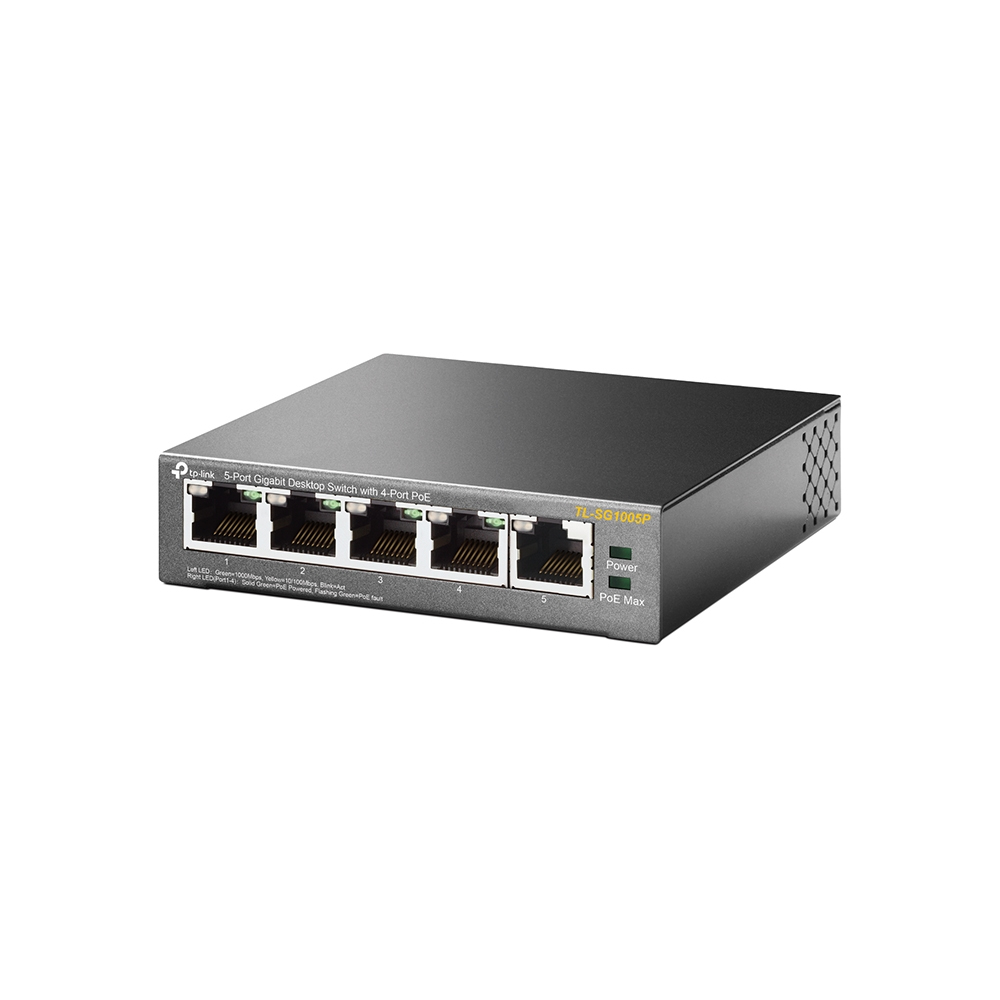

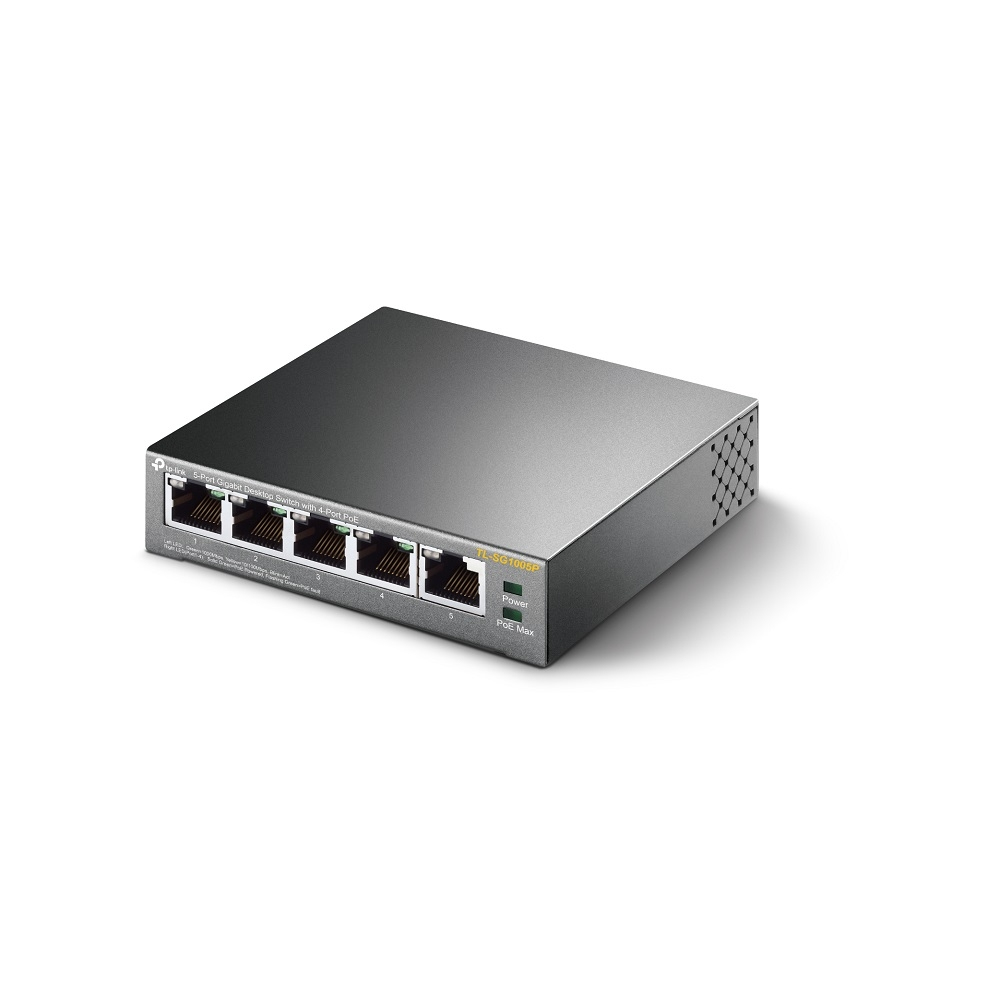

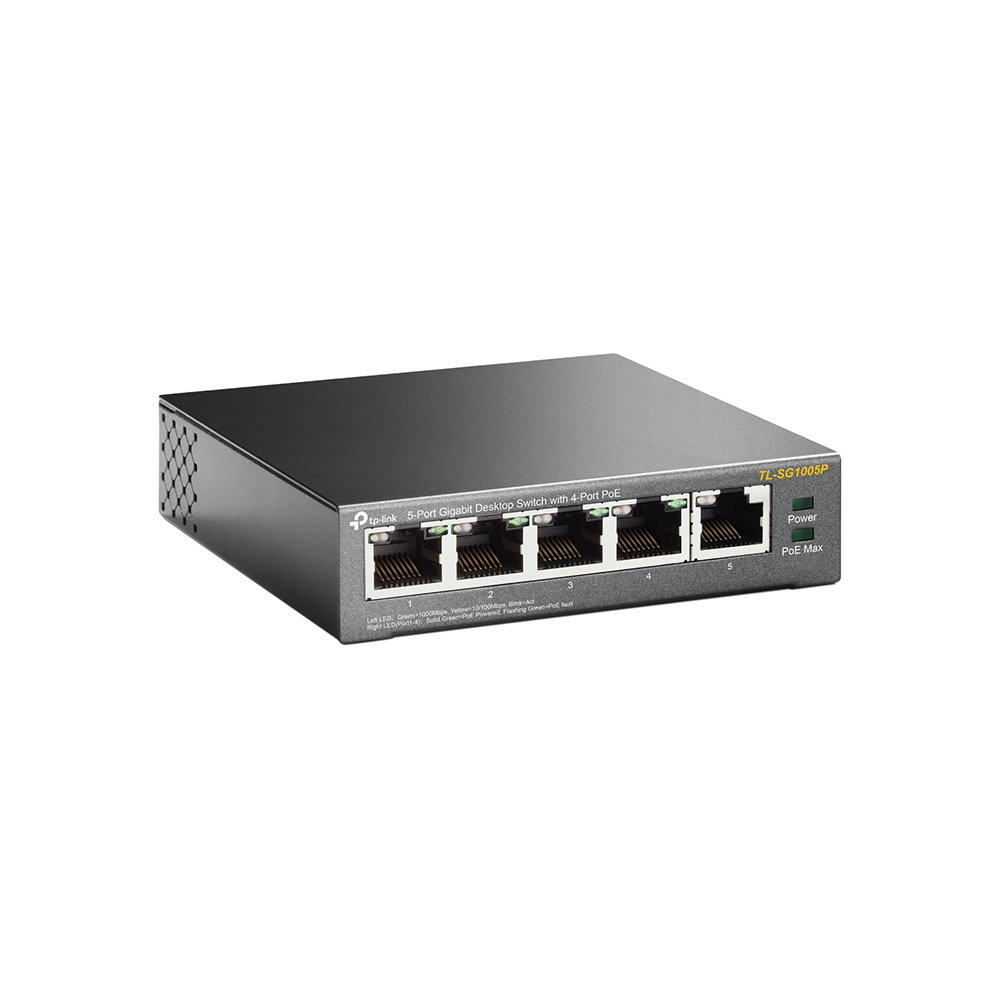

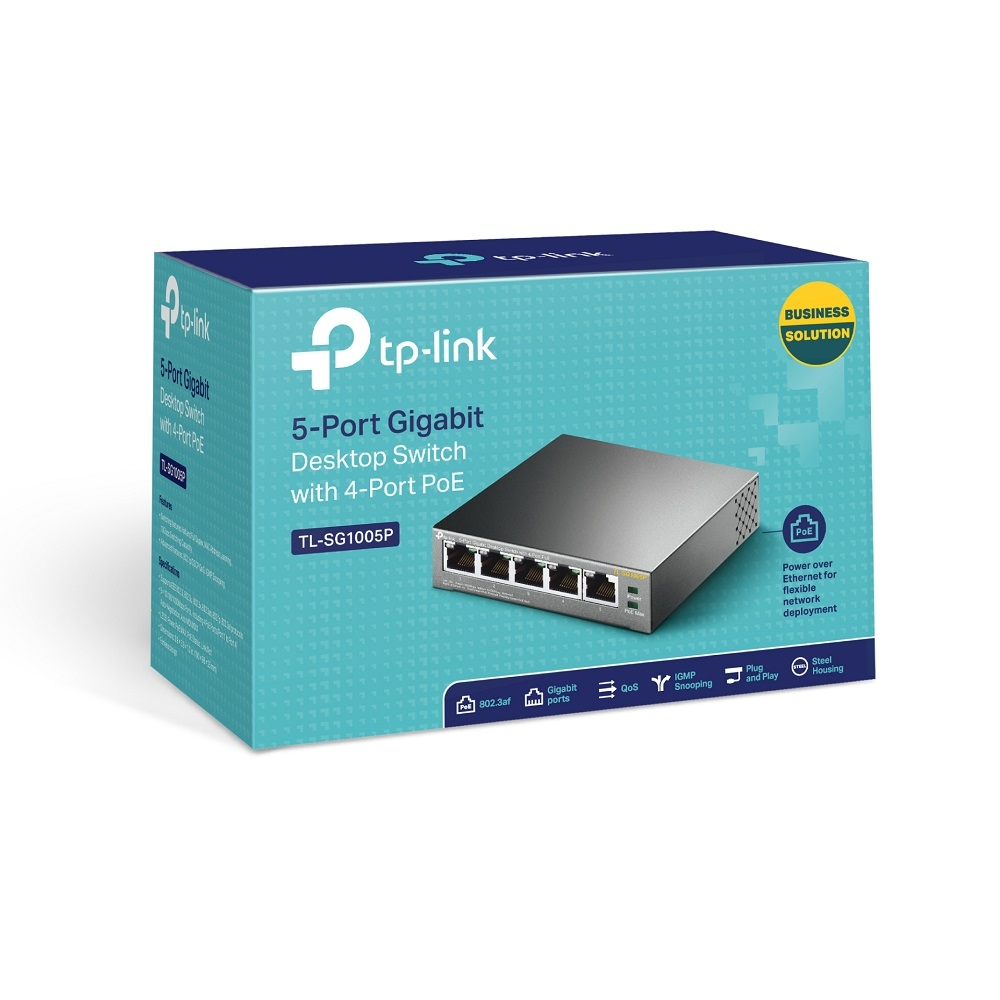

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port
Model TL-SG1005PPart no. TL-SG1005P V1EAN 6935364083229
60 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
- IGMP snoopingYes
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- IGMP snooping
- Yes
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SG1005P
- Part number
- TL-SG1005P V1
- EAN / UPC
- 6935364083229, 840460603928, 845973083212, 1210002616614 +2 more
- Also known as
- TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port
Specifications
60 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum cable length | 100 m |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 48 V |
| Input current | 1.25 A |
| Power consumption (max) | 64.44 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 56 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 219.87 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 761 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | FCC, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

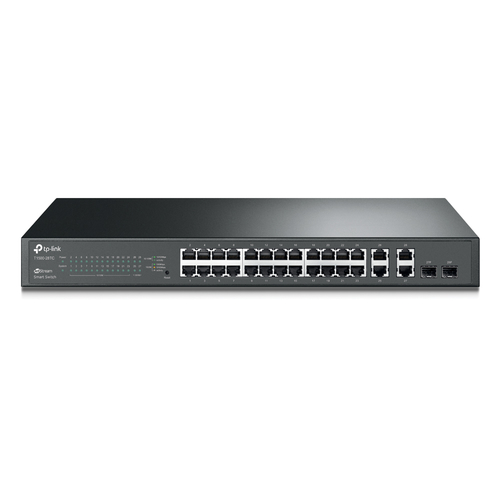

Compare any products- TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port vsTP-Link T1500-28TC network switch Managed L2 Fast Ethernet (10/100) BlackCompare specs
- TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port vsTP-Link T1500G-8T network switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs
- TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port vsTP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-PortCompare specs

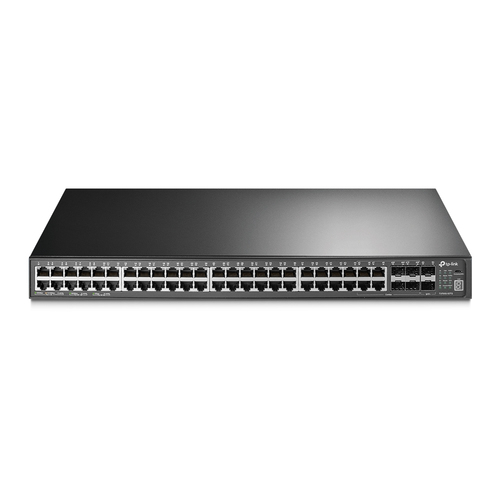

- TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port vsTP-Link JetStream 52-Port Gigabit Stackable L3 Managed Network SwitchCompare specs
- TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port vsLevelOne 26-Port Gigabit PoE Switch, 2 x SFP, 24 PoE Outputs, 802.3at/af PoECompare specs

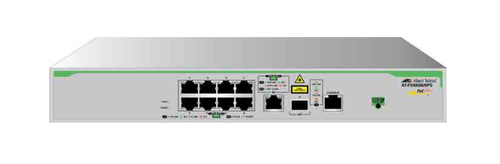

- TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port vsAllied Telesis AT-FS980M/9PS network switch Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) GreyCompare specs

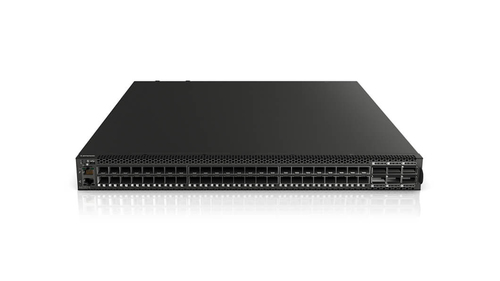

- TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port vsLenovo NE2572 Managed L2/L3 1U BlackCompare specs
