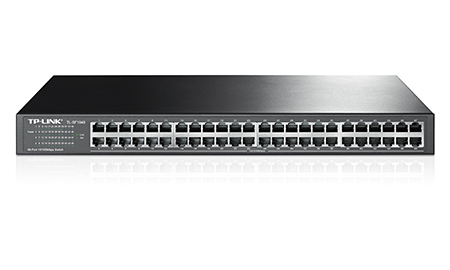

TP-Link TL-SF1048 v6

TP-Link TL-SF1048 v6

Model TL-SF1048 v6Part no. TL-SF1048 V6EAN 8459730202864

38 specifications
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • 10G supportNo
  • MAC address table8000 entries
  • Rack mountingYes
See all specifications

Overview

Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
48
10G support
No
MAC address table
8000 entries
Rack mounting
Yes
Brand
TP-Link
Model
TL-SF1048 v6
Part number
TL-SF1048 V6
EAN / UPC
8459730202864
Also known as
TP-Link TL-SF1048 v6 Unmanaged Fast Ethernet (10/100) Black

Specifications

38 specifications in 13 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G supportNo
Cable types supportedCat3, Cat4, Cat5, Cat5e
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes

Data transmission

MAC address table8000 entries
Switching capacity9.6 Gbit/s
Forwarding rate7.14 Mpps
Store-and-forwardYes

Design

Rack mountingYes
Product colourBlack
LED indicatorsYes

Performance

Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, 8 MAC OS, NetWare, UNIX Linux

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)9.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth180 mm
Height44 mm

Packaging content

Cables includedAC
Quick start guideYes
Rack mount kitYes

Packaging data

Rubber feetYes

Certificates

CertificationFCC, CE, RoHS
