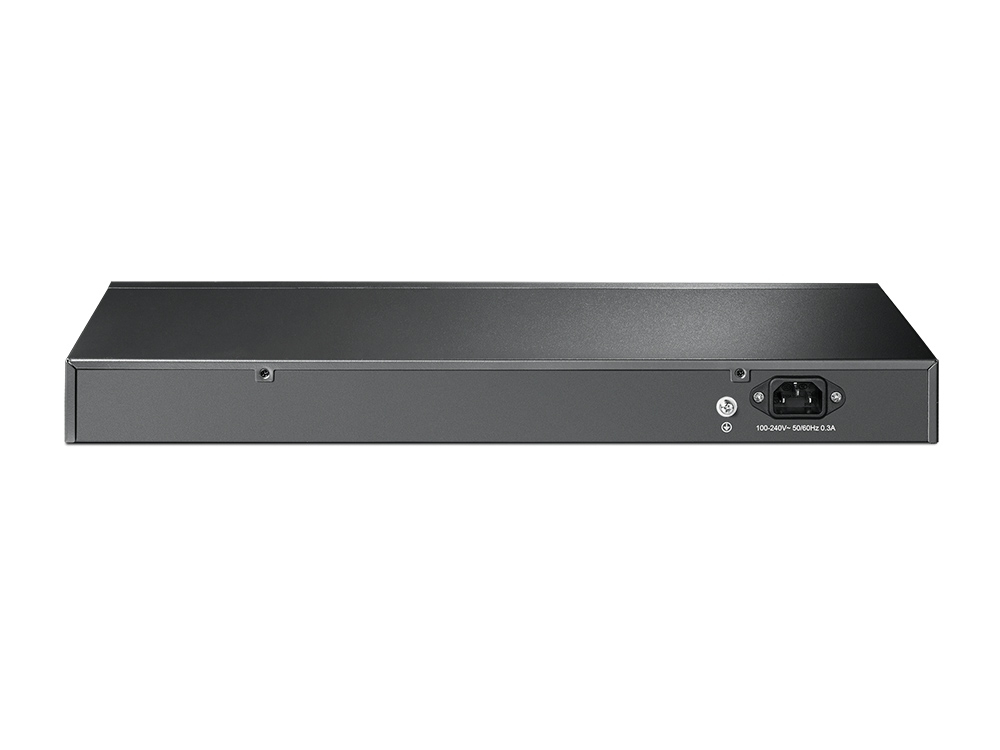

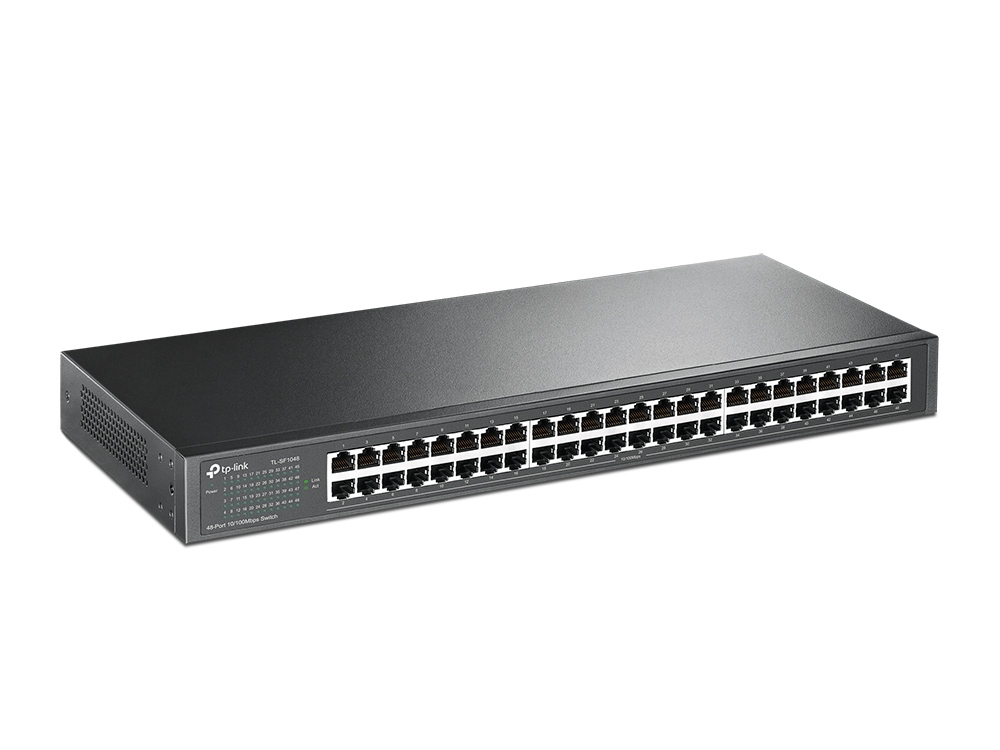

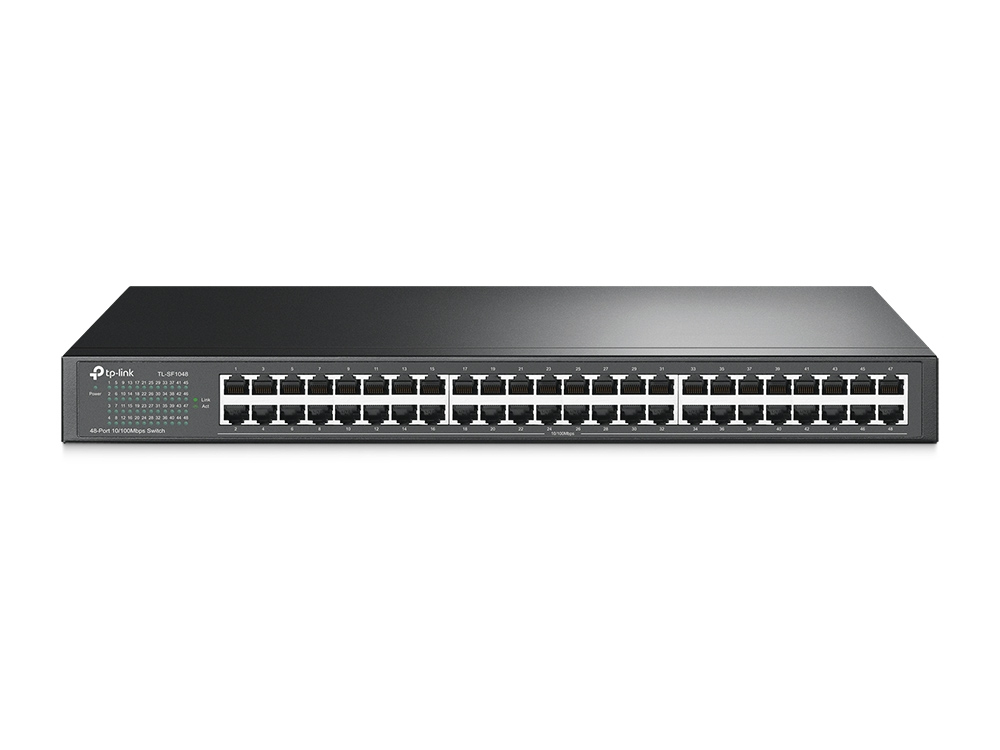

TP-Link 48-Port 10/100Mbps Rackmount Network Switch
Model TL-SF1048Part no. TL-SF1048(UN)EAN 5055309607141
51 specifications
- Type1U
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportNo
- MAC address table8000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SF1048
- Part numbers
- TL-SF1048(UN), TL-SF1048 V7, TL-SF1048 V5, TL-SF1048
- EAN / UPC
- 5055309607141, 631058211843, 845973020286, 6935364020286 +14 more
- Also known as
- TP-Link 48-Port 10/100Mbps Rackmount Network Switch
Specifications
51 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 48 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Cable types supported | Cat3, Cat5e, Cat4, Cat5 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 9.6 Gbit/s |
| Forwarding rate | 7.14 Mpps |
| Store-and-forward | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD, TCP/IP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 8, 7,Vista, XP, MAC OS, NetWare, UNIX, Linux |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 9.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 33.78 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 260 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2.62 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
