TP-Link 24-Port 10/100Mbps Desktop Network Switch
Model TL-SF1024MEAN 6935364092177
37 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
- Supported network protocolsCSMA/CD
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Supported network protocols
- CSMA/CD
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SF1024M
- Part numbers
- TL-SF1024M, TL-SF1024M V1
- EAN / UPC
- 6935364092177, 1210002616515, 6935364092160, 845973092160
- Also known as
- TP-Link 24-Port 10/100Mbps Desktop Network Switch
Specifications
37 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3x, IEEE 802.3, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 4.8 Gbit/s |
| Store-and-forward | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 9 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 222 mm |
| Depth | 126 mm |
| Height | 45 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 305 mm |
| Package depth | 232 mm |
| Package height | 75 mm |
| Package weight | 810 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHs |
Reviews & ratings
What people say
TP-Link 24-Port 10/100Mbps Desktop Network Switch
No reviews yet
Be the first to tell others how TP-Link 24-Port 10/100Mbps Desktop Network Switch works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare TP-Link 24-Port 10/100Mbps Desktop Network Switch
All network switch comparisons- TP-Link 24-Port 10/100Mbps Desktop Network Switch vsTP-Link 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ SwitchCompare specs
- TP-Link 24-Port 10/100Mbps Desktop Network Switch vsTP-Link JetStream 24-Port Gigabit Smart Network Switch with 4 SFP SlotsCompare specs
- TP-Link 24-Port 10/100Mbps Desktop Network Switch vsTP-Link T1600G-52PS network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
- TP-Link 24-Port 10/100Mbps Desktop Network Switch vsTP-Link JetStream TL-SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U BlackCompare specs
- TP-Link 24-Port 10/100Mbps Desktop Network Switch vsAllied Telesis AT-x230-28GP-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs

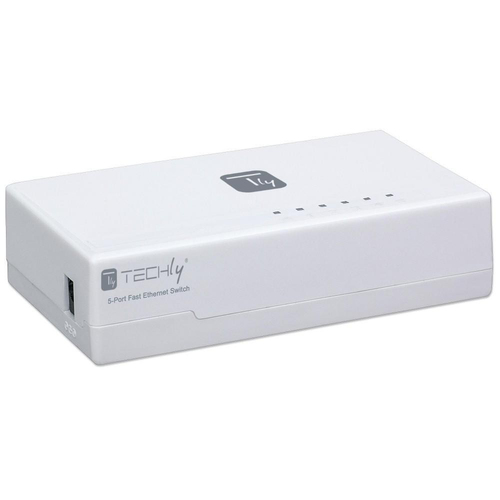

- TP-Link 24-Port 10/100Mbps Desktop Network Switch vsTechly Switch Hub 5 Ports 10/100 Mbps Fast Ethernet I-SWHUB-050TYCompare specs

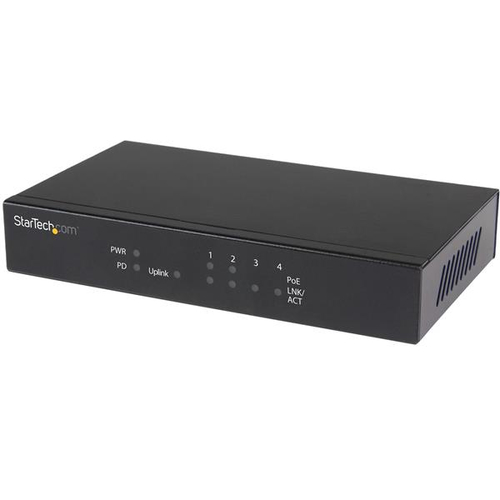

- TP-Link 24-Port 10/100Mbps Desktop Network Switch vsStarTech.com 5-Port Gigabit Ethernet Switch - PoE-Powered with 2x PSE/PoE PortsCompare specs

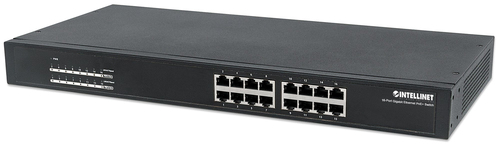

- TP-Link 24-Port 10/100Mbps Desktop Network Switch vsIntellinet 16-Port Gigabit Ethernet PoE+ Switch, 16 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, RackmountCompare specs
