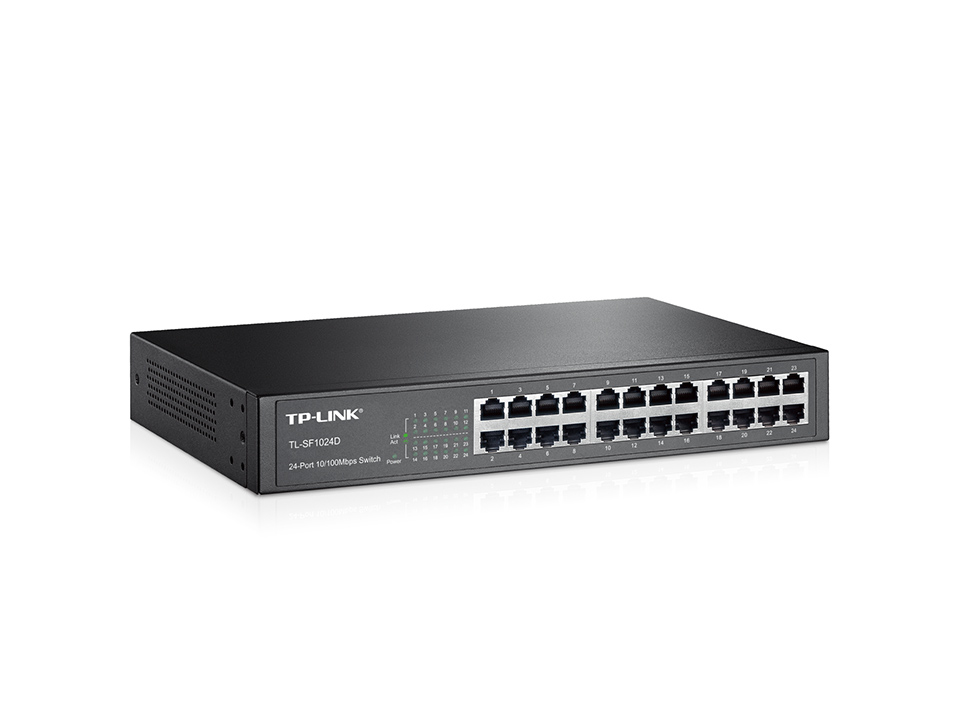

24-port 10/100Mbps Desktop/Rackmount Network Switch
Model TL-SF1024DPart no. TL-SF1024D(UN)EAN 6935364021498
48 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Type1U
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- TP-Link
- Category
- Network Switch
- Model
- TL-SF1024D
- Part numbers
- TL-SF1024D(UN), TL-SF1024D V3, TL-SF1024D V2, TL-SF1024D
- EAN / UPC
- 6935364021498, 071040164090, 191120009773, 191120098869 +18 more
- Also known as
- TP-Link 24-port 10/100Mbps Desktop/Rackmount Network Switch
Specifications
48 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 4.8 Gbit/s |
| Forwarding rate | 3.57 Mpps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD, TCP/IP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Link, Power |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 3.19 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 294 x 180 x 44 mm |
| Connectivity technology | Wired |
| Power requirements | 100 - 240VAC, 50/60Hz |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 10.88 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 400 mm |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package weight | 2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
