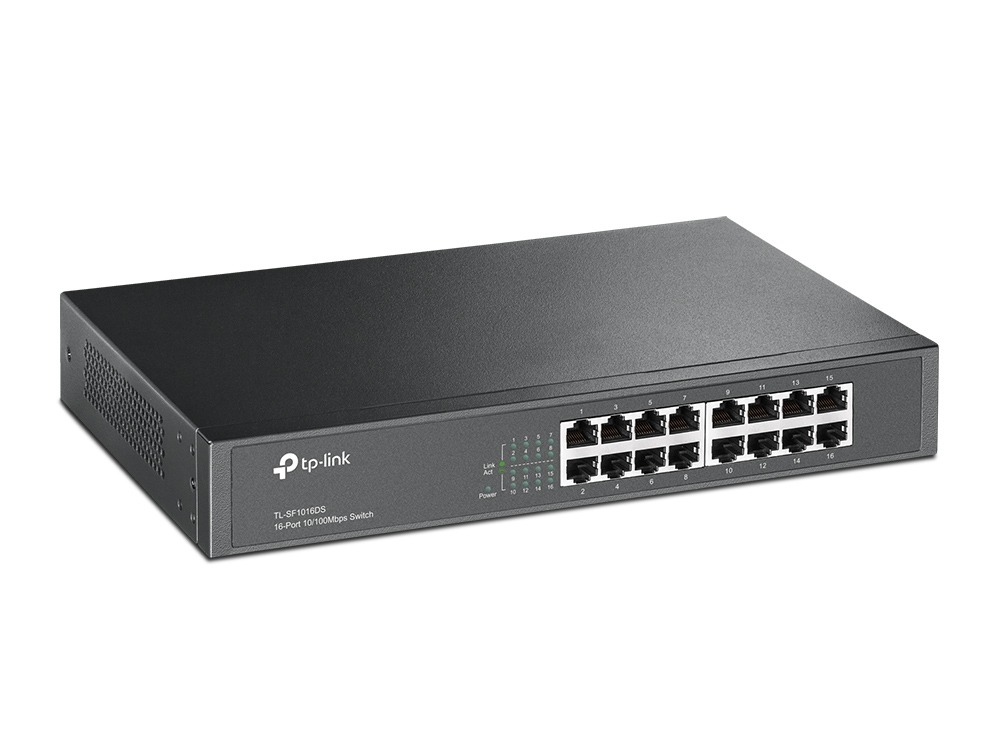

TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch

TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch

Model TL-SF1016DSPart no. TL-SF1016DS(UN)EAN 6935364021535

48 specifications
  • Speed0.1 Gbit/s
  • ConnectivityWired
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity16
  • Copper ethernet cabling technology10BASE-T, 100BASE-TX
See all specifications

Overview

Speed
0.1 Gbit/s
Connectivity
Wired
Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
16
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Brand
TP-Link
Model
TL-SF1016DS
Part numbers
TL-SF1016DS(UN), TL-SF1016DS V4, TL-SF1016DS V3, TL-SF1016DS
EAN / UPC
6935364021535, 809185825190, 845973020880, 6935364020880 +6 more
Also known as
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch

Specifications

48 specifications in 14 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

Network

Networking standardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexYes
Half duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Data transmission

MAC address table8000 entries
Supported data transfer rates10/100 Mbps
Switching capacity3.2 Gbit/s
Forwarding rate2.38 Mpps
Store-and-forwardYes
Maximum data transfer rate0.1 Gbit/s
Jumbo frames supportYes
Jumbo frames2000
Packet buffer memory2 MB

Security

MAC address filteringYes

Protocols

Supported network protocolsCSMA/CD, TCP/IP

Design

Rack mountingYes
Product colourBlack
LED indicatorsLink, Power

Power

Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)2.06 W

Other features

Dimensions (WxDxH)294 x 180 x 44 mm
Connectivity technologyWired
Power requirements100 - 240VAC, 50/60Hz
Wi-FiNo

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation2.06 BTU/h

Weight & dimensions

Width294 mm
Depth180 mm
Height44 mm

Packaging data

Package width400 mm
Package depth250 mm
Package height80 mm

Certificates

CertificationFCC, CE, RoHS

Logistics data

Harmonized System (HS) code85176990
